X4600

Model

X4500

X4600

CPU

Qualcomm Dual A53 @1.0 GHz

Operating Frequency

5180-5825MHz  (restricted by country of operation)

5.925-7.125GHz

Wireless Standards

Wi-Fi 6

Wi-Fi 6e

Channel Width

20|40|80|160 MHz

Proprietary Physical Layer

4x4 MU-MIMO/OFDMA based on 802.11ax underlying technology

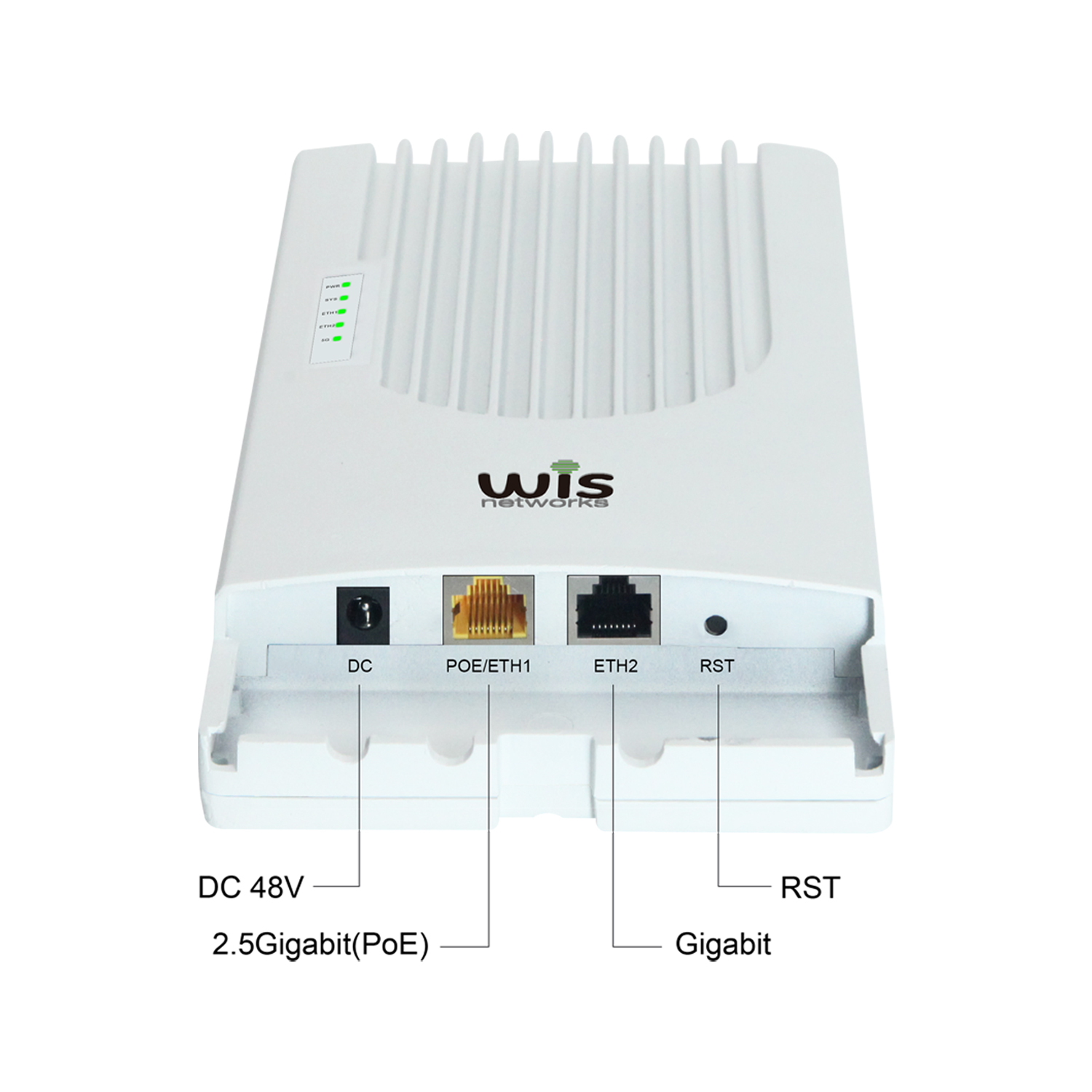

Networking interface

1*2.5Gigabit Ethernet + 1*Gigabit

Transmit Power Range

+3 to +26dBm (combined, to regional EIRP limit) (1 dB interval)

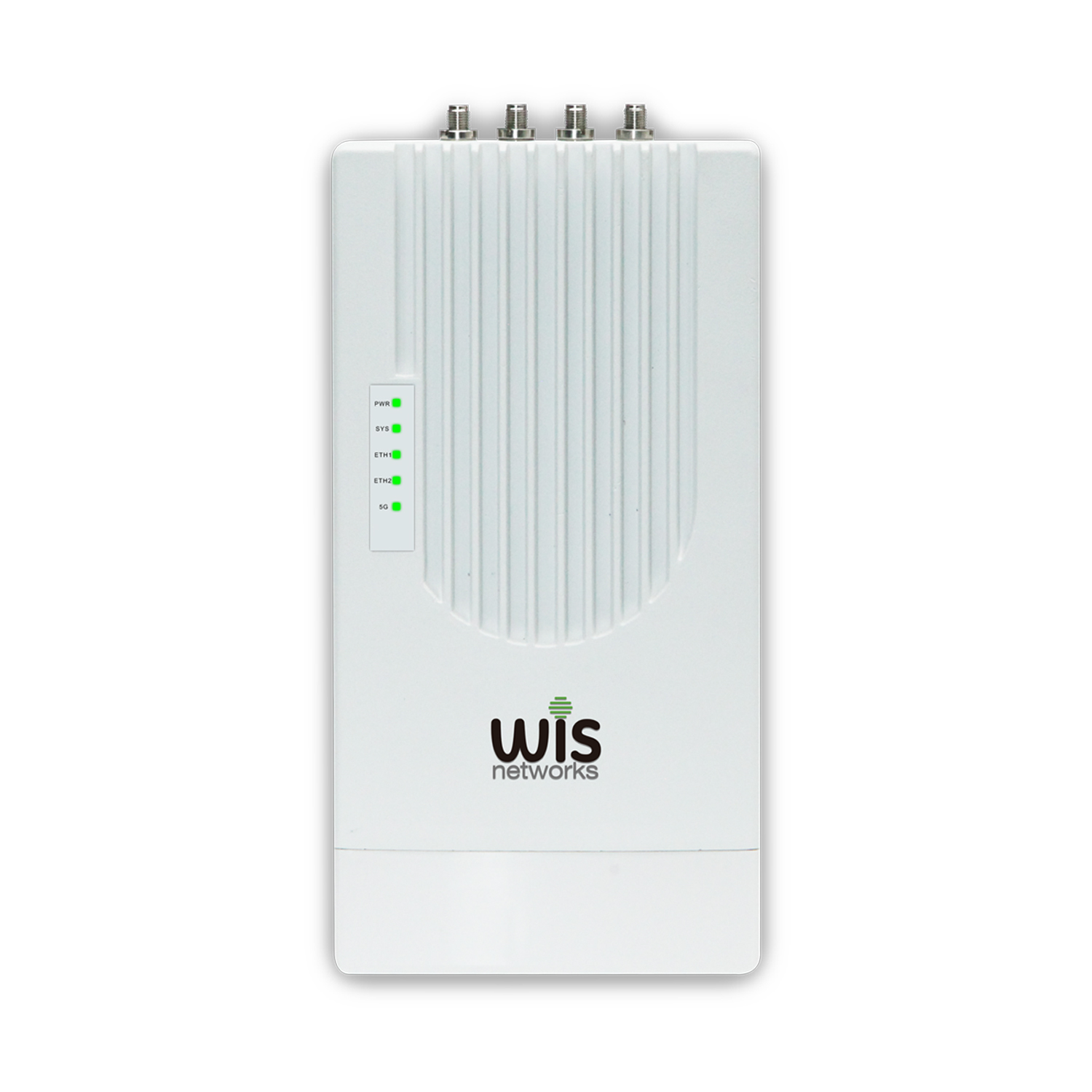

Antenna Connector

4*RPSMA (External antenna)

LEDs

1*Power, 1*SYS, 1*Wi-Fi

Power Supply

802.3af/at, or DC 12-48V

Power Consumption

<15W

Surge suppression

8KV

Weatherproof Enclosure

IP65

Size

250*120*30mm

Weight

1.5 kg

Temperature

-30°C to 60°C

Working mode

AP WDS、Client WDS

Network Mode

Bridge/Router

Firewall

Port Forwarding ,DMZ,ACL Filtering

Wireless Security

WPA-PSK,WPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE,WPA3-SAE

VLAN

802.1Q with 802.1p priority

DHCP

DHCP Server、DHCP Client

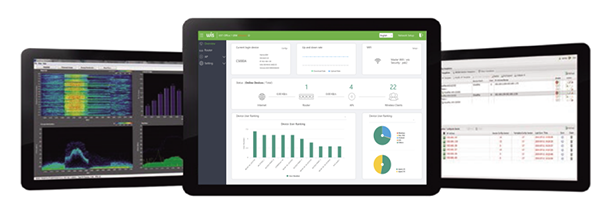

Network Management

HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069

QoS (Quality of Service)

Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, broadcast, multicast, and station priority

ARQ

yes

Nominal Receive Sensitivity

(w/FEC) @20 MHz Channel

MCS 0 = -95 dBm to MCS 11

(1024 QAM-5/6) = -64 dBm (per chain)

MCS 0 = -95 dBm to MCS 11

(1024 QAM-5/6) = -64 dBm (per chain)

Nominal Receive Sensitivity

(w/FEC) @40 MHz Channel

MCS 0 = -92 dBm to MCS 11

(1024 QAM-5/6) = -61 dBm (per chain)

MCS 0 = -92 dBm to MCS 11

(1024 QAM-5/6) = -61 dBm (per chain)

Nominal Receive Sensitivity

(w/FEC) @80 MHz Channel

MCS 0 = -89 dBm to MCS 11

(1024 QAM-5/6) = -58 dBm (per chain)

MCS 0 = -89 dBm to MCS 11

(1024 QAM-5/6) = -58 dBm (per chain)

Nominal Receive Sensitivity

(w/FEC) @160 MHz Channel

MCS 0 = -86 dBm to MCS 11

(1024 QAM-5/6) = -55 dBm (per chain)

MCS 0 = -86 dBm to MCS 11

(1024 QAM-5/6) = -55 dBm (per chain)

Modulation Levels (Adaptive)

MCS 0 (BPSK) to MCS 11(1024 QAM-5/6)

MCS 0 (BPSK) to MCS 11(1024 QAM-5/6)
