Product Overview

The WOAP-AX Access Point is one of the wireless products fully developed by WIS Networks. The device supports 802.3af/at PoE In power supply.
With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, providing 574Mbps at 2.4G, and 2402Mbps at 5G.

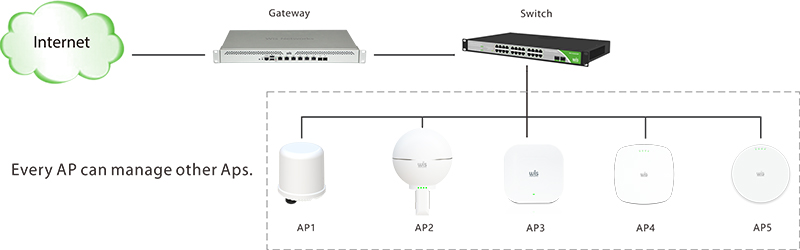

Every AP can manage other APs.

Every AP has the function of independent Management. Choose one AP as the master to control the other APs in the same LAN
.

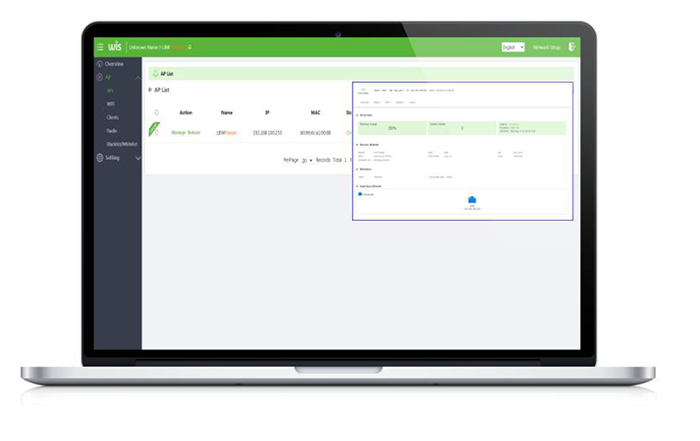

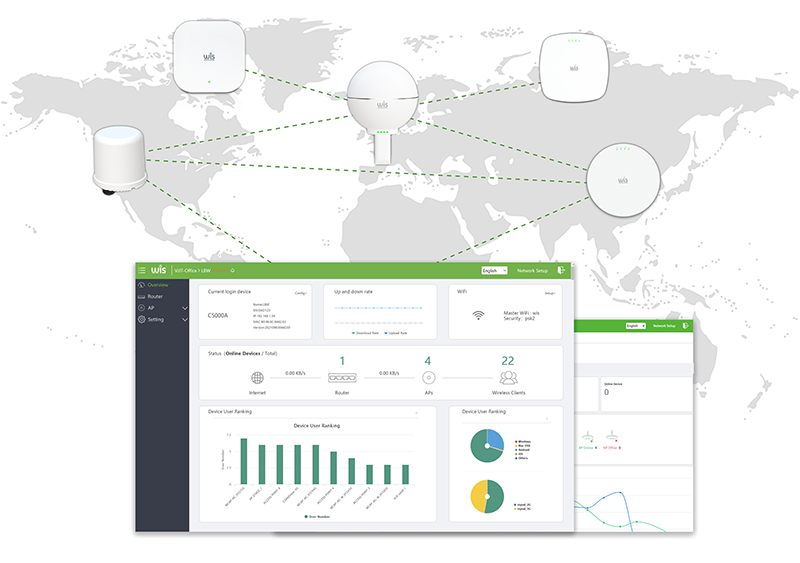

Easy-to-use Interface

No special training is required to operate the controller system. The main parameters of one/multi-WU\N networks is available
on the dashboard. Simple design would also help to easily realize the real-time status monitoring and customized

One minute network configuration

Using the intelligent centrally management between Ac and AP can quickly synchronize wireless configuration into each AP to
complete a unified construction of the wireless network.

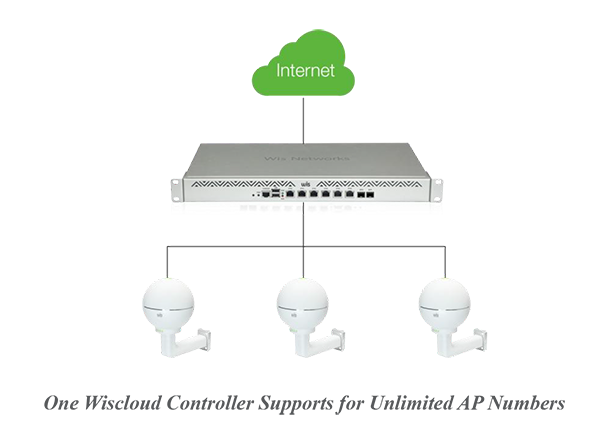

Unlimited AP Numbers

Unlimited AP numbers controlled by WisCloud controller would provide best experience for customers to plan and expand the WU\N networks.

Enterprise Level Radio Chipset

The high speed 1.2GHz Qualcomm CPU and 512MB DDR makes WisCloud access points much powerful to provide a stable
connectivity and multifunctional wireless networks.

Supports Fat AP & Fit AP Mode

All wireless network solution is completed by integrated fit ap and controller. While fat AP is quite perfect for users who owns a
few APs.working with standalone. Fit AP is more suitable for enterprise / ISP level wireless network and massive deployment.

Support for Standard 802.3af/at

WisCloud Access Point is able to be supplied power 802.3af PoE technology and make it more flexible to deploy the device in
indoor ceiling environment.

Various APs Optional

meet different requirements from customers, we provide corresponding AP with different feature parameters including
frequency, speed, tx power and installation method etc

Physical Characteristics
Product code	WOAP-AC
Architecture	MIPSBE
CPU	QCA9563
CPU nominal frequency	775MHz
Size of RAM	128MB
Storage size	16MB
Storage type	Flash
Ethernet port	1x Gigabit RJ45
Tested ambient temperature	-40°C to 50°C
Mechanical
Wireless 2.4 GHz Max data rate	450 Mbps
Wireless 2.4 GHz number of chains	3
Wireless 2.4 GHz standards	802.b/g/n
Antenna gain dBi for 2.4 GHz	5dBi
Wireless 2.4 GHz chip model	QCA9563
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5GHz Max data rate	867 Mbps
Wireless 5GHz number of chains	2
Wireless 5 GHz standards	802.a/n/ac
Antenna gain dBi for 5 GHz	5dBi
Wireless 5GHz chip model	QCA 9886
Wireless 5 GHz generation	WI-Fi 5
