Product Overview

The WIS-SF800P is the world fifirst voltage-adjustable PoE switch, compatible with IEEE 802.3at. You can easily adjust the PoE output with
12VDC/24VDC/48VDC slide the small switch on the front panel, thus making it easy to power up different type PoE access point.

Extremely Wide Voltage Scale

● Adjustable 12V/24V/48V Output
● Support 802.3at and passive PoE
● Compatible with all PoE device
● Up to 100meters PoE length

Over Voltage Protection

● Auto detect PD voltage
● Protect device from over-voltage
● Flashing alert for non-PoE

Output Power Indicator

● LEDs indicator for power consumption
● LEDs indicator for power consumption
● Easy to know the system status

Hardware VLAN Feature

● VLAN on/off switch
● Uplink port design
● Avoid broadcast storm
● Client isolation for secure data

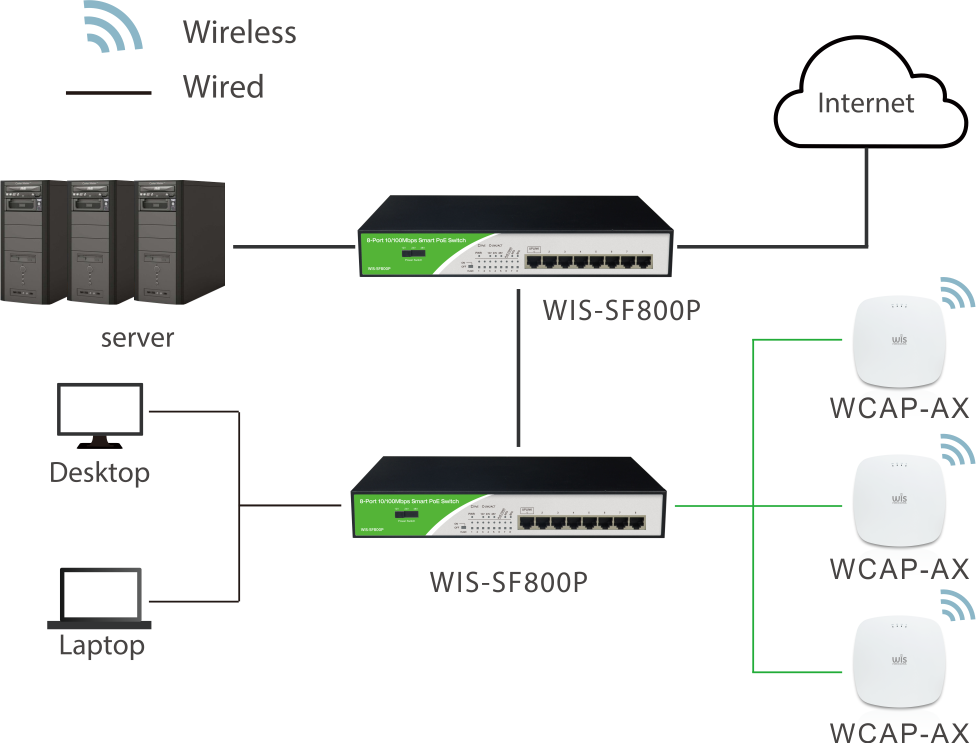

Network Topology

Specification
Model	WIS-SF800P
Ports	8x 10/100Base-T Ethernet
PoE Ports	1~8
PoE Method	4/5（+）7/8（-）
PoE Output	DC: 12/24/48V Adjustable
PoE Power	120W
VLAN	Controlled by On/Off Switch VLAN On，Port 2~8 isolation，Port 1 uplink VLAN off，Port 1-8 Interworking
Forward Type	Store and foward
Capacity	1.6G
MAC Table	2K
Jumbo Frame	2KB
Buffer	768Kbit
PPS	1.19Mpps
Input Voltage	AC 100-240V 50-60Hz
Working Temperature	0℃~40℃
Storage Temperature	-40℃~70℃
Working Humidity	10%~90% RH non-condensing
Storage Humidity	5%~90% RH non-condensing
Dimension	12817945mm
Weight	1.5kg
LED	PWR、Voltage、PoE CONS、LNK/ACT、PoE
Cable	10BASE-T： Cat 3、4、5 UTP （≤100m） 100BASE-TX：Cat 5 and up UTP（≤100m）
