WIS-PPB-BT

802.3bt PoE Powerbank
PoE Output
802.3af/at/bt 24V Gigabit PoE
USB-A Output
5V/3A,9V/2A,12V/1.5A 18W (max.)
Battery Type
Lithium Polymer Battery
Battery Capacity
26400mAh/ 98Wh
Recharging Time
3Hrs
Dimensions
215*126.8*25mm
Weight
1kg
  • WIS-PPB-BT
  • WIS-PPB-BT
  • WIS-PPB-BT
  • WIS-PPB-BT
  • Features

  • Downloads

Product Overview

❆ Power Bank is the perfect accessory for any WISP technician or wireless engineer. Power your devices with
    USB-A, USB-C, 24V PoE, and PoE++ (802.3bt).
❆ Carry 26400 mAh of power with you up a tower to remotely power your devices.
❆ The Power Bank is temperature resistant and also features protection from various
factors such as input overvoltage,

output overvoltage, short circuit, and incorrect insertion.

Product Specifications

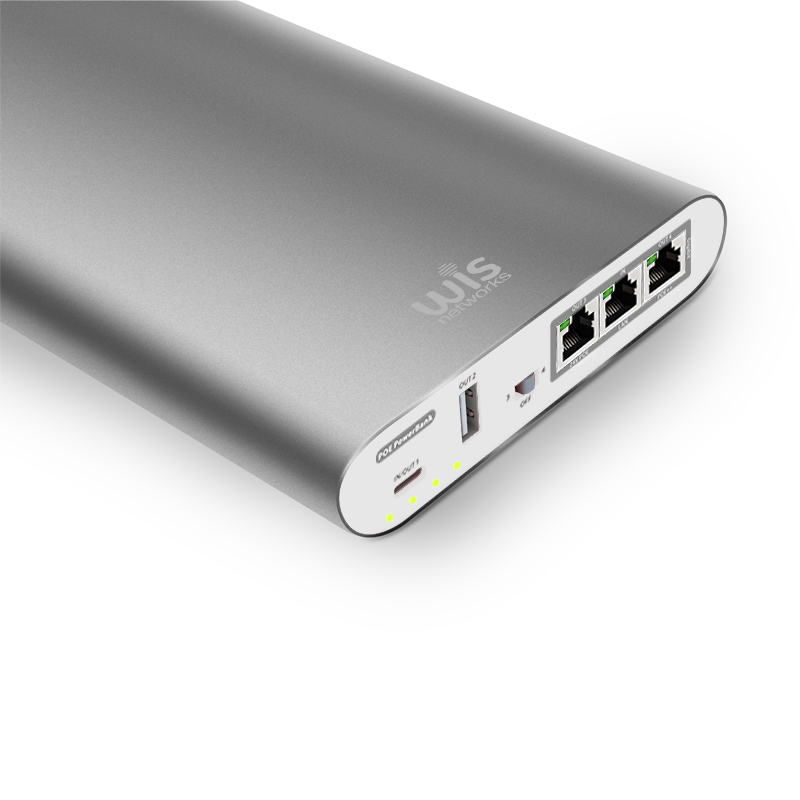

❆ USB-C (In/ Out)
❆ USB-A (Out)
❆ 24V Gigabit PoE(Out)
❆ LAN (In)
❆ PoE++ 802.3af/at/bt (Out) LAN (RJ45 Gigabit)
❆ PoE Output: 802.3af/at/bt 24V Gigabit PoE
❆ USB-A Output: 5V/3A,9V/2A,12V/1.5A 18W (max.)
❆ LED: Battery Indicator Light (100%, 75%, 50%, 25%) USB-C (Input/ Output)
❆ USB-C Input: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A
❆ USB-C Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A,PPS 3.3- 21V/3A
❆ Battery Type: Lithium Polymer Battery
❆ Battery Capacity: 26400mAh/ 98Wh Recharging Time: 3Hrs



User Instructions

❆  Use provided USB-C wall charger and USB-C to USB-C cable to connect VenVolt to USB-C charger. Be sure to fully
     charge your VenVolt before your first use. The battery is shipped under 30% due to regulation requirements.
❆  Charging typically takes 3 to 4 hours to fully charge

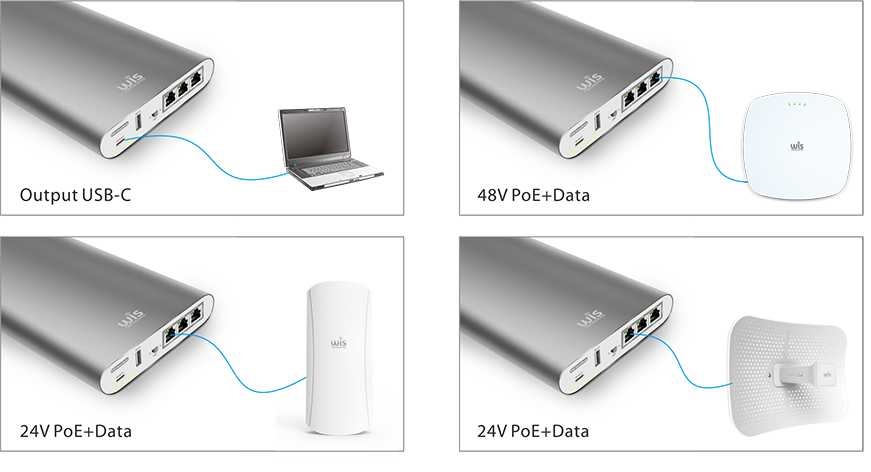

❆  Charging device PoE Device
❆  To power a PoE device use your own ethernet cable to connect from VenVolt to your device.
❆  Move select switch from Off to 4 for PoE++ port
❆  Move select switch from Off to 3 for 24V Gigabit PoE port
❆  USB-C port is disabled if switch is set to 3 or 4
❆  Charging laptop or phone with USB-C port
❆  To power a USB device use included cable or your own cable
❆  Move select switch to Off
❆  Battery will automatically detect a device has been connected and charging will begin.
❆  Charging a device via the USB-A port
❆  The USB-A port is on when select switch is set to 3 or 4. When the select switch is set to OFF only the USB-C port is active.

Safety Precautions

❆  Do not expose the product to fire or other high-temperature environments. The recommended usage temperature is between 14 degrees F to 113 degrees F.
❆  Do not expose the product to water
❆  Stop using is any of the following conditions occur: electrolytic liquid leakage, overheating, color change, or other unusual conditions.
❆  Do not short circuit the positive (+) and negative (-).

Maintenance

❆  Do not expose the VenteVolt 2 to direct sunlight for long periods of time or leave it any place with high temperature or high humidity.
❆  Discharge and recharge the VenVolt2 periodically if you don’t plan to use it for an extended period of time.
