WIS-PPB-AT

802.3af/at POE PowerBank
Input voltage
12.6V
Input electric current
3A
Recharging time
4hrs
USB
5V/3A
DC
12V/2A
POE
24V/1A
POE
802.3af/at (Gigabit)
  • WIS-PPB-AT
  • WIS-PPB-AT
  • WIS-PPB-AT
  • WIS-PPB-AT
  • WIS-PPB-AT
  • WIS-PPB-AT
  • Features

  • Downloads

Product features

Battery life:  In the conditions of full power consumption of 10W,battery life is larger than 12 hours.

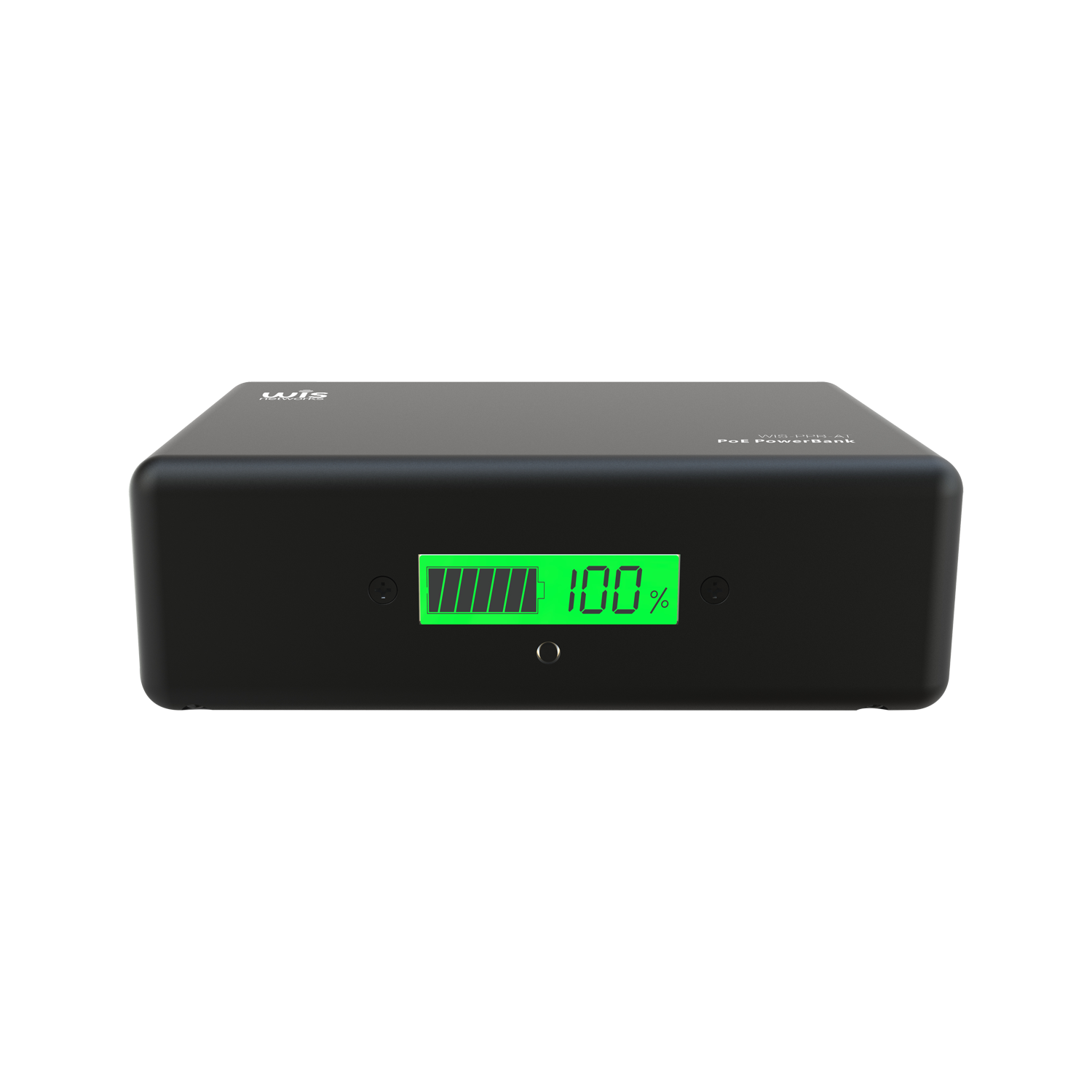

Battery status display:  Constantly power monitoring which is showing clearly.
Interface output:  USB/DC/POE can output simultaneously.
Strong compatibility:  Support Cellphone, laptop, camera, wireless bridge, AP, Router etc.
Safety design:  Overcharge, over current and short-circuit protection.

User Guide

1. Check the battery percentage on the display screen before use. If there is no power,please charge it with the standard 12.6V DC adapter.
2. When using the 12V output,please use the cable directly.
3. When charging with USB 2.0,please turn the switch to 24V or 48V for 5V output.
4. When using 24V output to power on the product,please turn the switch to 24V,and connect the product by network cable for 24V output.
    The LAN port is connected to the computer with the network cable. 12V output and USB can be used at the same time.
5. When using 48V output to power on the product,please turn the switch to 48V,and connect the product by network cable for 48V output.
    The LAN port is connected to the computer with a network cable. 12V output and USB can be used at the same time.

Using Instruction



Specification

Size:135*100*43mm
Weight:0.6kg
Battery capacity:Li-lon 7500mAh  12.6V/94.5Wh
Working temperature:-10°C to 60°C

Application



Download
