Product Overview

The WisCloud Access Point is the innovative series of products with remarkable performance in their features. All configur
ation and management is centrally and effectively operated by the same set of WisCloud Controller. It would be much easi
er to monitor the massive APs and more efficient to maintain the enterprise networks

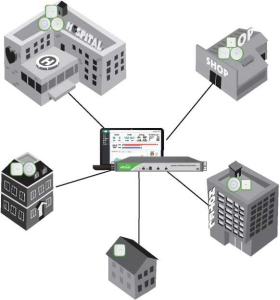

Integrated Fat/Fit AP + AC Architecture

WisCloud Controller is refined designed to suit all Wisnetworks enterprise class AP equipments.
A single controller can centrally supervise and manage the WiFi networks and multiple,
distributed APs could be taken care and work in a more effective way.

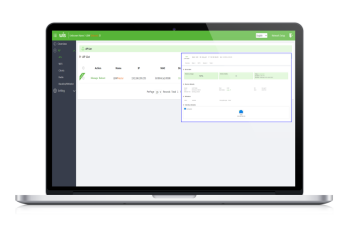

Easy-to-use Interface

No special training is required to operate the controller system. The main parameters of one/multi-WU\N networks is
available on the dashboard. Simple design would also help to easily realize the real-time status monitoring and customized

One minute network configuration

Using the intelligent centrally management between Ac and AP can quickly synchronize wireless configuration into each AP
to complete a unified construction of the wireless network.

Unlimited AP Numbers

Unlimited AP numbers controlled by WisCloud controller would provide best experience for customers to plan and
expand the WU\N networks.

Enterprise Level Radio Chipset

The high speed 1.2GHz Qualcomm CPU and 512MB DDR makes WisCloud access points much powerful to
provide a stable connectivity and multifunctional wireless networks.

Supports Fat AP & Fit AP Mode

All wireless network solution is completed by integrated fit ap and controller.
While fat AP is quite perfect for users who owns a few APs.working with standalone.
Fit AP is more suitable for enterprise / ISP level wireless network and massive deployment.
WisCloud AP supports both alternatives.

Support for Standard 802.3af/at

WisCloud Access Point is able to be supplied power 802.3af PoE technology and make it more flexible to
deploy the device in indoor ceiling environment.

Various APs Optional

meet different requirements from customers, we provide corresponding AP with different feature parameters
including frequency, speed, tx power and installation method etc.

Physical Characteristics
Processor	Qualcomm
Flash / Memory	64MB DDR, 16MB Flash
LAN Port	2*10/100M Gigabit
Button	Reset
Power	802.3af
Max Power Consumption	6W
Working Temperature	-10C 〜60C
Working Humidity	0%〜95% non-condensing
Mounting	Ceiling Mount/Wall Mount
Wireless Characteristics
Wi-Fi Standard	802.11 b/g/n
Frequency	2.4GHz MIMO
Speed	300Mbps
Max Tx Power	23dBm
Antenna	3d Bi Dual Omni
Multi-SSID	up to 4 SSID Per Radio
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WRA/WPA2, TKP/AES)
Concurrent Clients	100+
Coverage Range	100m
Advanced Characteristics
Mode	FatAP/Fit AP
VLAN	802.1q
Guest Policy	Web Portal/Password
MAC Filter	Blacklist
User QoS	Speed Limit by User Group
Wireless Uplink	Supported
