S800AC

5GHz AC 867Mbps Base Station Access Point
Wireless Standards
802.11ac/n/a
Wireless Speed
867Mbps
Frequency Range
5.150-5.825GHz
Tx Power
26dBm±2
Antenna Connectors
2* RP-SMA
Networking interface
1x 10/100/1000 Base-T Ethernet
Dimension
214*92*32mm
  • S800AC
  • S800AC
  • S800AC
  • S800AC
  • Features

  • Specification

  • In The Box

  • Downloads

Product Overview

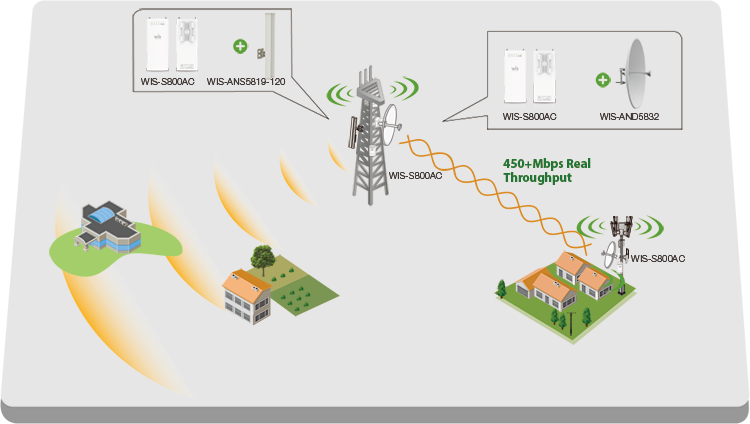

S800AC is a robust outdoor wireless base station featuring 802.11 ac technology for high end wireless
coverage and point to point connections. Featuring 11 ac high power wireless technology, the S800AC is
ideal for WISP optimizing their network with both backhaul and coverage ability by using together with antennas.



Amazing r Outdoor Performance
● 10km+ availability backhaul
● Up to 26dBm tx power
● Fully work with WIS antenna



150+ Online Clients

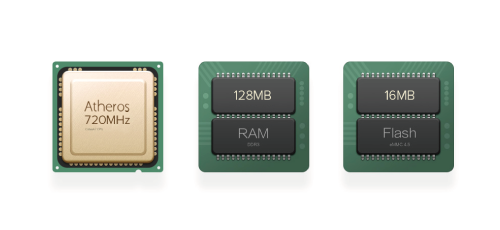

● 720MHz Atheros CPU
● 128MB DDR
● Multiple SSID&VLAN

Features and Benefits
Compliant with 802.11ac/n/a, speed up to 867Mbps
Gigabit LAN port helps get maximum wireless performance
High output transmission power and receive sensitivity optimized
Easy deployment and adjustment with provided mounting kits
24V Passive PoE with remote reset for flexible deployment



Robust Lightning Protection
In order to reduce the WISP maintenance cost, we integrate 8kV Ethernet lighting protection module into the S800AC.
This feature along with high durable temperature range and IP65 housing make it far more robust working in outdoor environment.

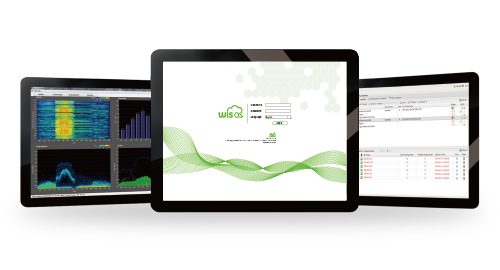

New WisOS with NMS Support
The new fresh WisOS web interface makes the software much easier to operate and more detail info to monitor.
WiD TDMA, spectrum analyzer and more WisOS feature helps the WISP build a better wireless network.
The WiController NMS central
management helps greatly reduce the cost of the device monitoring and maintaince.




Radio

802.11ac/n/a radio
Speed up to 867Mbps
Frequency Range: 5.150-5.250GHz
5.250-5.350GHz
5.470-5.725GHz
5.725-5.825GHZ
Tx Power 26dBm±2
Rx Sensitivity 867Mbps: -67dBm@10% PER
300M: -74dBm@10% PER
54M: -78dBm@10% PER
1M: -98dBm@10% PER

Antenna

2* RP-SMA antenna connectors

Security

Integrated Firewall
WPA/WPA2;WPA-PSK/WPA2-PSK(AES/TKIP)
Encryption;64/128-bit WEP

Interfaces

Integrated Firewall
WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP;

LED

Power:On/Off
LAN:On/Off/Flashing
WLAN:On/Off/Flashing
RSSI Signal:1,2,3

Power

24VDC, 0.75A
Power Consuption: 10W

Certifification

CE, RoHS

Package content

S800AC
Quick Setup Guide
Power Adapter with Passive PoE
Mounting kits

Physical Parameters

Dimension: 214*92*32mm
Wight: 0.5kg
Enclosure: Weatherproof ASA
ESD Protection: 16kV
Lightning Protection: 2kV
Working Temp: -30 ~ 60°C
Storage Temp: -40 ~70°C
Working Humidity: 10%~95% non-condensing
