Product Overview

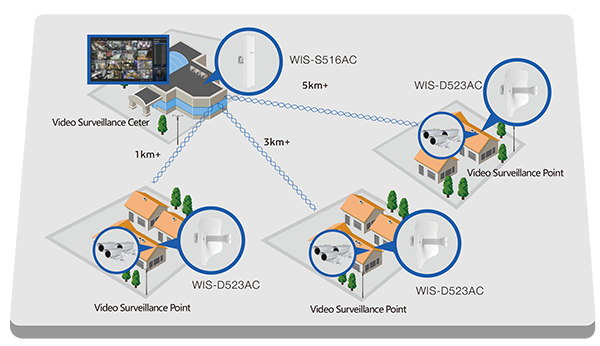

S516AX is robust outdoor wireless base station featuring 802.11ax technology for high end wireless coverage andpoint to multi-point connections.
Upgrade to WiFi 6 with speeds up to 1201Mbps brings 50% faster speeds than WiFi 5.

Superior WiFi 6 Speeds

● 1024 QAM25% more data encoded at one time

● Long OFDM Symbol11% faster speed

High performance

● 16dBi high antenna gain

● 23dBm high power

● 1201Mbps Wireless speed

● Gigabit LAN port

Flexibility and Simplicity

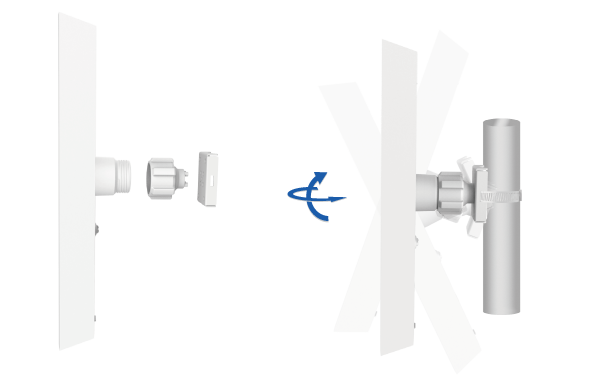

● Ball joint for all directional installation

● User-friendly design as no other tools

● required during installation

● Pole mounting and wall mounting

Features and Benefits

● Compliant with 802.11ac/n/a, speed up to 867Mbps

● Gigabit LAN port helps get maximum wireless performance

● High output transmission power and receive sensitivity optimized

● 16dBi high gain dual-polarized sector antenna

● All directional and simple installation without other mounting kits or tools

● 24V Passive PoE with remote reset for flexible deployment

● IP65 outdoor weather-proof housing and up to 24kV ESD protection

Signifificant Expense Reduction

● Ultra-gain in a smaller size antenna due to

● greatly improved antenna hardware design

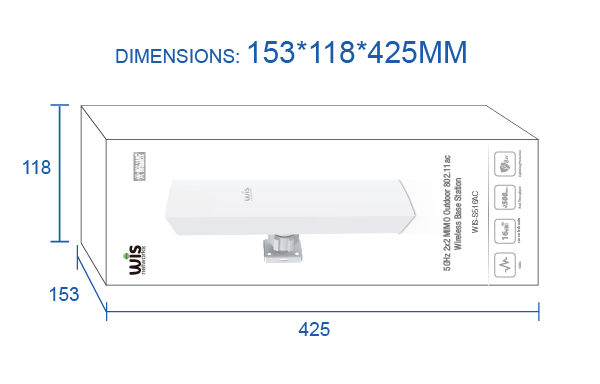

● Compactly designed box reduces the

● transportation and logistics expense

Radio	802.11ax/ac/n/a radio (Atheros 1.2GHz) Speed up to 1201Mbps Frequency Range: 5.1-5.8GHz Tx Power 23dBm±2 Rx Sensitivity 1201Mbps: -67dBm@10% PER 300M: -74dBm@10% PER 54M: -78dBm@10% PER 1M: -98dBm@10% PER
Antenna	16dBi 120 degree dual-polarized sector antenna
Security	Integrated Firewall WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP;
Interfaces	1x 10/100/1000 Base-T Ethernet (Gigabit LAN with Passive PoE) Reset
LED	Power:On/Off LAN:On/Off/Flashing WLAN:On/Off/Flashing RSSI Signal: 1,2,3
Power	24VDC, 0.75A Power Consuption: 10W
Certifification	CE, RoHS
Package content	S516AX Quick Setup Guide Power Adapter with Passive PoE Mounting kits
Physical Parameters	Dimension: 39510090mm Weight: 0.77kg Enclosure: Weatherproof ASA ESD Protection: 16kV Lightning Protection: 8kV Working Temp: -20 ~ 70°C Storage Temp: -40 ~85°C Working Humidity: 10%~95% non-condensing
