Product Overview

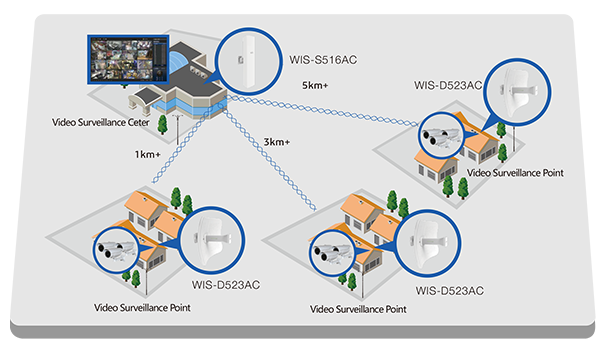

S516AC is robust outdoor wireless base station featuring 802.11ac technology for high end wireless coverage
and point to multi-point connections. When it works with wisnetworks 11ac CPE, it could reach at least 20km
distance of network coverage, which makes it extraodinarily ideal for ISP and surveillance industry and so on.

Extremely Amazing Performance

The integrated 2*2 MIMO technology for 867Mbps 5GHz makes it 3x speed than legacy 802.11n
standard. The tx power is boosted up to 26dBm for incredible long distance.

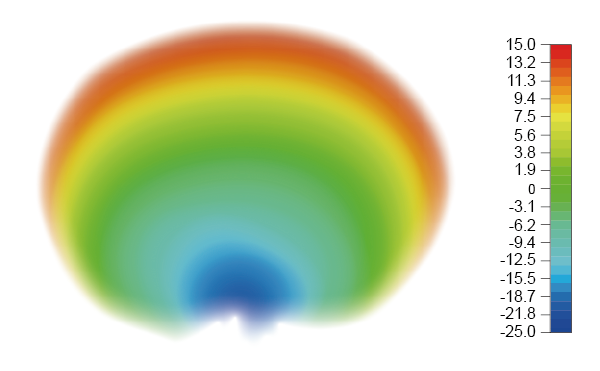

Upgraded 802.11ac Antenna

The sector antenna using in the base station is upgraded to a better shielding design, thus bringing
higher front-back ratio compared to legacy antennas, making it superior beam performance for 256-QAM waves.

Flexibility and Simplicity

WIS- S516AC provides ball joint for all directional installation and user-friendly
design as no other tools required during pole mounting and wall mounting.

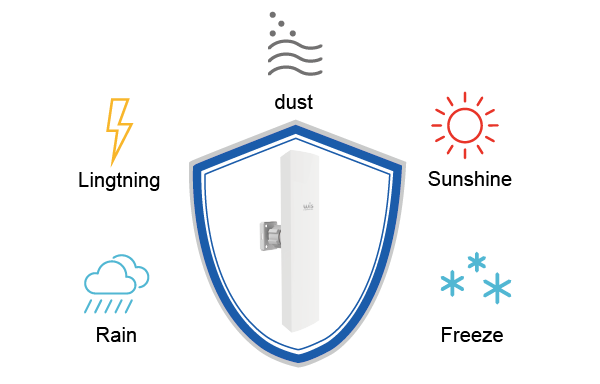

Fantastically Durable for Outdoor

Integrating 8kV lightning protection, 24kV ESD protection, high durable temperature range
and IP67 aluminum housing make it far more robust working in outdoor environment.

Significant Expense Reduction

WIS-S516AC realizes Ultra-gain in a smaller size antenna due to greatly improved antenna
hardware design. And compactly designed box reduces the transportation and logistics expense.

Radio	802.11ac/n/a radio (Atheros 720MHz) Speed up to 867 Mbps Frequency Range: 5.1-5.8GHz Tx Power 27dBm±2 Rx Sensitivity 867Mbps: -67dBm@10% PER 300M: -74dBm@10% PER 54M: -78dBm@10% PER 1M: -98dBm@10% PER
Antenna	16dBi 120 degree dual-polarized sector antenna
Security	Integrated Firewall WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP;
Interfaces	1x 10/100/1000 Base-T Ethernet (Gigabit LAN with Passive PoE) Reset
LED	Power:On/Off LAN:On/Off/Flashing WLAN:On/Off/Flashing RSSI Signal: 1,2,3
Power	24VDC, 0.75A Power Consuption: 10W
Certifification	CE, RoHS
Package content	S516AC Quick Setup Guide Power Adapter with Passive PoE Mounting kits
Physical Parameters	Dimension: 39510090mm Weight: 0.77kg Enclosure: Weatherproof ASA ESD Protection: 16kV Lightning Protection: 8kV Working Temp: -20 ~ 70°C Storage Temp: -40 ~85°C Working Humidity: 10%~95% non-condensing
