S1200AX

5GHz AX 1201Mbps Base Station Access Point
Wireless Standards
802.11ax
Wireless Speed
1201Mbps
Frequency Range
5.150-5.825GHz
Tx Power
23dBm
Antenna Connectors
2* RP-SMA
Networking interface
1x 10/100/1000 Base-T Ethernet
Dimension
214*92*32mm
  • S1200AX
  • S1200AX
  • S1200AX
  • S1200AX
  • Features

  • Specification

  • In The Box

  • Downloads

Product  Overview

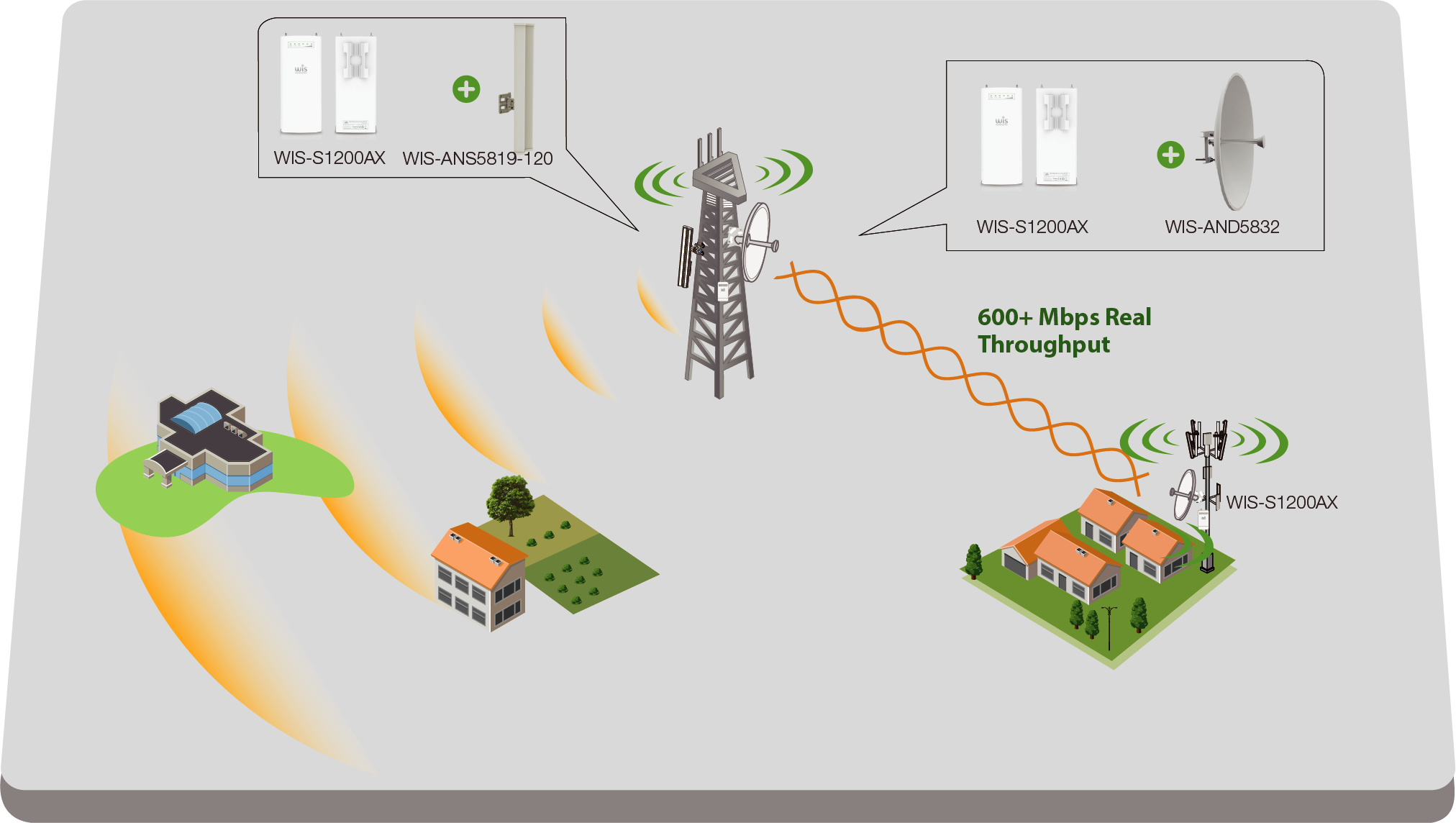

WIS-S1200AX is a robust outdoor wireless base station featuring 802.11ax technology for
high end wireless coverage and point to point connections. Featuring 11 ax high power
wireless technology, the WIS-S1200AX is ideal for WISP optimizing their network with both

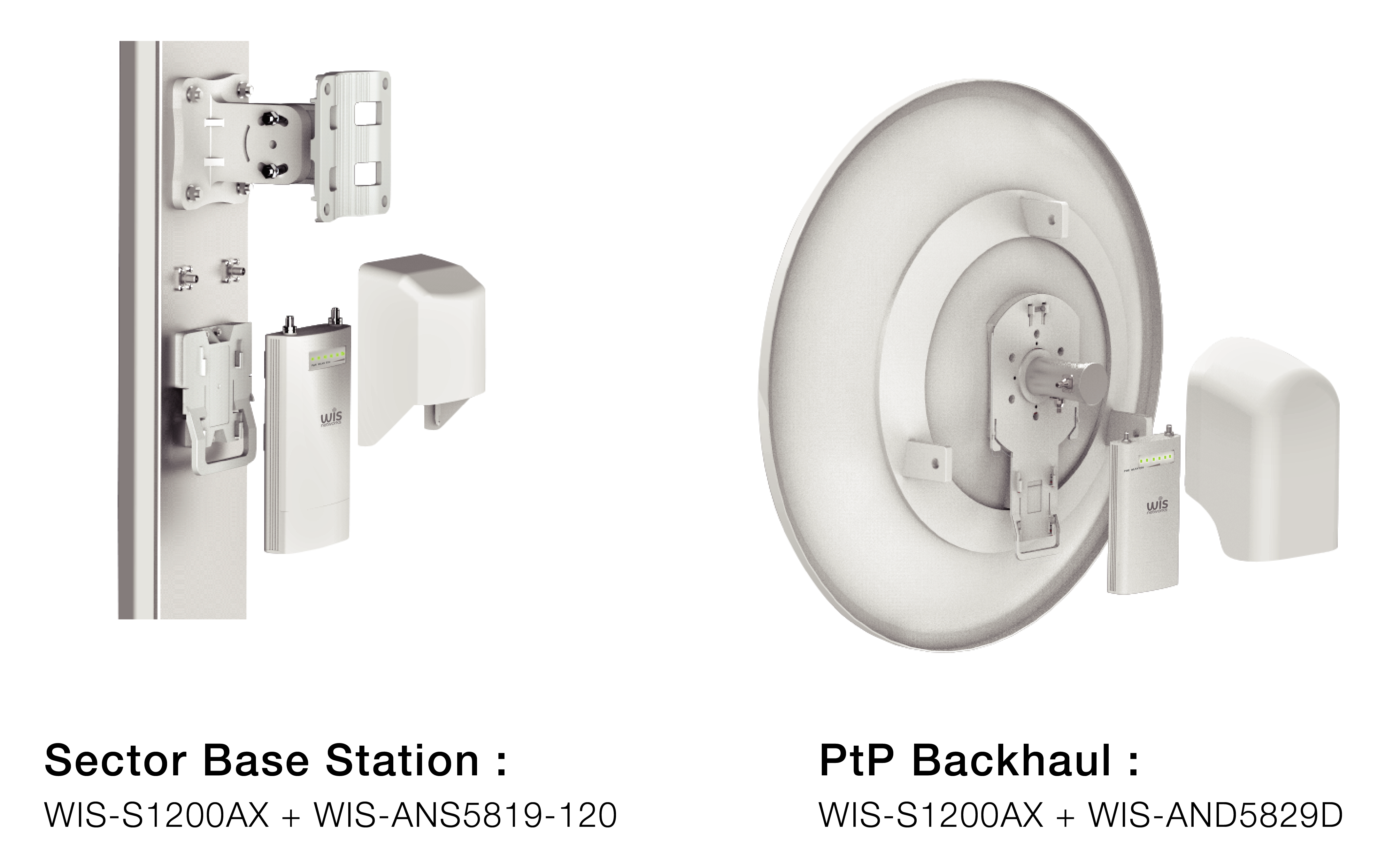

backhaul and coverage ability by using together with Wisnetworks antennas.

Extremely High Speed Connectivity
● Ultra-Fast Wi-Fi 6 Speeds
● 4x speed than 802.11 n devices
● Wireless Speed up to 1201Mbps
● Gigabit LAN port

Amazing Outdoor Performanc
● 10km+ availability backhaul
● Up to 26dBm tx power
● MU-MIMO
● Fully work with WIS antenna


Hardware
● Qualcomm chip
● 512MB DDR
● 32MB Flash
● 24V Gigabit poe



Features and Benefifits
4× increased capacity to connect more devices simultaneously.
Compliant with 802.11ax/ac/n/a, speed up to 1201Mbps
Gigabit LAN port helps get maximum wireless performance
High output transmission power and receive sensitivity optimized
24V Passive PoE for convenient deployment and installation.

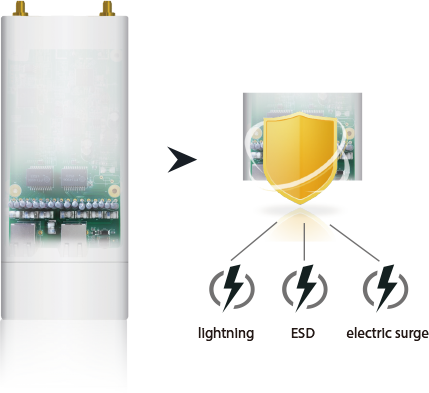

Robust Lightning Protection
In order to reduce the WISP maintenance cost, we integrate 8kV Ethernet lighting protection module into the S800AC.
This feature along with high durable temperature range and IP65 housing make it far more robust working in outdoor environment.



New WisOS with NMS Support
The new fresh WisOS web interface makes the software much easier to operate and more detail info to monitor.
WiD TDMA, spectrum analyzer and more WisOS feature helps the WISP build a better wireless network. The WiController NMS central
management helps greatly reduce the cost of the device monitoring and maintaince.



Radio

802.11ax radio
Wireless Speed up to1201Mbps
Frequency Range:
5.150-5.250GHz
5.250-5.350GHz(Support DFS)
5.470-5.725GHz(Support DFS)
5.725-5.825GHz
Tx Power up to 23dbm
Rx Sensitivity
300M:-71dBm@10% PER
54M:-75dBm@10% PER

Antenna

2* RP-SMA antenna connectors

Security

Integrated Firewall
WPA/WPA2;WPA-PSK/WPA2-PSK(AES/TKIP)
Encryption;64/128-bit WEP

Interfaces

1x 10/100/1000 Base-T Ethernet
(Gigabit LAN with Passive PoE)
Reset

LED

Power:On/Off
LAN:On/Off/Flashing
WLAN:On/Off/Flashing
RSSI Signal:1,2,3

Power

24VDC, 0.75A
Power Consuption: 12W

Certifification

CE, RoHS

Package content

S1200AX
Quick Setup Guide
Power Adapter with Passive PoE
Mounting kits

Physical Parameters

Dimension: 214*92*32mm
Wight: 0.5kg
Enclosure: Weatherproof ASA
ESD Protection: 16kV
Lightning Protection: 2kV
Working Temp: -30 ~ 60°C
Storage Temp: -40 ~70°C
Working Humidity: 10%~95% non-condensing
