Product Overview

Q800P is a 867Mbps 2*2 MIMO outdoor wireless CPE for point-to-point and point-to-multi-point solutions.
It is the most cost-effective and ultimate solution for WISP CPE,which provides incredible long range much better than any other vendors solution.

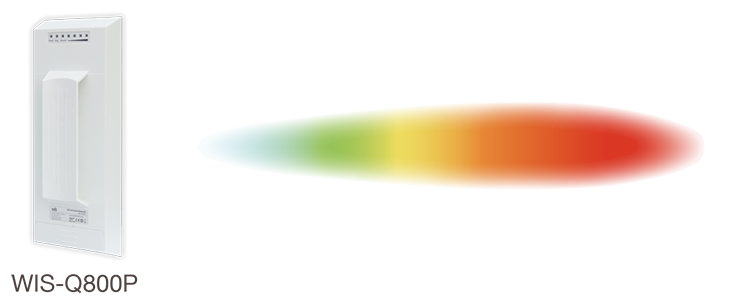

Incredible Long Range

●  Up to 26dBm Tx Power
●  16dBi directional antenna
●  Wireless Speed up to 867Mbps
●  Narrower Beamwidth for noise immunity

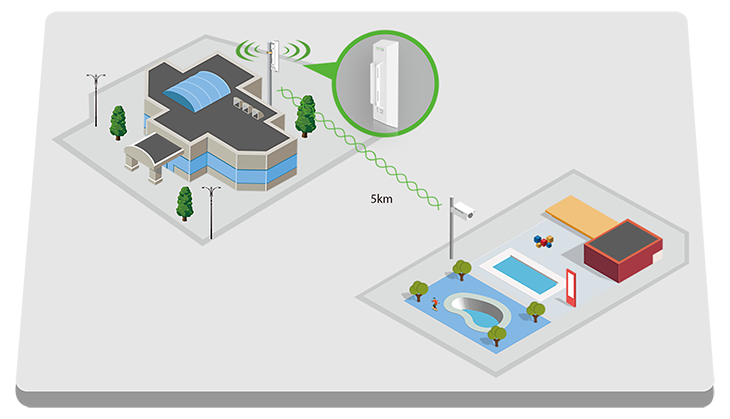

Wireless Solutions for Surveillance
●  Cost-effective passive PoE
●  IP65 Waterproof

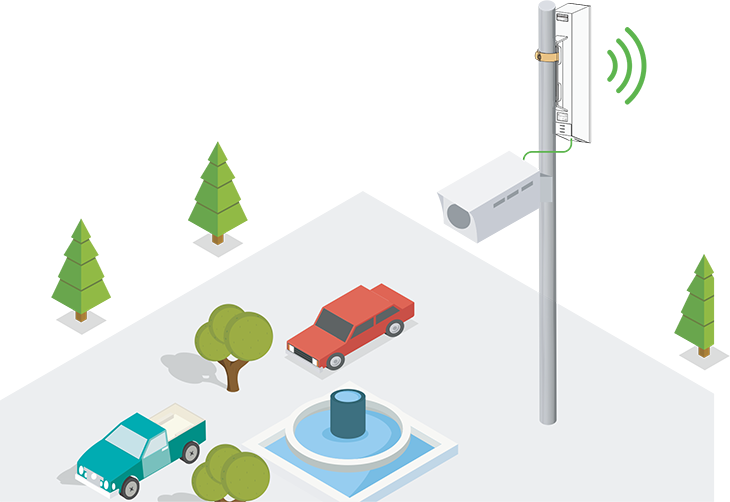

●  Multiple mounting methods
●  Extremely Amazing Performance

Full Feature & Performance
●  Full Wis OS Support
●  Auto-Distance Adjust
●  8km+ Availability

Features and Benefifits

16dBi panel antenna to build robust wireless PtP link
Compliant with 802.11ac/n/a, Wireless speed up to 433Mbps
Wireless Solutions for Surveillance
5 kilometers throughput 90+
80/40/20MHz selectable for channel bandwidth
Easy deployment and adjustment with provided mounting kits
Passive POE(24VDC) for flflexible deployment
Weather-proof design for outdoor environment
Up to8kV ESD protection

Product code	Q800P
Architecture	MIPSBE
CPU	QCA9563+QCA9886
Size of RAM	64MB
Flash	16MB
Radio	802.11a/n/ac radio Speed up to 867 Mbps Frequency Range:5.1-5.8GHz Tx Power up to 26dbm Rx Sensitivity 300M:-71dBm@10% PER 54M:-75dBm@10% PER 1M:-95dBm@10% PER
Antenna	16dBi dual-polarized directional antenna Beamwidth(HPBW): Horizontal: 60°, Vertical: 30°
Physical Parameters	Dimension:260x100x60mm Weight:0.4kg Enclosure: Weatherproof Plastic ESD Protection：8kV Lightning Protection：4kV Working Temp：-40~65℃ Storage Temp：-40~85℃ Working Humidity：10%~95% non-condensing
Interfaces	1x 10/100/1000 Base-T Ethernet (RJ45 with Passive PoE) Reset
Power	24VDC, 0.5A
LED	Power: On/Off LAN:On/Off/Flashing RSSI Signal: 1,2,3
Warranty	1 Year
Certification	CE, RoHS
Power Consumption	<10W
Package content	Q800P Quick Setup Guide Power Adapter with Passive PoE Mounting kits
