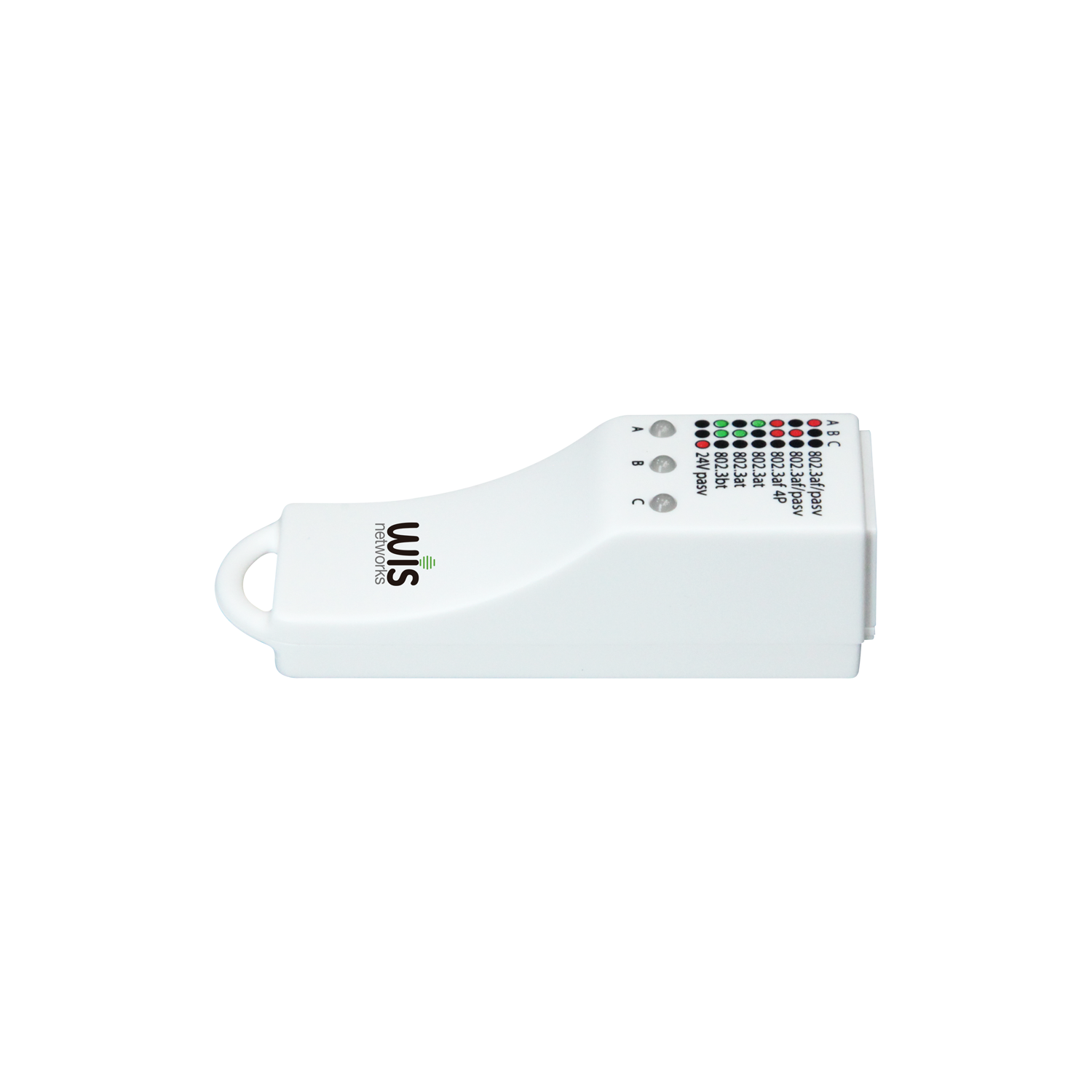

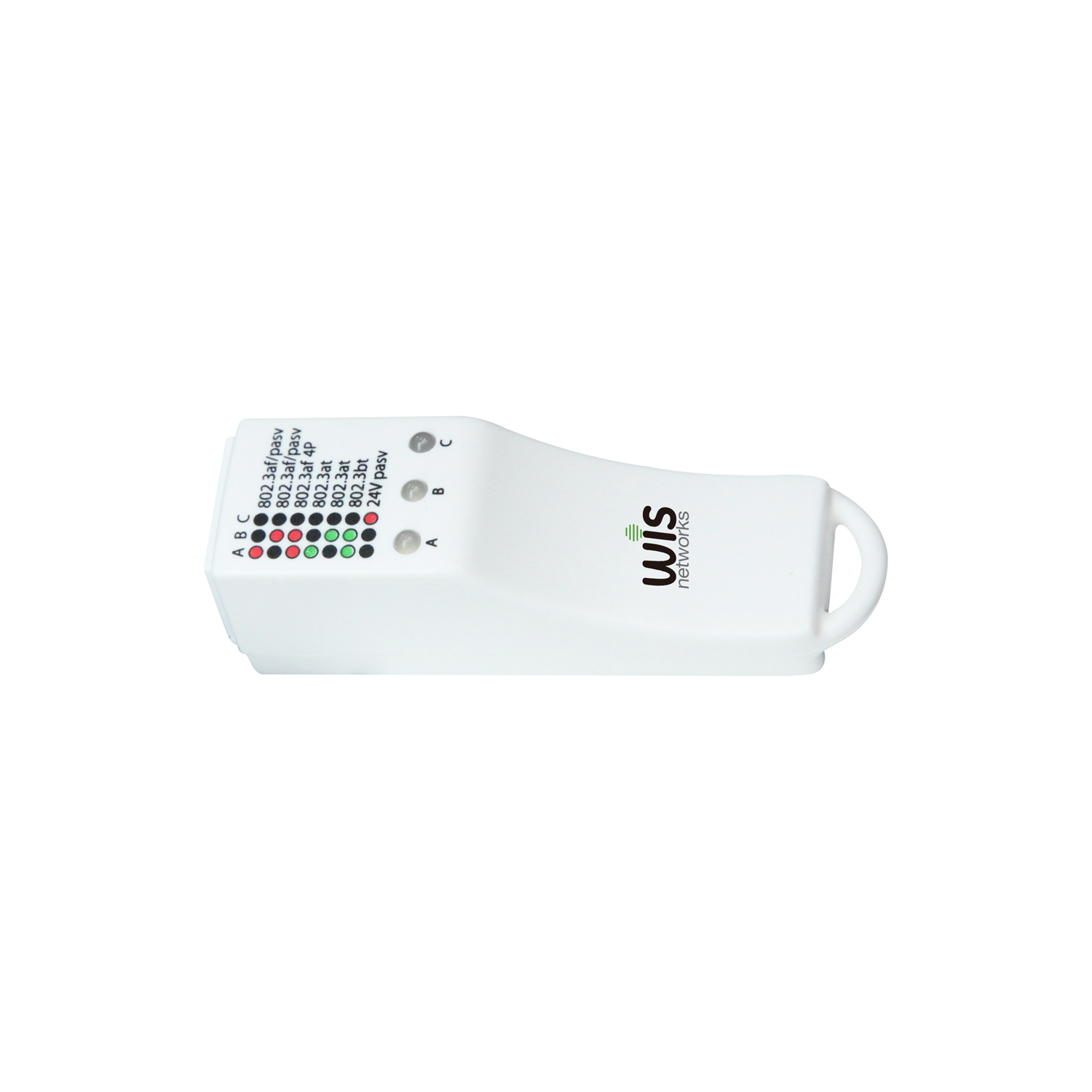

Product Overview

● Very Compact Size, Easy to Carry, Low Cost.
● Detects Popular Power Over Ethernet Standards.

The PoE -Tester is a new generation of easy-to-use PoE detection adapter, suitable for network installers, system integrators, company management
information systems and even home users to quickly identify the existence of Power over Ethernet on application network. It is designed to detect
whether IEEE 802.3af/at/bt and 24V voltage are running on the cable, and to identify the type of PSE (power supply equipment).
This product has a compact design and is tailor-made for system integrators and installers.
The PoE tester detects 48V output through mode A and mode B, and detects 24V output through mode C.
Mode A (supplied on pins 4, 5, 7, 8),
Mode B (supplied on pins 1, 2, 3, 6), Mode C 24V (supplied on pins 4, 5, 7, 8 ).

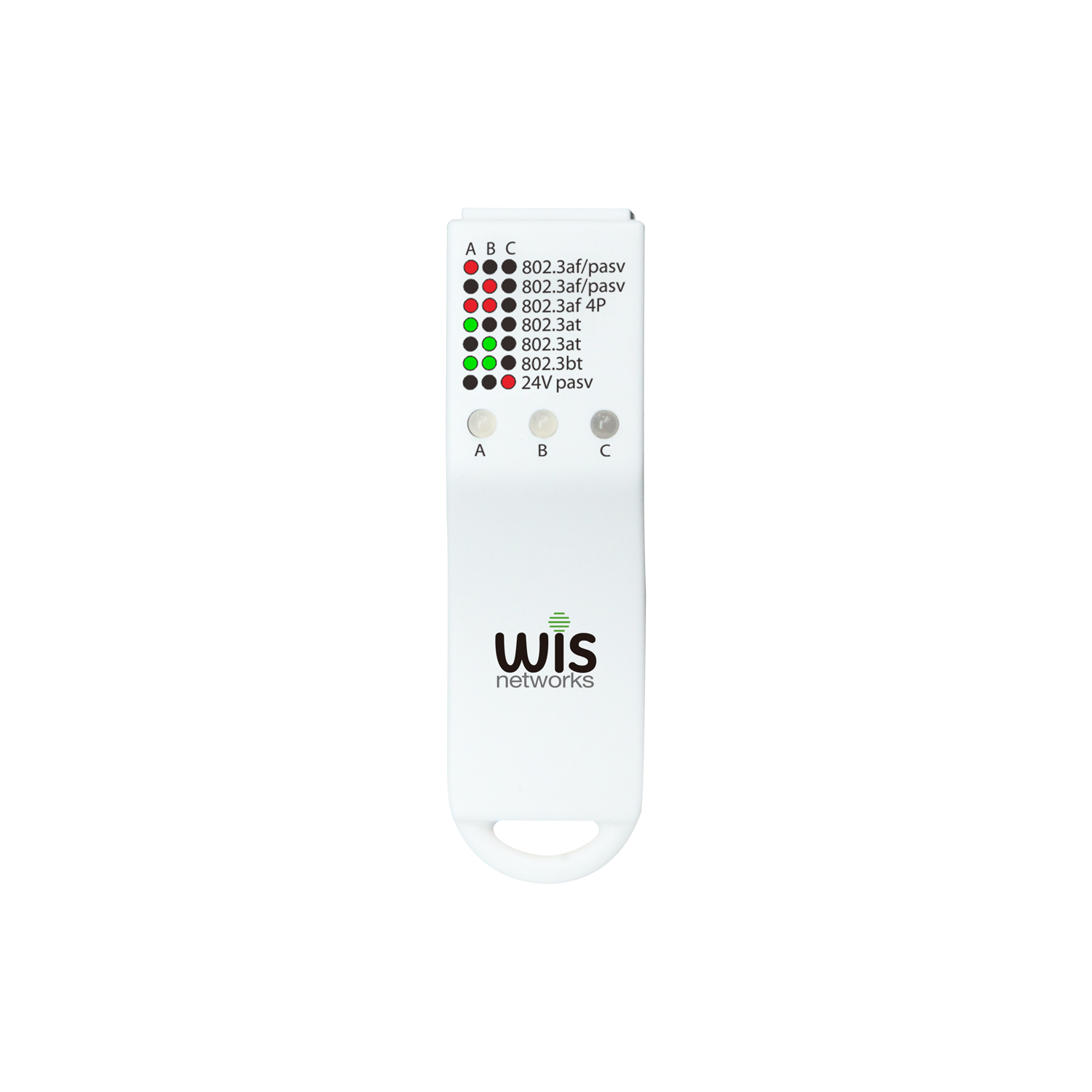

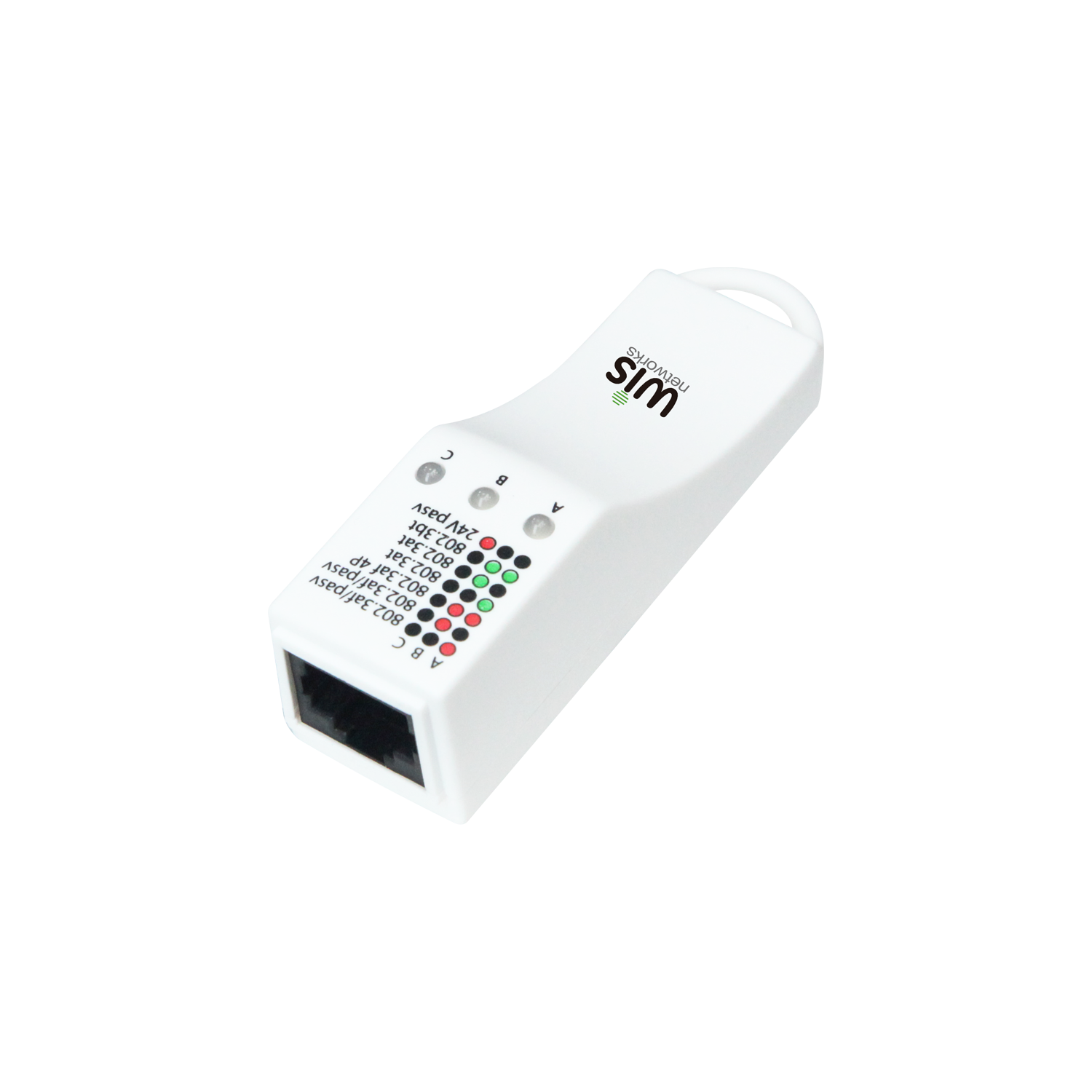

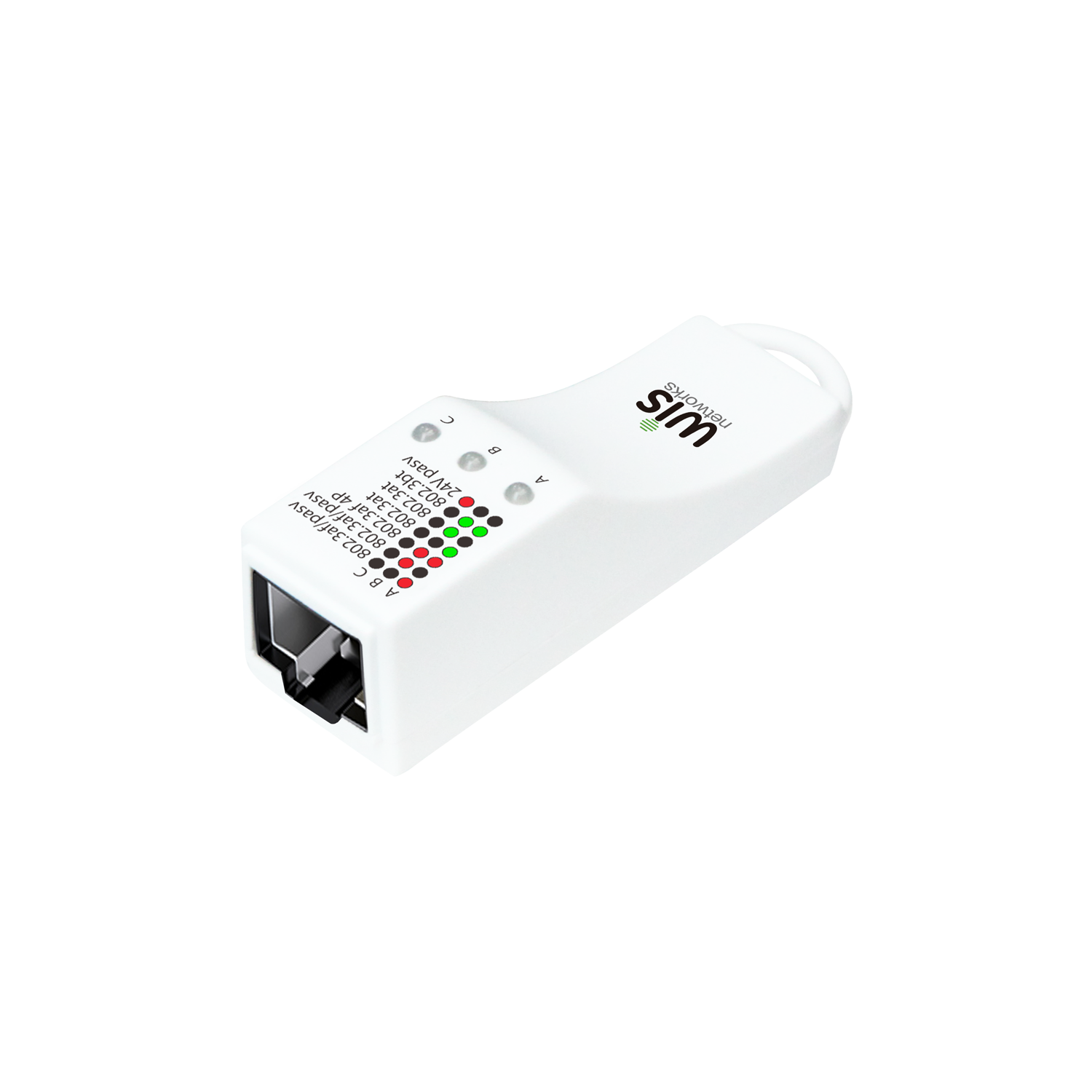

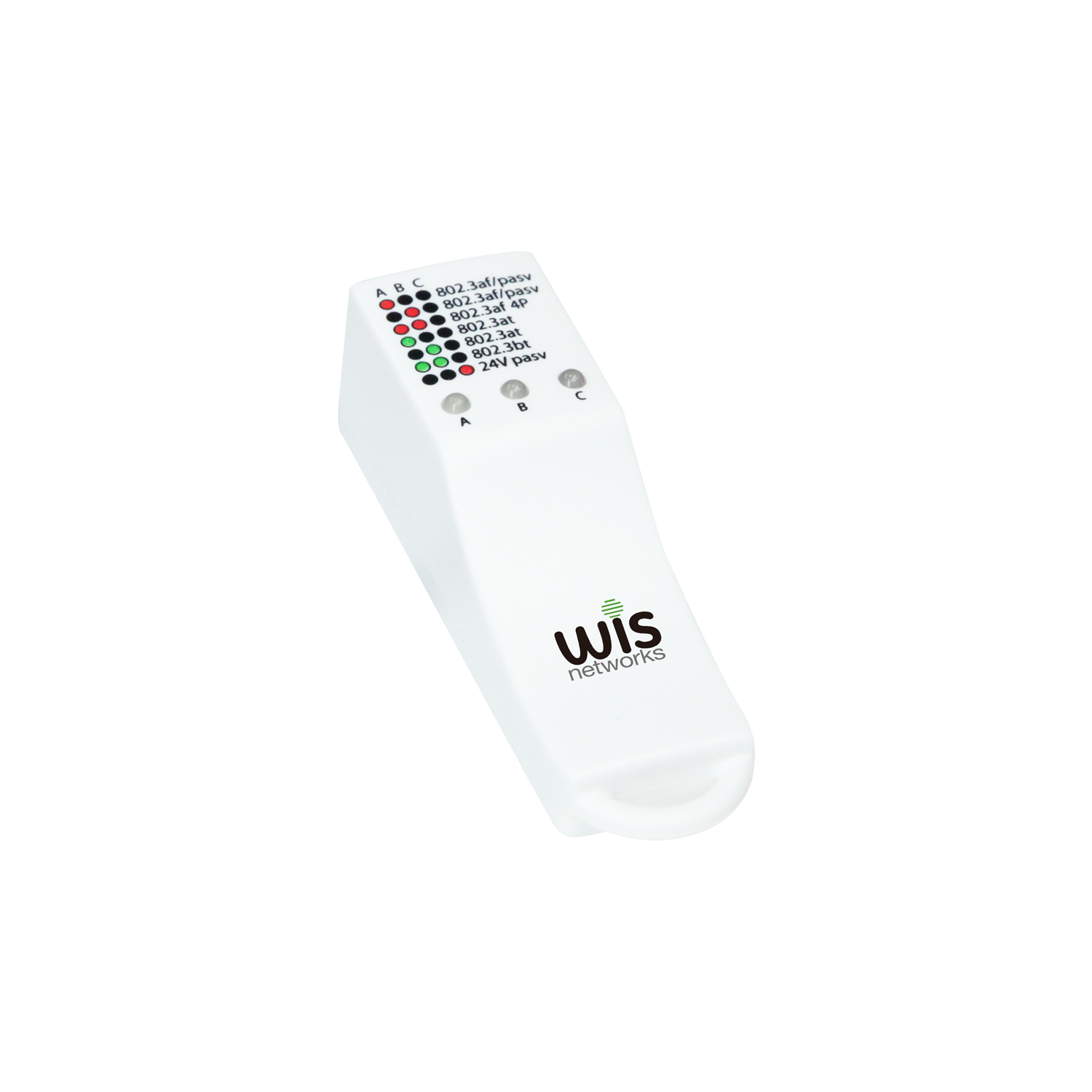

LED indicators
LED Indicators Bright Colors PoE Standard Pin
LED A Red 802.3 af PoE or 48V passive Pins 4,5,7and 8
Green 802.3 at PoE+
LED B Red 802.3 af PoE or 48V passive Pins 1,2,3and 6
Green 802.3 at PoE+
LED A&B Both Red 802.3af PoE All pins
Both Green 802.3 bt PoE++
LED C Red 24V passive Pins 4,5,7and 8

Specifications
PoE Detection IEEE 802.3af/at/bt, 48V,
24 V Passive  Mode A, Mode B, Mode C
PoE Input (RJ45) 21--27V DC, 42--57DC
Compatible PortSpeed 10/100MB/1000MB
LED Dual Color (Red / Green)
Operating Temperature -25 to +50°C (-13 to +122°F)
Operating Humidity 5% - 90% non-condensing
Storage Temperature -40 to +80°C (-40 to +176°F)
Dimensions (LxWxH) 71.3*22*21.2mm
Weight 18g
