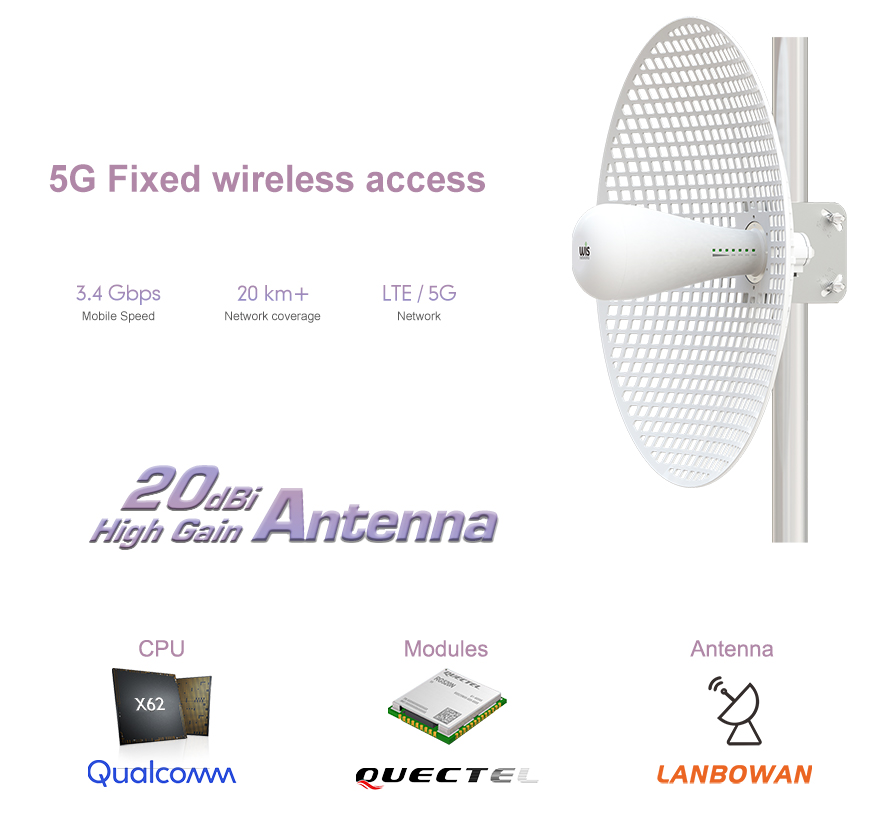

Model |
ODU20-5G |
|
Chipset |
Qualcomm Snapdragon X62 5G |
|
Applicable Network |
5G/4G |
|
Standard |
3GPP Release 16 |
|
Network technology |
5G Sub-6 GHz and 4G LTE Cat 19，4x4 MIMO |
|
5G Frequency Bands
|
NSA: N1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/79 SA: N1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/79 |
|
4G&3G Frequency Bands |
LTE-FDD:B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/26/ 28/ 29/ 30/ 32/ 66/ 71 LTE-TDD: B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 LAA: B46 WCDMA: B1/ 2/ 4/ 5/ 8/ 19 |
|
Data speeds |
5G SA Sub-6 : DL 2.4Gbps; UL 900Mbps 5G NSA Sub-6: DL 3.4Gbps; UL 550Mbps LTE: DL 1.6Gbps; UL 200Mbps |
|
Antenna Frequency |
698-3800MHz |
|
LTE/5G Antenna Gain |
Mimo Dish Antenna Max 20dBi |
|
Led Indicator |
1*PWR,1*SYS,1*ETH,1*Sim ,3*Signal strength |
|
Ports |
1*SIM card slot, 1*2.5 Gigabit ports, 1* Reset,Type C |
|
Software |
APN, AT Command, PCI Lock, Bands Lock, SMS, IMEI Change |
|
Power Supply |
24-48V Passive PoE |
|
Dimensions |
60cm |
|
Weight |
3.5kg |
|
Color |
white |
|
Environment |
Operating temperature:-20℃ ~ 40℃ Storage temperature: -20℃ ~ 70℃ Humidity: 5% ~ 95% (non-condensing) |
|
Note |
Different modules for different bands |
