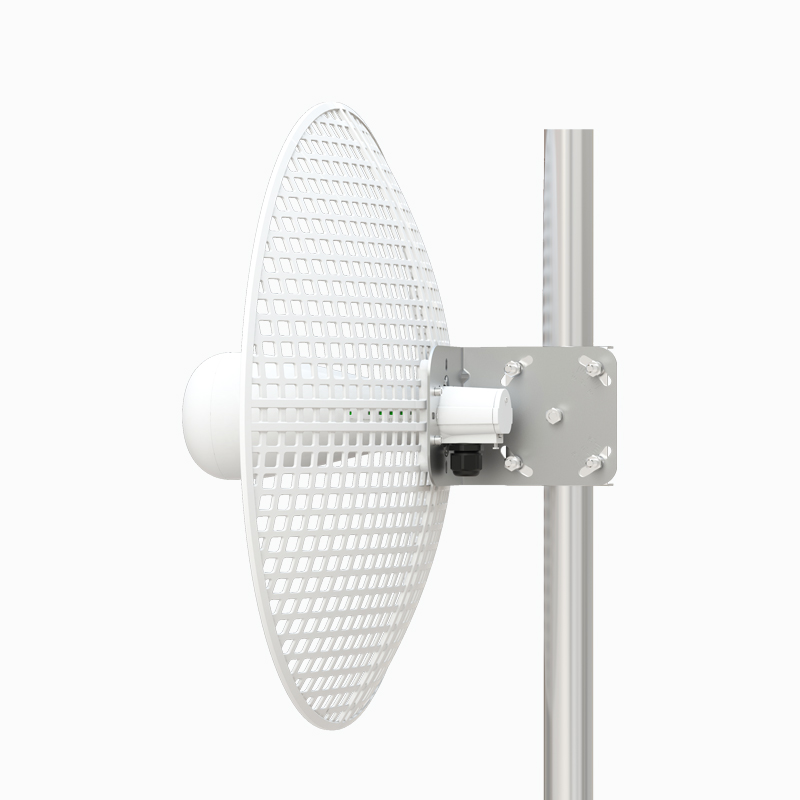

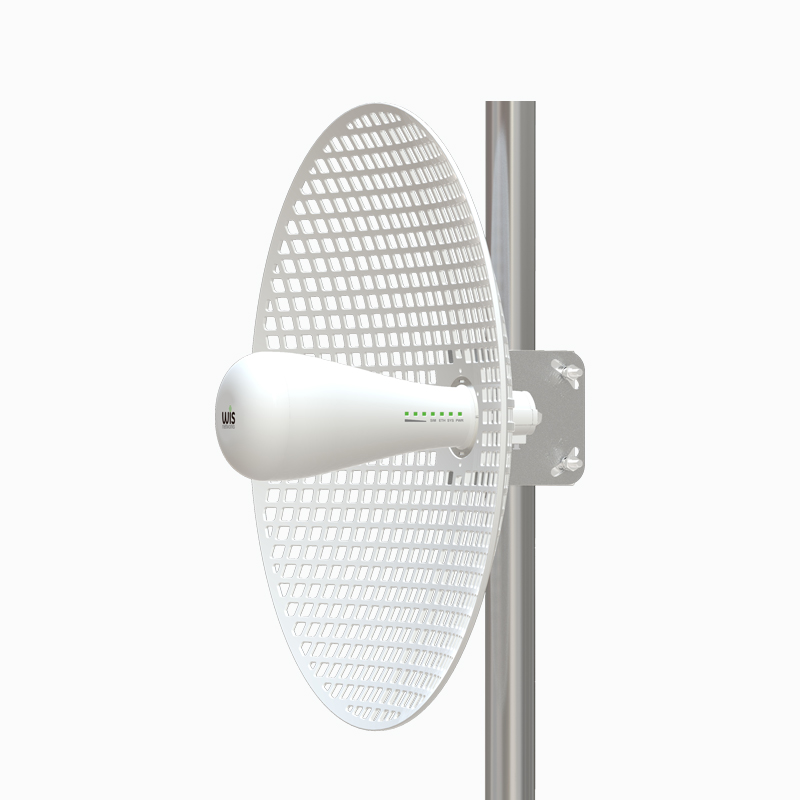

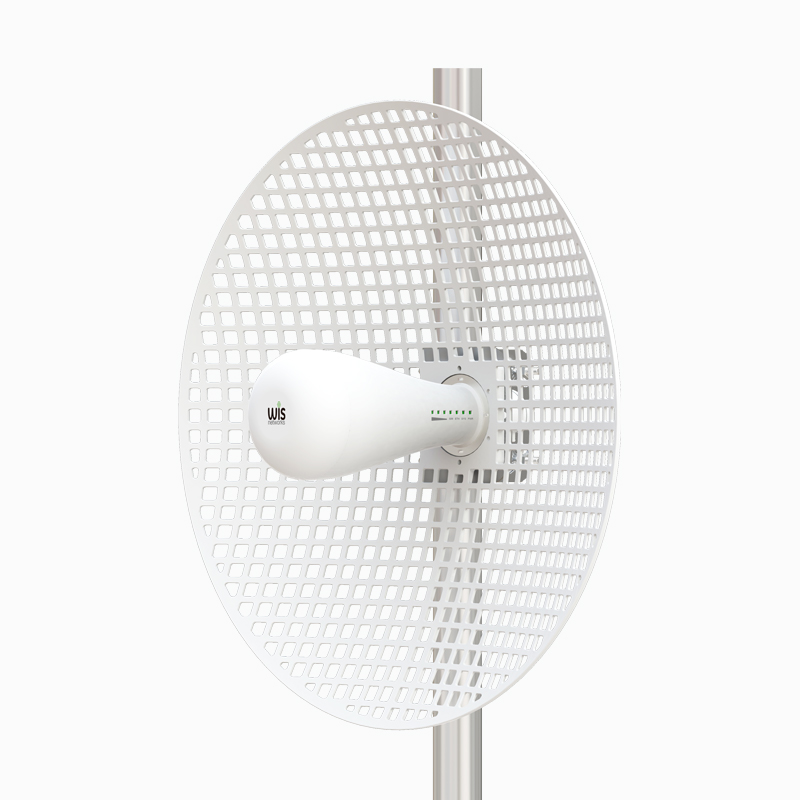

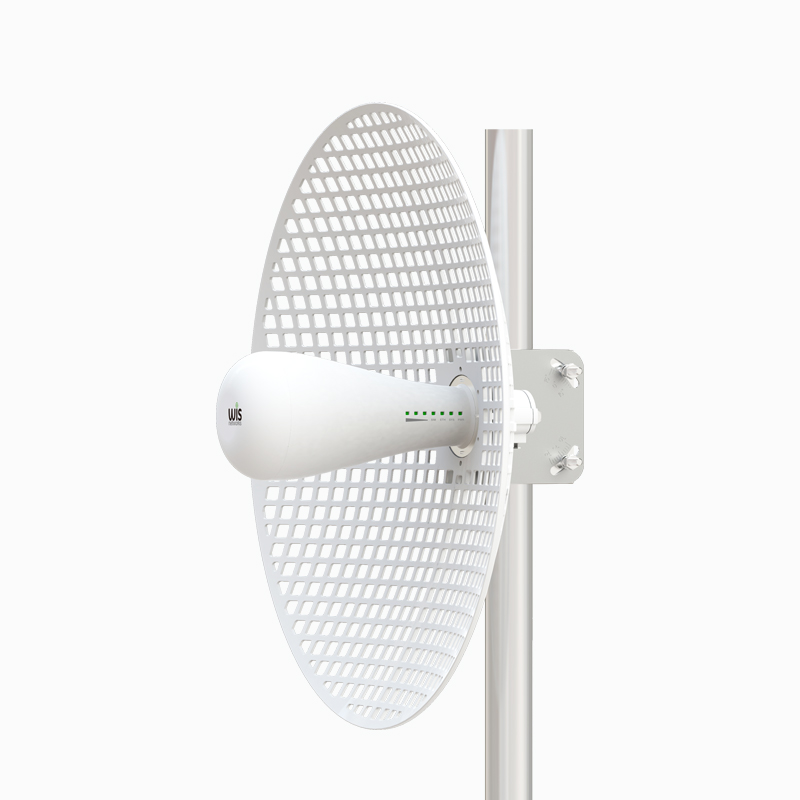

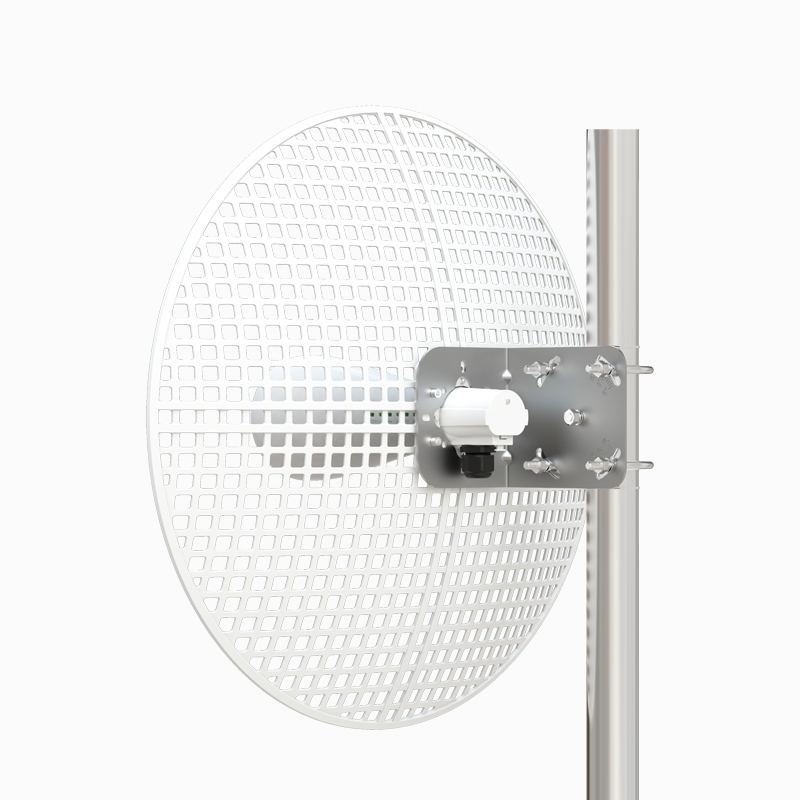

Outdoor 5G CPE for edge-of-network and challenging locations
WIS’s high-gain directional antennas provide high speed, low latency wireless network coverage almost anywhere,
especially useful in challenging locations.
Features
 |
 |
 |
 |
|
Model |
ODU22-5G |
|
Chipset |
Qualcomm Snapdragon X62 5G |
|
Applicable Network |
5G/4G |
|
Standard |
3GPP Release 16 |
|
Network technology |
5G Sub-6 GHz and 4G LTE Cat 19，4x4 MIMO |
|
5G Frequency Bands |
NSA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/71/ 75/ 76/ 77/ 78 SA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/71/ 75/ 76/ 77/ 78 |
|
4G&3G Frequency Bands |
LTE-FDD:B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 71 LTE-TDD: B38/ 40/ 41/ 42/ 43 WCDMA: B1/ 5/ 8 |
|
Data speeds |
5G SA Sub-6 : DL 2.4Gbps; UL 900Mbps 5G NSA Sub-6: DL 3.4Gbps; UL 550Mbps LTE: DL 1.6Gbps; UL 200Mbps |
|
Antenna Frequency |
1710-4200MHz |
|
LTE/5G Antenna Gain |
Mimo Dish Antenna Max 22dBi |
|
Led Indicator |
1*PWR,1*SYS,1*ETH,1*Sim ,3*Signal strength |
|
Ports |
1*SIM card slot, 1*2.5 Gigabit ports, 1* Reset,Type C |
|
Software |
APN, AT Command, PCI Lock, Bands Lock, SMS, IMEI Change |
|
Power Supply |
24-48V Passive PoE |
|
Dimensions |
60cm |
|
Weight |
3.5kg |
|
Color |
white |
|
Environment |
Operating temperature:-20℃ ~ 40℃ Storage temperature: -20℃ ~ 60℃ Humidity: 5% ~ 95% (non-condensing) |
|
Note |
Different modules for different bands |
