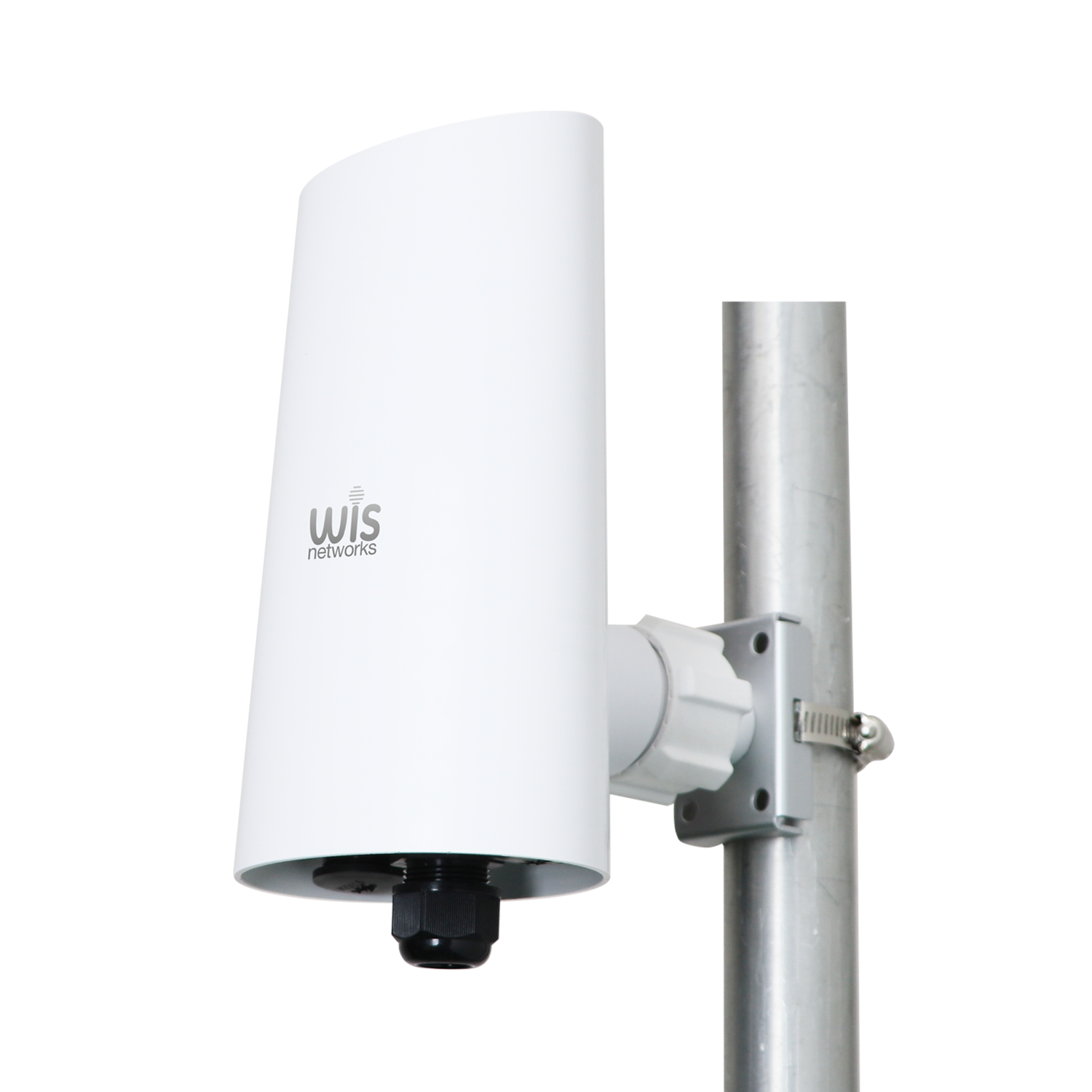

Model

ODU10V-5G

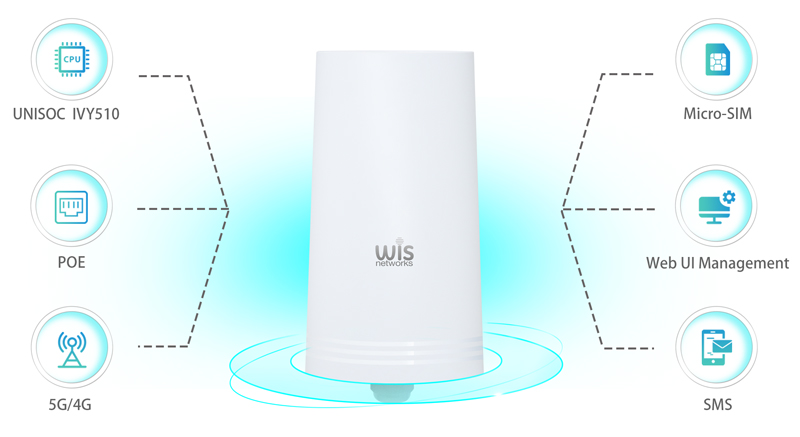

CPU

UNISOC IVY510  Cortex-A55*2 @1.35G

DDR3

4Gbit

Flash

2Gbit

Applicable Network

5G/4G

Standard

3GPP Release 15

Network technology

5G Sub-6 GHz and 4G LTE Cat 13，4x4 MIMO

5G Frequency Bands

5G NR NSA：n1/ 3/ 7/ 38/ 40/ 41/ 77/ 78/ 79

5G NR SA：n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71/ 77/ 78/ 79

MIMO:   DL: 4x4 MIMO on n1/ 3/ 7/ 38/ 40/ 41/ 77/ 78/ 79

UL: 2 × 2 MIMO on n38/ 40/ 41/ 77/ 78/ 79

DL: 2 × 2 MIMO on n5/ 8/ 20/ 28/ 71

4G&3G Frequency Bands

LTE Category : DL Cat 12, UL Cat 13

LTE-FDD:B1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28A/ 28B/ 66

LTE-TDD: B38/ 40/ 41

DL 2x2 MIMO: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28A/ 28B/ 38/ 40/ 41/ 66

Data speeds

5G SA: 2 Gbps (DL)/ 1 Gbps (UL)

5G NSA: 2.6 Gbps (DL)/ 650 Mbps (UL)

LTE : 600 Mbps (DL)/ 150 Mbps (UL)

WCDMA:42.2 Mbps (DL)/ 11 Mbps (UL)

Antenna Frequency

698-3800MHz

LTE/5G Antenna Gain

4x4 Mimo Antenna, Max 10dBi

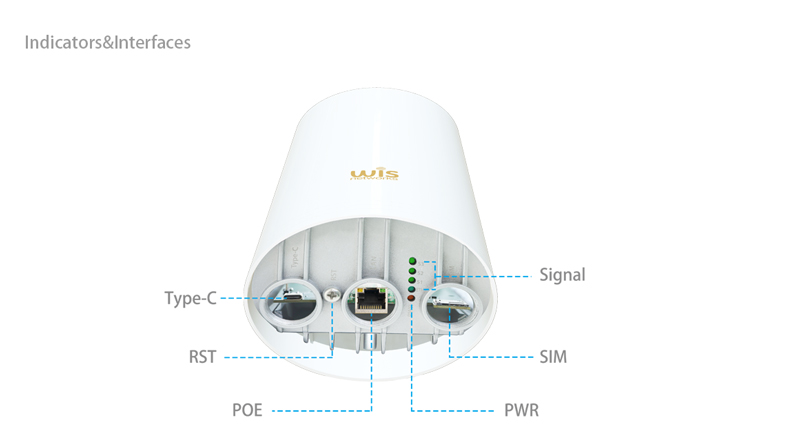

Led Indicator

1*PWR,1*link,3*Signal strength

SIM Card

1*SIM card slot

Ethernet

1 x Gigabit Ethernet (RJ45), auto MDI/MDIX

USB

Type C

Wi-Fi

N/A

Reset Button

Yes,Through this button, the parameter configuration can be restored to the factory value

Power Supply

POE: 802.3af/at or 24-48V Passive

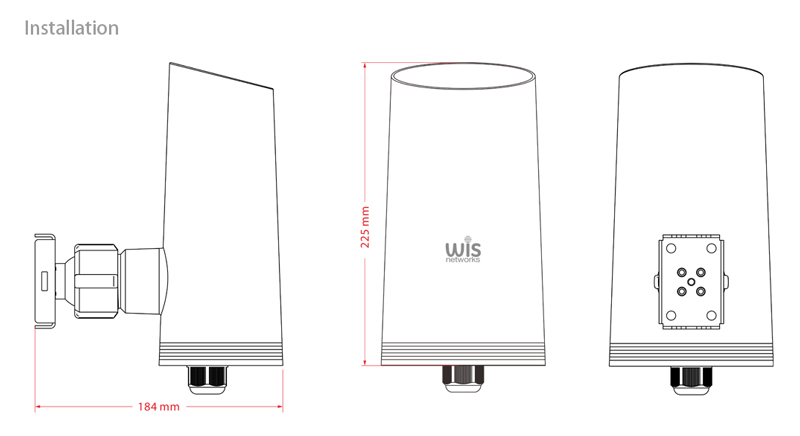

Dimensions

184*225mm

Weight

0.8kg

Color

white

Environment

Operating temperature:-20℃ ~ 40℃

Storage temperature: -20℃ ~ 70℃

Humidity: 5% ~ 95% (non-condensing)

Software

Language

Chinese, English,Spanish,Korean,Russian,Portuguese,Hebrew

Network settings

Dynamic IP mode, PPPoE mode, static IP mode, default dynamic IP

Mobile connection

5G/4G/3G Mode, search operator,

local area network

DHCP settings, the default LAN address is 192.168.1.1/24

WiFi settings

WiFi switch, name, password, protocol, bandwidth, channel, hidden

Black and white list

Add (can be imported from user list), delete, move black and white list

WPS

PIN code access, PBC access

Band Lock

Lock 5G/LTE connect band

PCI Lock

Lock 5G/LTE connect cell

APN

The relevant information of APN will be automatically adapted according to the inserted SIM card

AT Command

WebGui integrated AT Command interface, you can query and configure module parameters by input AT Command

VPN client

There are two main types of VPN client configuration: PPTP and L2TP

SMS

Plug in a usable SIM card, you can realize the functions of sending short messages and receiving short messages

Port Mapping

Open the local port service so that users can access the internal private network from the Internet

MAC filtering

Set access and forwarding rules based on MAC

IP filtering

Set access and forwarding rules based on IP

DDNS

DDNS maps a user's dynamic IP address to a fixed domain name resolution service, so that users can directly access it through the domain name

SMNP

Managed device through SNMP. Support SNMPV1,SNMPV2

TR069

The management server in the network management model defined by the TR069 protocol is called an automatic configuration server (ACS), and is responsible for the management of user terminal equipment (CPE). The ACS server can restart, reset, and upgrade CPE according to the TR069 protocol, which can realize the function of managing multiple routers

change Password

Change the login Password

Backup, upgrade

Download the backed up configuration, upload the backed up configuration,

upgrade firmware

Reboot, Reset

Contains immediate reboot and reset to factory
