Product Overview

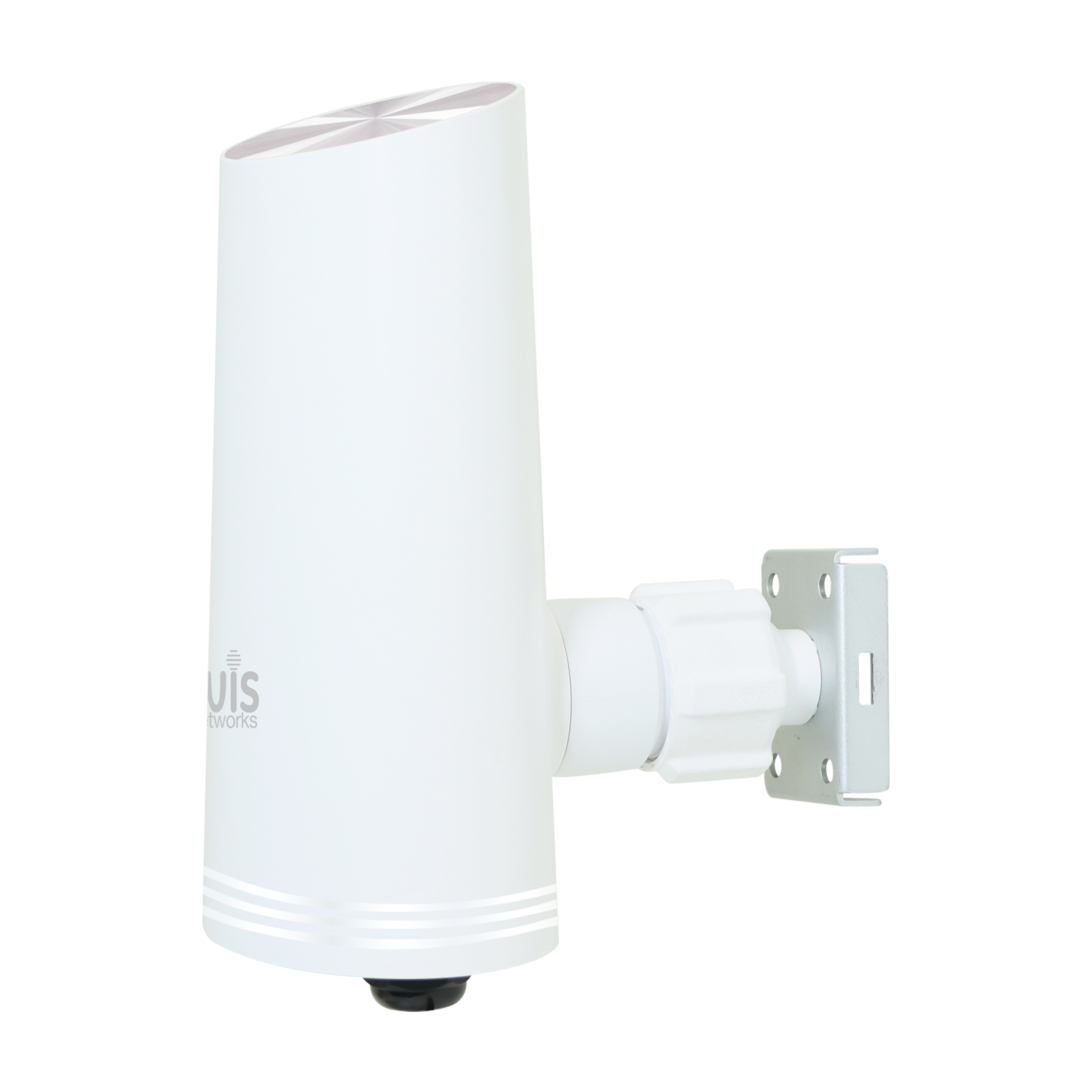

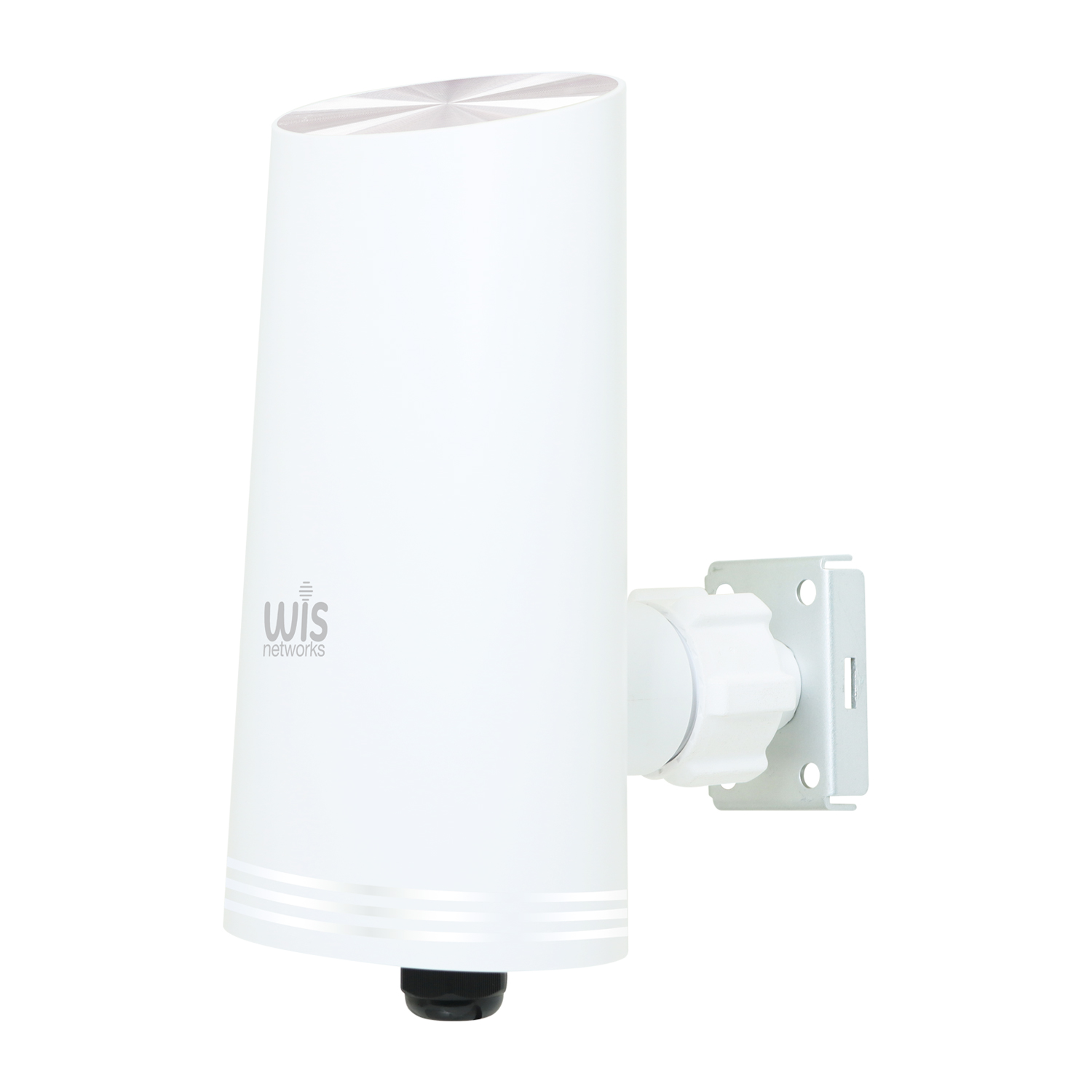

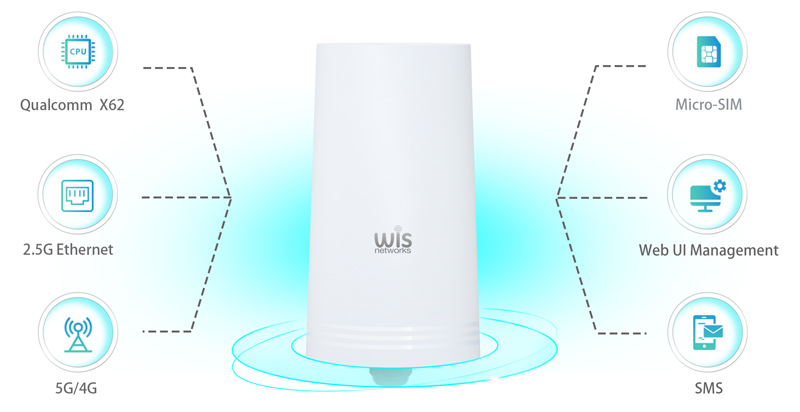

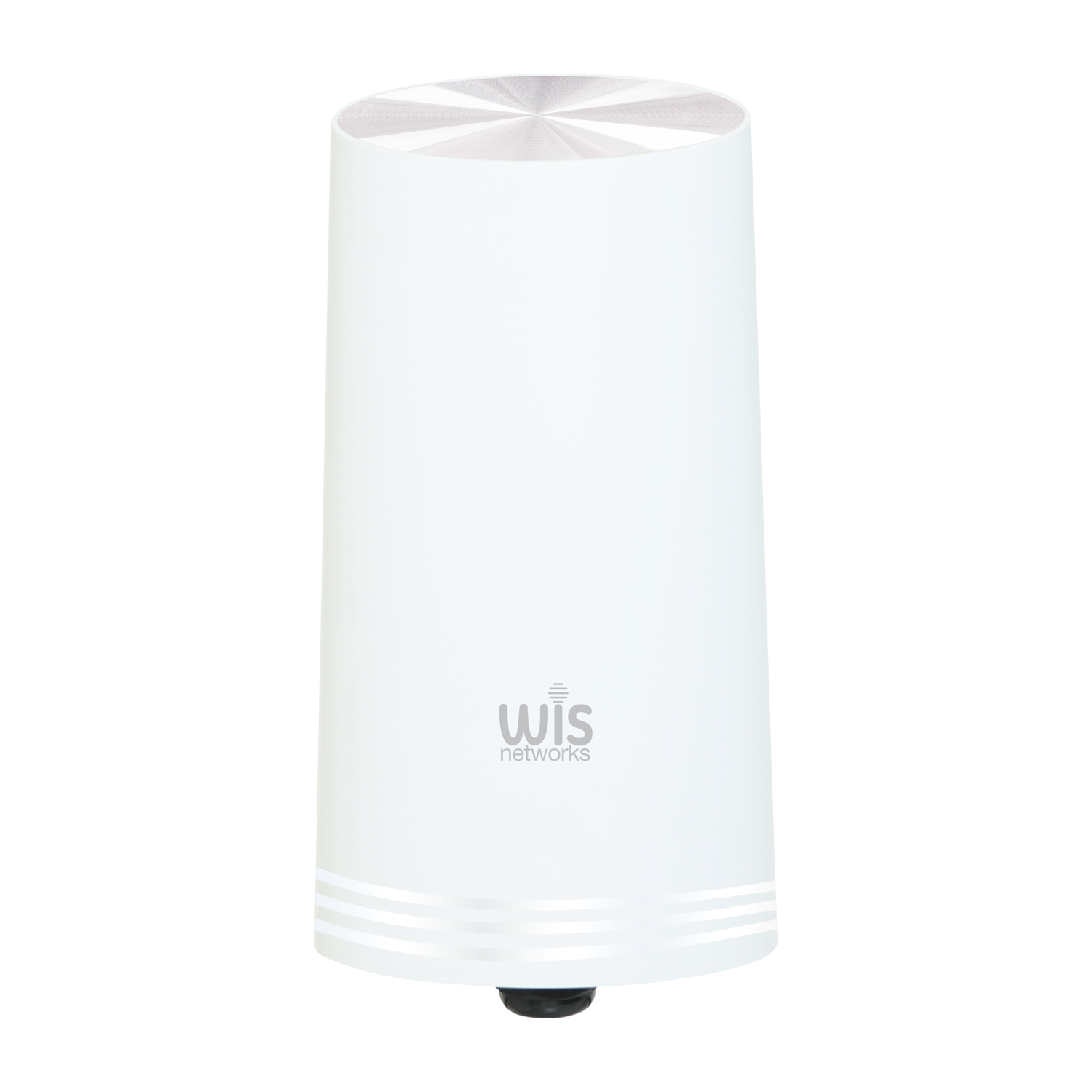

WIS’s ODU10-5G is a high-performance 5G Outdoor Unit, supports NR (SA&NSA), TDD-LTE, FDD-LTE, converts cellular network data

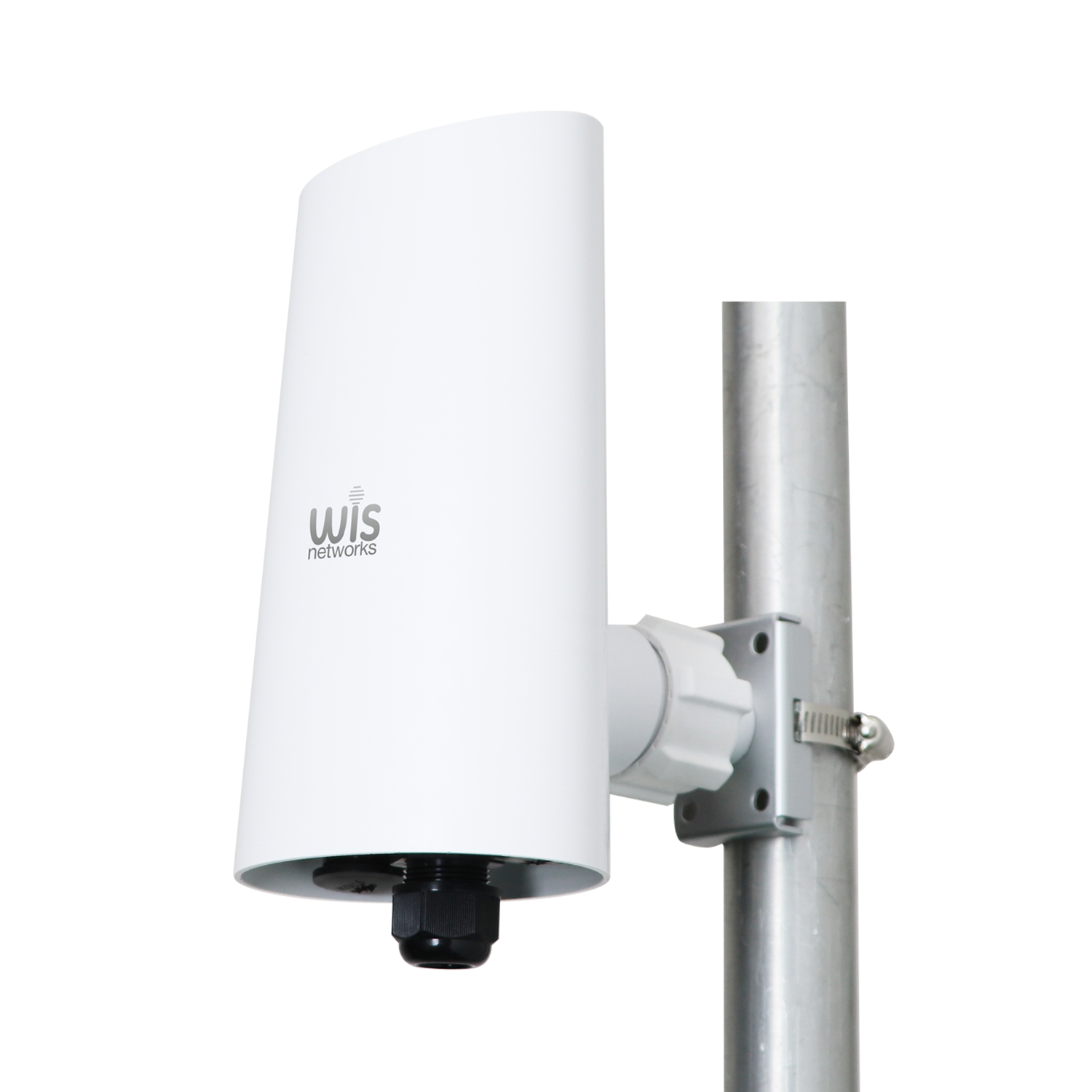

into wired network port data.It has high-speed 2.5G LAN port, PoE power supply. With metal cooling base and IP65 waterproof casing,
it is suitable for outdoor harsh environment scenarios that require rapid deployment of FWA (Fixed Wireless Access) applications.
|
Model |
ODU10-5G |
|
CPU |
Qualcomm Snapdragon X62 5G Cortex-A55@2.0GHz, Quad-core |
|
DDR3 |
1GB(8Gbit) |
|
Flash |
1GB(8Gbit) |
|
Applicable Network |
5G/4G |
|
Standard |
3GPP Release 16 |
|
Network technology |
5G Sub-6 GHz and 4G LTE Cat 19，4x4 MIMO |
|
5G Frequency Bands
|
NSA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/71/ 75/ 76/ 77/ 78 SA:n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/71/ 75/ 76/ 77/ 78 |
|
4G&3G Frequency Bands |
LTE-FDDB1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 71 LTE-TDD: B38/ 40/ 41/ 42/ 43 WCDMA: B1/ 5/ 8 |
|
Data speeds |
5G SA Sub-6 : DL 2.4Gbps; UL 900Mbps 5G NSA Sub-6: DL 3.4Gbps; UL 550Mbps LTE: DL 1.6Gbps; UL 200Mbps |
|
Antenna Frequency |
698-3800MHz |
|
LTE/5G Antenna Gain |
4x4 Mimo Antenna, Max 10dBi |
|
Led Indicator |
1*PWR,1*link,3*Signal strength |
|
SIM Card |
1*SIM card slot |
|
Ethernet |
1 x 2.5G Ethernet (RJ45), auto MDI/MDIX |
|
USB |
Type C |
|
Wi-Fi |
N/A |
|
Reset Button |
Yes,Through this button, the parameter configuration can be restored to the factory value |
|
Power Supply |
POE: 802.3af/at or 24-48V Passive |
|
Dimensions |
184*225mm |
|
Weight |
0.8kg |
|
Color |
white |
|
Environment |
Operating temperature:-20℃ ~ 40℃ Storage temperature: -20℃ ~ 70℃ Humidity: 5% ~ 95% (non-condensing) |
|
Note |
Different modules for different bands |
|
Software |
|
|
Language |
Chinese, English,Spanish,Korean,Russian,Portuguese,Hebrew |
|
Network settings |
Dynamic IP mode, PPPoE mode, static IP mode, default dynamic IP |
|
Mobile connection |
5G/4G/3G Mode, search operator, |
|
local area network |
DHCP settings, the default LAN address is 192.168.1.1/24 |
|
WiFi settings |
WiFi switch, name, password, protocol, bandwidth, channel, hidden |
|
Black and white list |
Add (can be imported from user list), delete, move black and white list |
|
WPS |
PIN code access, PBC access |
|
Band Lock |
Lock 5G/LTE connect band |
|
PCI Lock |
Lock 5G/LTE connect cell |
|
APN |
The relevant information of APN will be automatically adapted according to the inserted SIM card |
|
AT Command |
WebGui integrated AT Command interface, you can query and configure module parameters by input AT Command |
|
VPN client |
There are two main types of VPN client configuration: PPTP and L2TP |
|
SMS |
Plug in a usable SIM card, you can realize the functions of sending short messages and receiving short messages |
|
Port Mapping |
Open the local port service so that users can access the internal private network from the Internet |
|
MAC filtering |
Set access and forwarding rules based on MAC |
|
IP filtering |
Set access and forwarding rules based on IP |
|
DDNS |
DDNS maps a user's dynamic IP address to a fixed domain name resolution service, so that users can directly access it through the domain name |
|
SMNP |
Managed device through SNMP. Support SNMPV1,SNMPV2 |
|
TR069 |
The management server in the network management model defined by the TR069 protocol is called an automatic configuration server (ACS), and is responsible for the management of user terminal equipment (CPE). The ACS server can restart, reset, and upgrade CPE according to the TR069 protocol, which can realize the function of managing multiple routers |
|
change Password |
Change the login Password |
|
Backup, upgrade |
Download the backed up configuration, upload the backed up configuration, upgrade firmware |
|
Reboot, Reset |
Contains immediate reboot and reset to factory |
