LQS

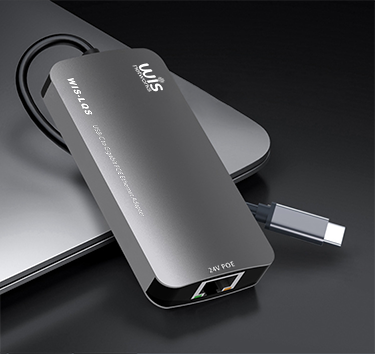

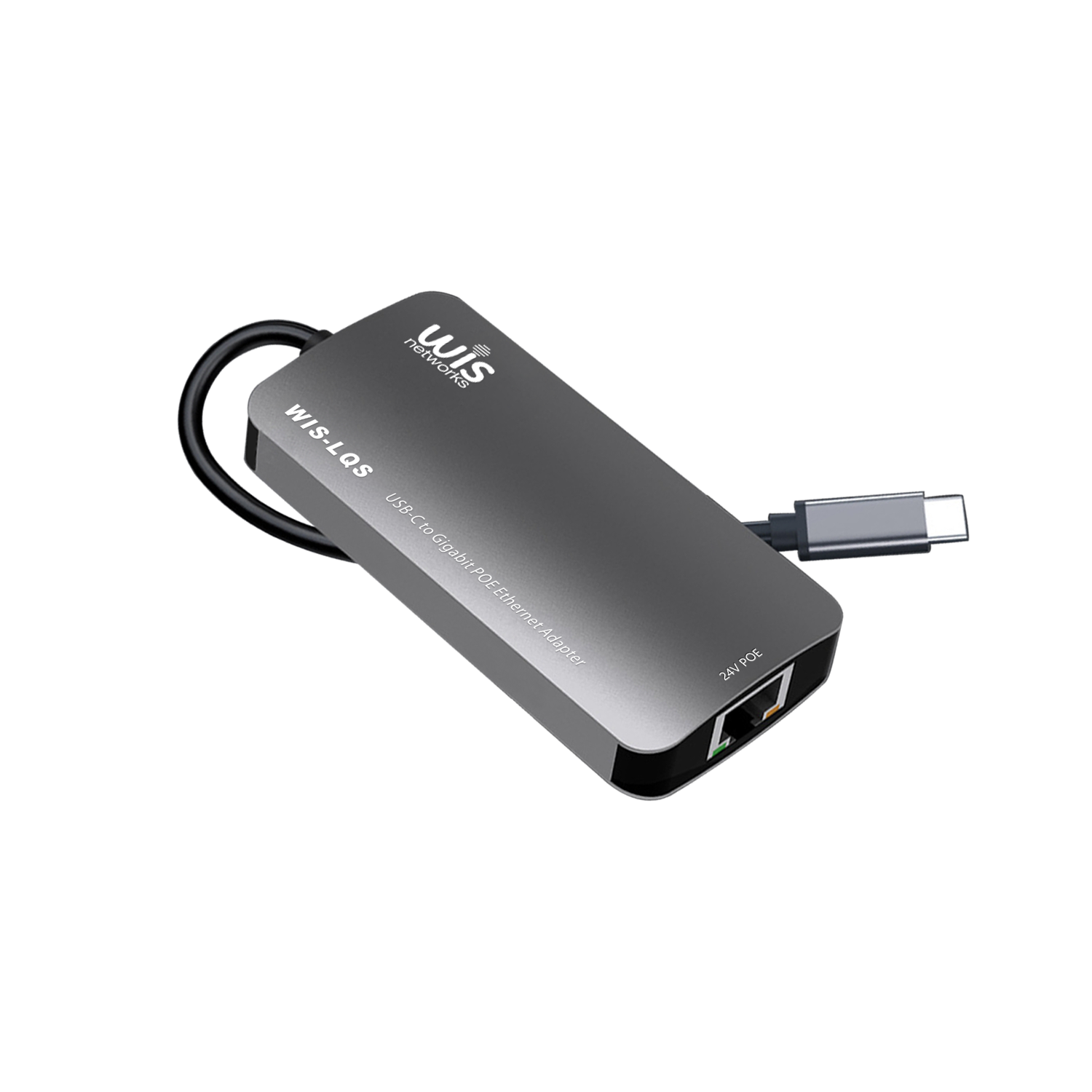

Type-C to 24V POE Adapter
Type-C Input Voltage
5~20V
POE Output Voltage
Passive 24V DC,pins4,5(+);7,8(-)
Working temperature
5 ~ 60℃
Storage temperature
-20 ~ + 80℃
Dimensions
98.4x55x16.8mm (LxWxH)
Weight
60g
  • LQS
  • LQS
  • LQS
  • Features

  • Specification

  • Downloads

Product Overview

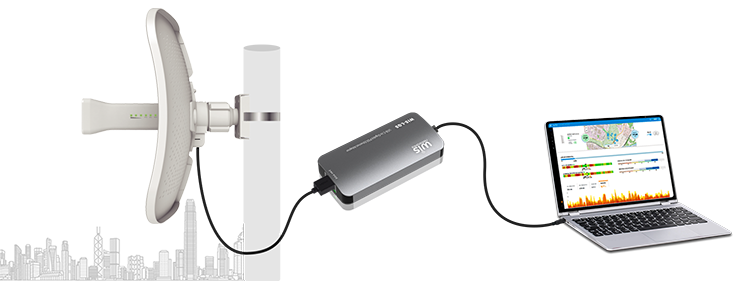

● Suitable for power supply and data transmission to 24V PoE equipment,such as Wireless Bridge,AP,Router,etc.
● Compatible with Windows XP/Vista/win7/win8.1/win10(32/64 bit) system,Linux system;Win8.1 or above driver free.
● Supports IEEE 802.3az energy efficient Ethernet,compatible with IEEE 802.3/802.3u and 802.3ab
● Integrated 10/100/1000Mbps Gigabit Ethernet Port,support Auto MDI/MDIX
● Support IPv4/IPv6 network protocol
● It integrates USB 3.0 phy and controller and is compatible with USB 3.0,2.0 and 1.1 specifications
● Built in ESD device can carry ± 4KV static electricity,which can effectively avoid the damage of static electricity caused by hot plug to the chip.
● Pure copper wire core,more stable transmission.
● The aluminum alloy shell is solid,wear-resistant and corrosion-resistant, which can prolong the service life of the product



Technical parameter
Model LQS
Type-C Input Voltage 5~20V
POE Output Voltage Passive 24V DC,pins4,5(+);7,8(-)
LAN Gigabit
LAN light Orange: 100Mbps link; Blinking: Data transmission
Green: 1000Mbps link; Blinking: Data transmission
Dimensions 98.4x55x16.8mm (LxWxH)
Cable length 150mm
Weight 60g
Working temperature 5 ~ 60℃
Storage temperature  -20 ~ + 80℃
