Product Overview

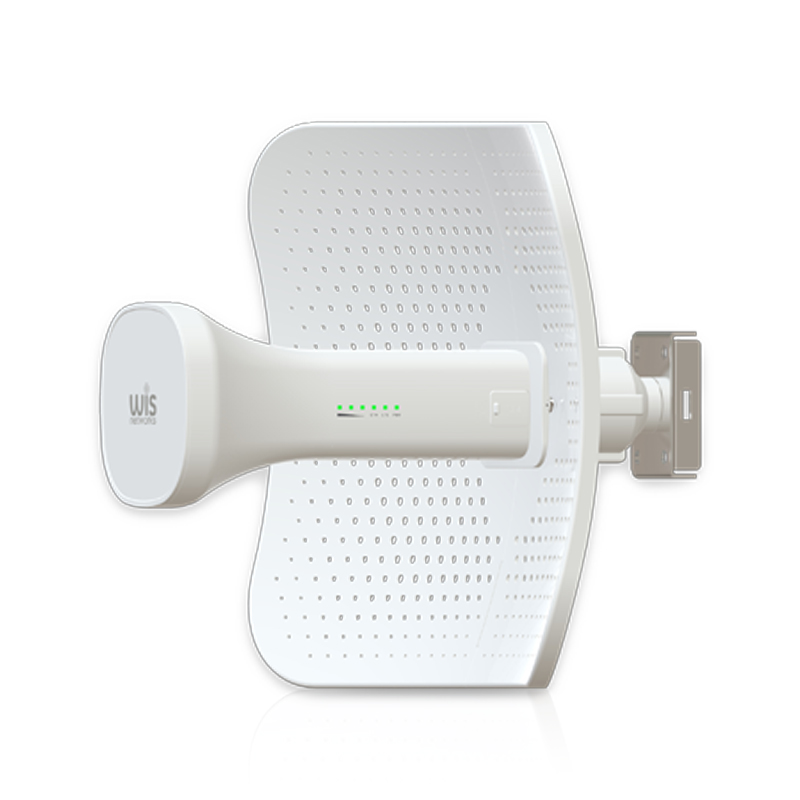

The WIS-H19G is an integrated high gain 19dBi Cat6 4G LTE Outdoor CPE. It supports maximum 300Mbps of the downlink for LTE to provide stable and
high-speed wireless broadband access to residential and SMB/SOHO users. Powered by PoE, equipped with the high gain dish antenna and complied with
Ingress Protection Rating IP65, it's able to deliver stable mobile broadband access in any situation.

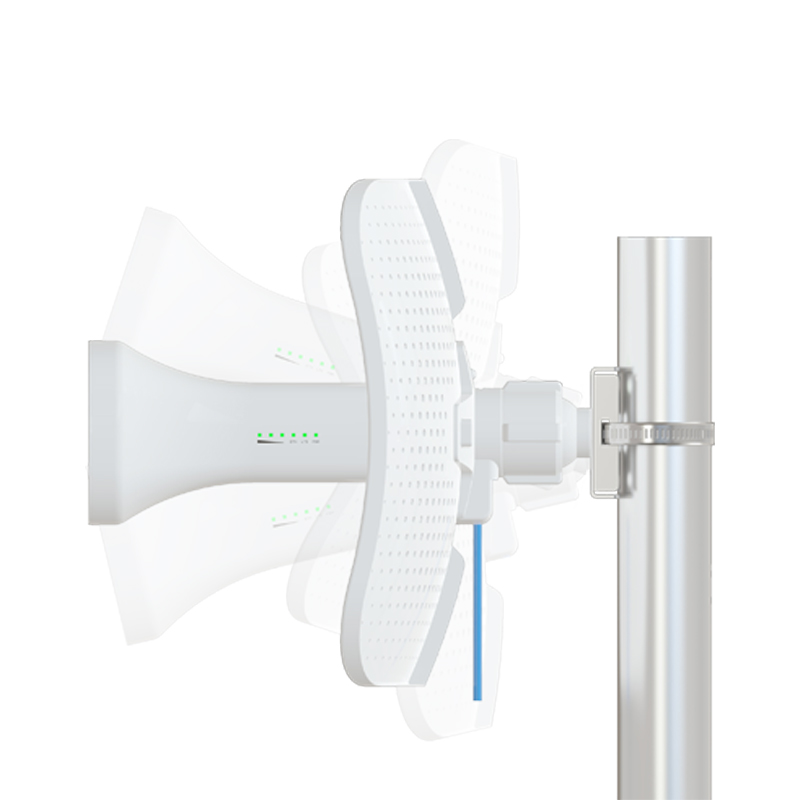

Unit is designed, for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure,
and connect even where cell phones can't. Due to it's large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations,
giving you the ability to provide last mile internet access where nothing else is available.

Features
●  LTE Category 6, 300 (DL)/50 (UL)
●  Support LTE FDD/LTE TDD/WCDMA radio systems
●  24v Power over Ethernet
●  19dBi Directional Antenna
●  IP65 Design, suitable in harsh environment
●  1 x SIM Card Slot

Cat 6 Module
EU Module
●  LTE-FDD ：B1/B3/B5/B7/B8/B20/B28/B32
●  LTE-TDD ：B38/B40/B41
●  2 x CA ： B1+B1/B5/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28;
●  WCDMA： B1/B3/B5/B8

EU Module
● LTE-FDD :B2/B4/B5/B7/B12/B13/B25/B26/B29/B30/B66
● 2 x CA ：B2+B2/B5/B12/B13/B29; B4+B4/B5/B12/B13/B29; B7+B5/B7/B12/B26; B25+B5/B12/B25/B26;
B30+B5/B12/B29; B66+B5/B12/B13/B29/B66
● WCDMA:B2/B4/B5

Software
- Router：IPv4, Static Routing, Routing Forwarding
- APN
- Dynamic NAT switch
- DHCP Server
- DHCP Rela

Product code	H19G
Architecture	MIPSBE
CPU	MTK7621A
Size of RAM	256MB
Flash	16MB
Communication Standard	3GPP , LTE CAT6
Applicable Network	4G
4G Transmission Rate	300 Mbps / 50 Mbps (Theoretical value. The actual rate depends on the operator.)
Antenna Frequency Range	1.7-4.2GHz 2X2 MIMO
Antenna Gain	19dBi Directional Antenna
Network Port	1 GE port, 1 SIM card slot (Micro-SIM)
Software Functions	IPv4, Static Routing, Routing Forwarding APN Dynamic NAT switch DHCP Server DHCP Rela
Power Supply	PoE, 24V DC
Power Consumption	<12W
Led Indicator	Power/LTE/ETH/Signal Strength
Temperature	Operating temperature: 0 °C ~ 40 °C, storage temperature: -20 °C ~ +70 °C Humidity: 5% ~ 95% (non-condensing)
Dimensions	350270285mm
Protection Level	IP65
Weight	2kg
