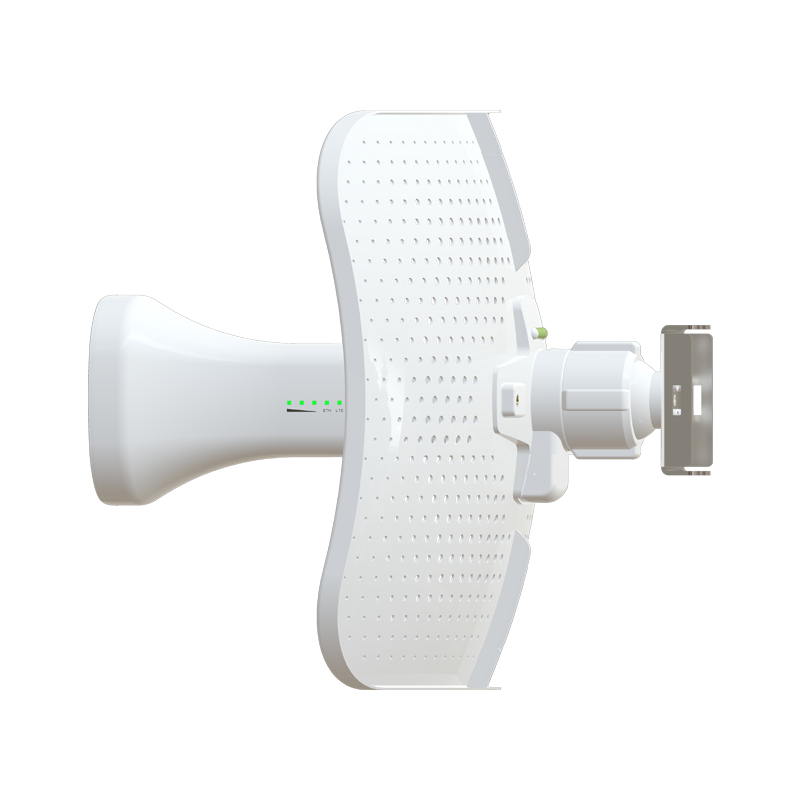

Product Overview
The WIS-H19-LTE is an integrated high gain 19dBi Cat4 4G LTE Outdoor CPE. It supports maximum 150Mbps
of the downlink for LTE to provide stable and high-speed wireless broadband access to residential and
SMB/SOHO users. Powered by PoE, equipped with the high gain dish antenna and complied with Ingress Protection Rating IP65,
it's able to deliver stable mobile broadband access in any situation.
Features
● LTE Category 4, 150 (DL)/50 (UL)
● Support LTE FDD/LTE TDD/WCDMA radio systems
● 24v Power over Ethernet
● 19dBi Directional Antenna
● IP65 Design, suitable in harsh environment
● 1 x SIM Card Slot
Cat 4 Module
EU Module
● LTE-FDD: B1/3/5/7/8/20
● LTE-TDD: B40
● WCDMA: B1/5/8
● GSM: 900/1800
US Module
● LTE-FDD: B2/4/5/12/13/17/18/25/26
● LTE-TDD: B41
● WCDMA: B2/4/5
● CDMA&EVDO: BC0/BC1 GSM: 850/1900

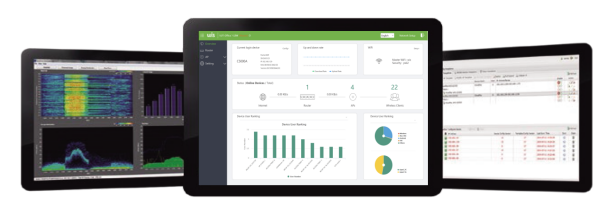

Software
- Router：IPv4, Static Routing, Routing Forwarding
- APN
- Dynamic NAT switch
- DHCP Server
- DHCP Rela
|
Product code |
H19 |
|
Architecture |
MIPSBE |
|
CPU |
MTK7628N |
|
Size of RAM |
64 MB |
|
Flash |
16MB |
|
Communication Standard |
-- 3GPP , LTE CAT4 |
|
Applicable Network |
-- 3G/4G |
|
4G Transmission Rate |
150Mbps / 50Mbps (Theoretical value. The actual rate depends on the operator.) |
|
Antenna Frequency Range |
1.7-4.2GHz 2X2 MIMO |
|
Antenna Gain |
19dBi Directional Antenna |
|
Network Port |
1 10/100Mbps port, 1 SIM card slot (Micro-SIM) |
|
Software Functions |
IPv4, Static Routing, Routing Forwarding APN Dynamic NAT switch DHCP Server DHCP Rela |
|
Power Supply |
PoE, 24V DC |
|
Power Consumption |
<10W |
|
Led Indicator |
Power/LTE/ETH/Signal Strength |
|
Temperature |
Operating temperature: 0 °C ~ 40 °C, |
|
Dimensions |
350*270*285mm |
|
Protection Level |
IP65 |
|
Weight |
2kg |
