Model |
E620 |
|
CPU |
Qualcomm Quad A53 @ 1.5GHz |
|
Operating Frequency |
5.9-7.125GHz |
|
Wireless Standards |
WIFI 7 / 802.11be |
|
Channel Width |
20|40|80|160|320 MHz |
|
Proprietary Physical Layer |
2x2 MIMO |
|
Networking interface |
1*2.5Gigabit Ethernet + 1*2.5Gbps SFP+ |
|
Max Output Power |
26dBm |
|
Antenna Frequency |
5.1-7.125GHz |
|
Antenna Gain |
20dBi Dual Linear |
|
Antenna Beam width |
E:30°/ H30° |
|
Antenna Materials |
Die-cast aluminum |
|
LEDs |
1*Power, 1*SYS, 1*Wi-Fi |
|
Power Supply |
PoE 22-56V, or DC 12V |
|
Power Consumption |
<16W |
|
Surge suppression |
6KV |
|
Weatherproof Enclosure |
IP67 |
|

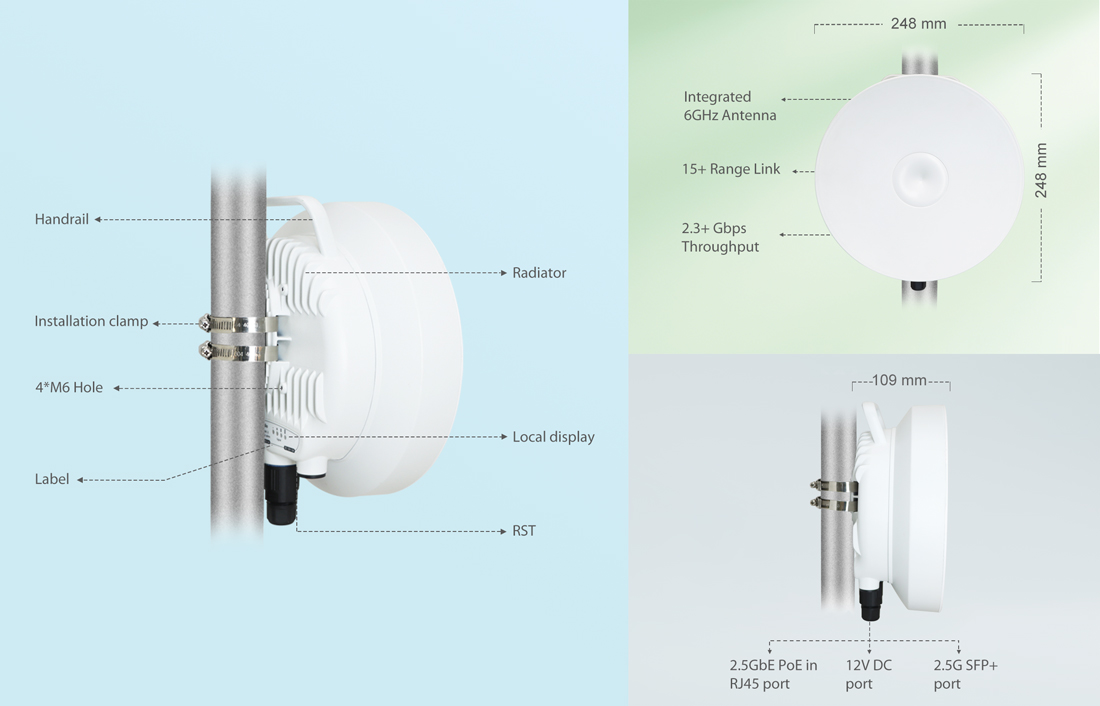

Antenna Size |
Φ24 cm |
|
Weight |
1.5kg |
|
Temperature |
-30°C to 60°C |
|
Network Mode |
Bridge/Router |
|
Firewall |
Port Forwarding ,DMZ,ACL Filtering |
|
Wireless Security |
WPA-PSK，WPA2-PSK,WPA/WPA2-PSK（AES/TKIP） |
|
VLAN |
802.1Q |
|
DHCP |
DHCP Server、DHCP Client |
|
SNMP |
√ |
|
TR069 |
√ |
|
PoE |
included |
