Product Overview

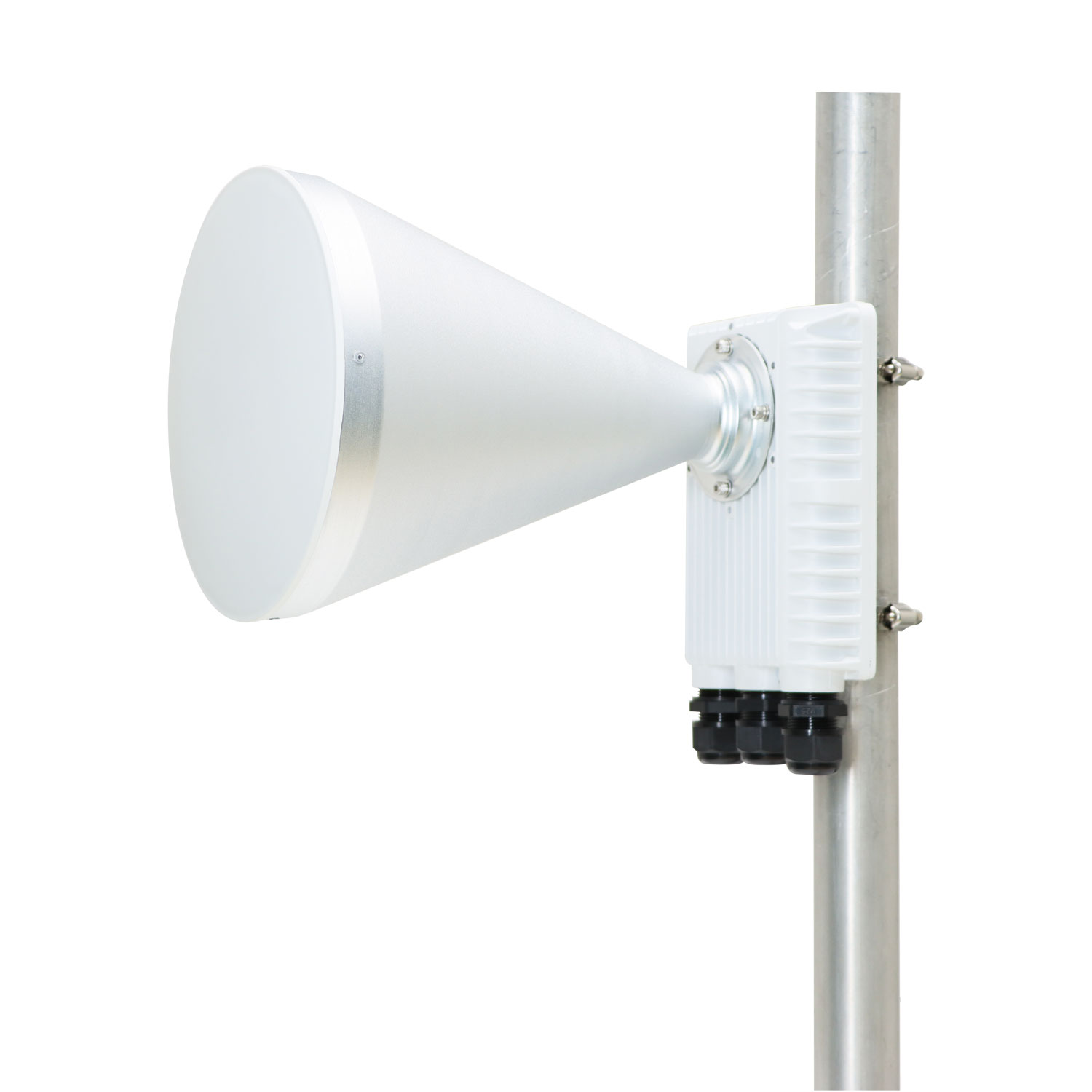

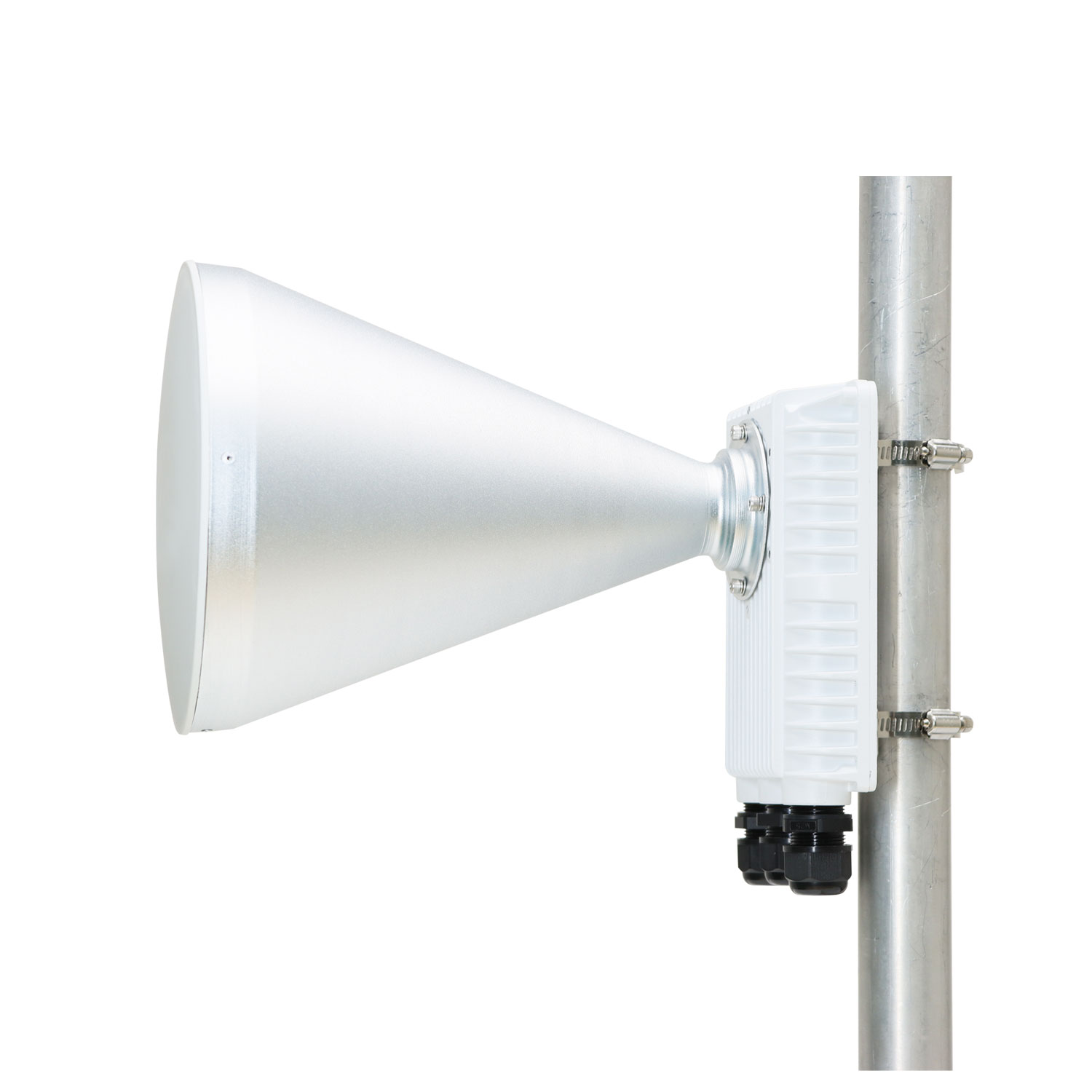

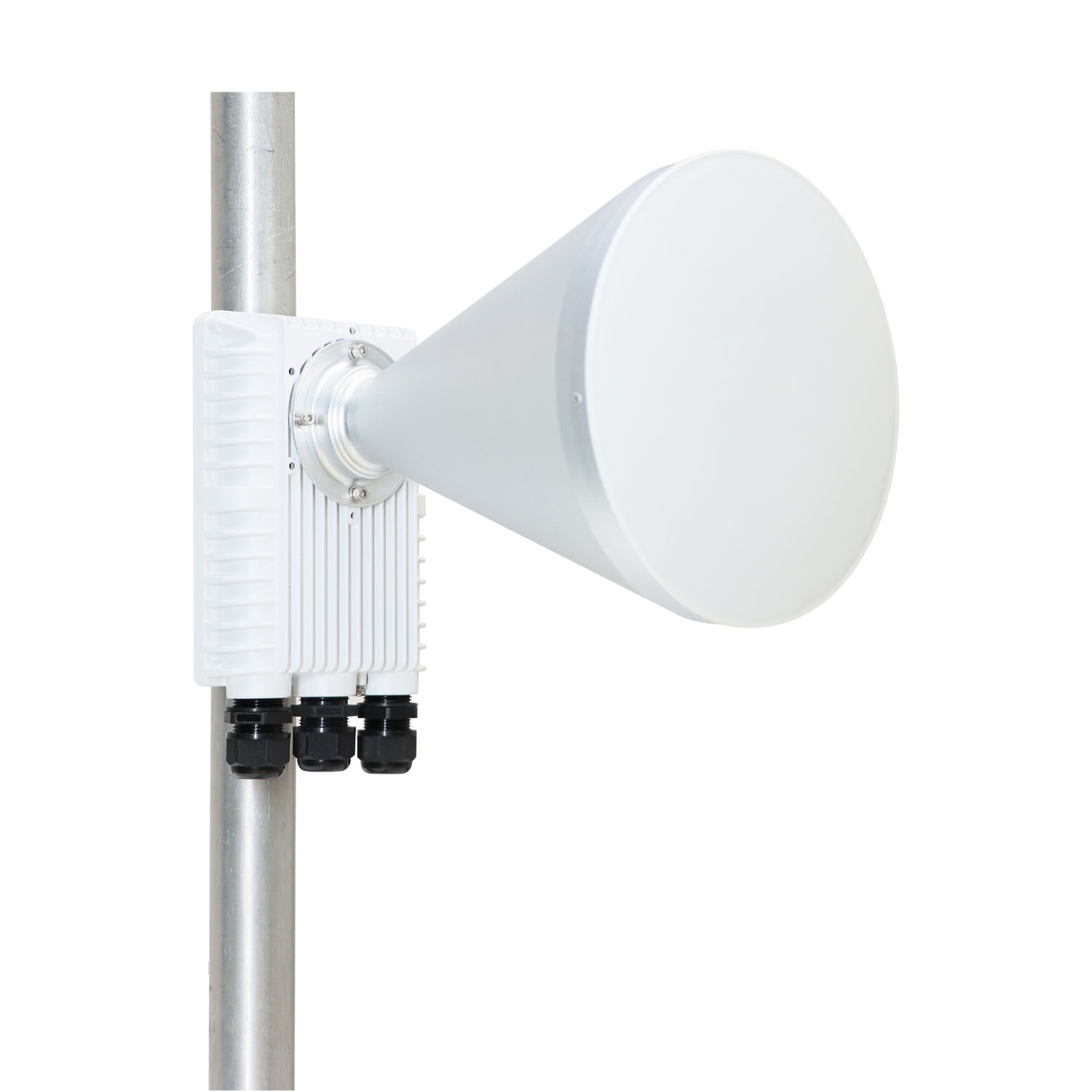

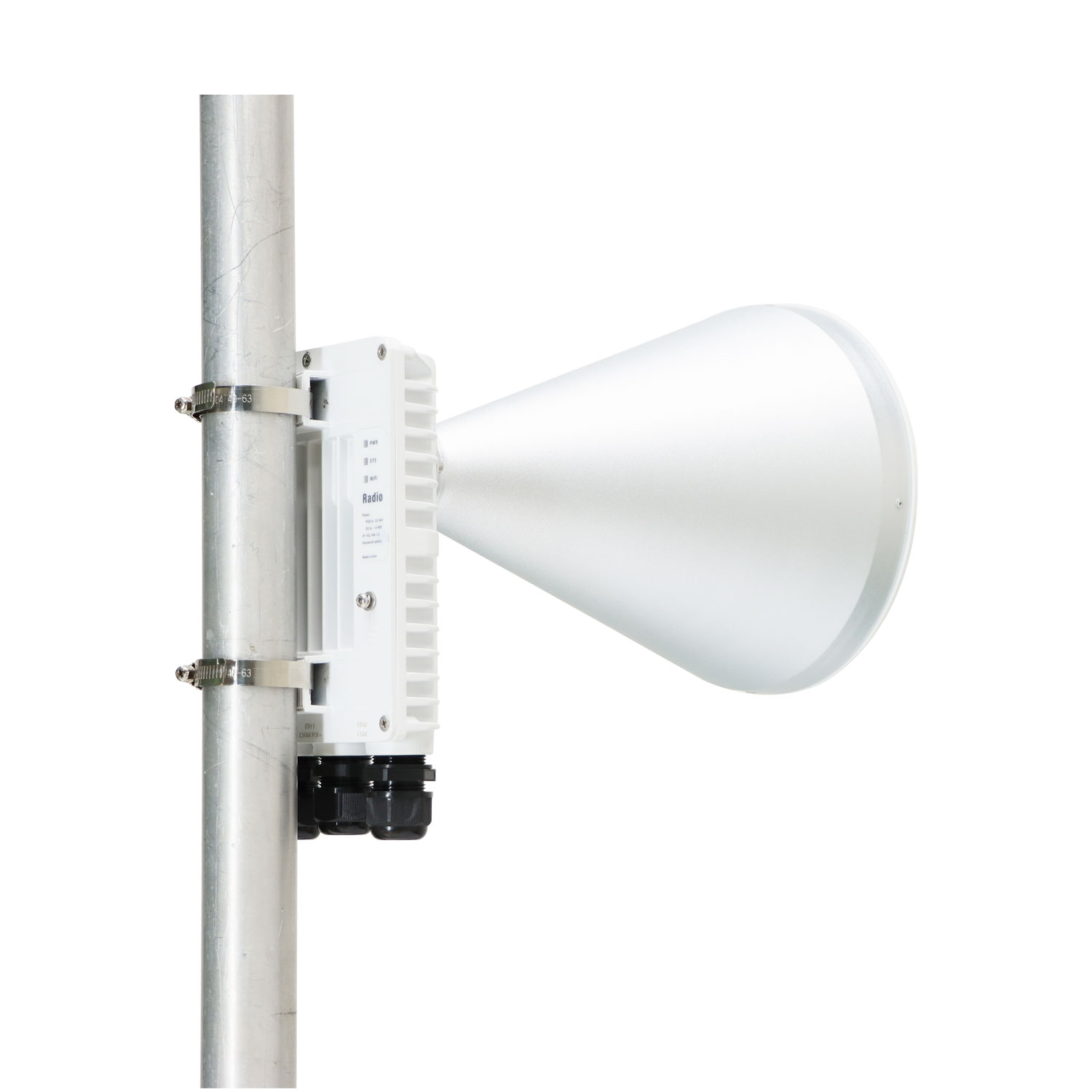

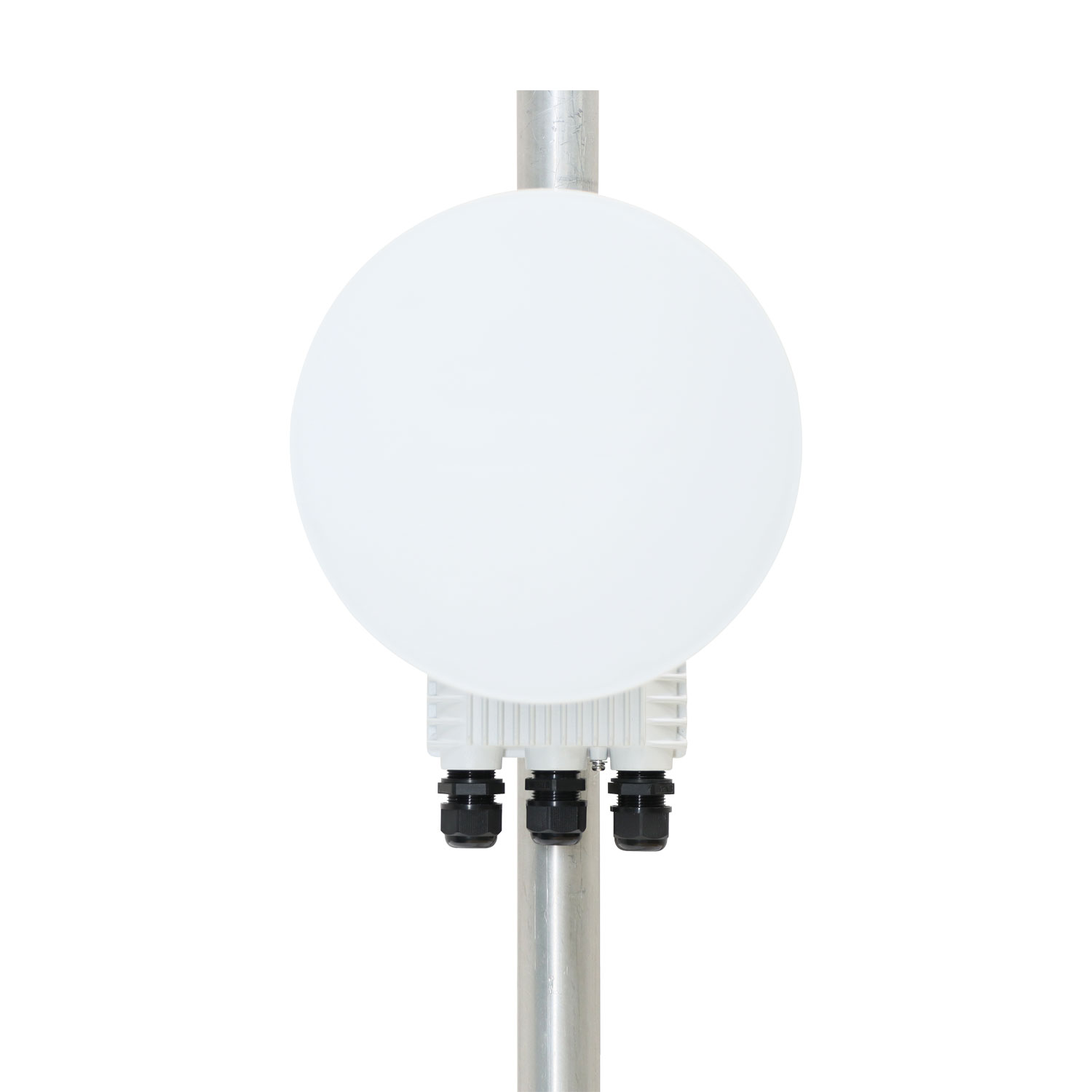

The kit with external 20dBi 30° isolation horn antenna.
The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase
the noise immunity of the E6. This feature is especially important in an increasingly congested RF environment.

Features

❄ Integrated 6GHz advanced filtering performance
❄ 2.3Gbps+ throughput
❄ 320 MHz Channel Width
❄ Supports both 802.3at PoE+ (PoE included) and DC power supply for flexible installations.
❄ 20dBi high-gain 2×2 MIMO Horn Antenna
❄ IP67 weatherproof

Model	E5-H20-1pk	E6-H20-1pk
CPU	Qualcomm Quad A53 @ 1.5GHz
Operating Frequency	5180-6415MHz (restricted by country of operation)	5.955-7.115GHz
Wireless Standards	Wi-Fi 7/802.11be Wi-Fi 7
Channel Width	20\|40\|80\|160\|320 MHz
Proprietary Physical Layer	2x2MU-MIMO
Networking interface	2.5G SFP+2.5*Gigabit
Transmit Power Range	Max 27dBm
Antenna Frequency Range	4.9-7.125GHz
Antenna Gain	20dBi Dual Linear
Azimuth Beam Width -6 db	30°
Elevation Beam Width -6 db	30°
LEDs	1Power, 1SYS, 1*Wi-Fi
Power Supply	PoE 22-56V, or DC 12V
Power Consumption	<16W
Surge suppression	8KV
Weatherproof Enclosure	IP67
Antenna Size	Φ21*30 cm
Weight	1.5kg
Temperature	-30°C to 60°C
Working mode	AP WDS、Client WDS
Network Mode	Bridge/Router
Firewall	Port Forwarding ,DMZ,ACL Filtering
Wireless Security	WPA-PSK，WPA2-PSK,WPA/WPA2-PSK（AES/TKIP）
VLAN	802.1Q
DHCP	DHCP Server、DHCP Client
SNMP	√
TR069	√
PoE	included

Package Size & Weight

LibreNMS is an open-source network monitoring tool that can monitor a wide range of network devices and also different operating systems such as Linux, Windows as well and pretty much anything that supports SNMP polling.

The top features of LibreNMS monitoring tool:

Automatic Discovery – It will automatically discover your entire network using CDP, FDP, LLDP, OSPF, BGP, SNMP, and ARP.
Customizable Alerting – Supports a customizable alerting system to send notifications through email, IRC, slack, and more.
Customizable Dashboards – It has a mobile-friendly Web UI, with customizable dashboards.
Integration Support – Supports integration with NfSen, collected, SmokePing, RANCID, and Oxidized.
Multiple Authentication Methods – Supports multiple authentication methods such as MySQL, HTTP, LDAP, Radius, and Active Directory.
Billing system – Easily generate bandwidth bills for ports on your network based on usage or transfer.
API Access – Supports an API for managing, graphing, and retrieving data from your system.
Automatic Updates – With LibreNMS you get to stay up to date automatically with new features and bug fixes.
