Product Overview

Asymmetrical horn antenna have naturally attenuated side lobes and extremely low back radiation,

and they offer industry-leading front-to-back ratio and low side lobe radiation.

Symmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

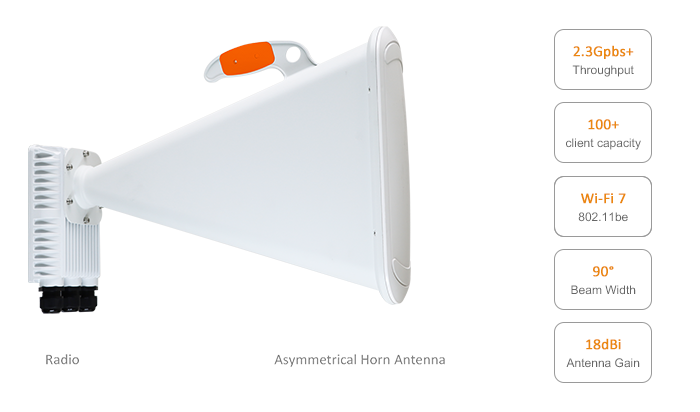

Features

❄ Integrated 6GHz advanced filtering performance
❄ 2.3Gbps+ throughput
❄ 320 MHz Channel Width
❄ 100+ client capacity
❄ Supports both 802.3at PoE+ (PoE included) and DC power supply for flexible installations.
❄ 18dBi high-gain 2×2 MIMO Asymmetrical Horn Antenna
❄ IP67 weatherproof

Model	E6-H18-1pk
CPU	Qualcomm Quad A53 @ 1.5GHz
Operating Frequency	5.955-7.115GHz
Wireless Standards	Wi-Fi 7/802.11be
Channel Width	20\|40\|80\|160\|320 MHz
Proprietary Physical Layer	2x2
Networking interface	2.5G SFP+2.5*Gigabit
Transmit Power Range	Max 27dBm
Antenna Frequency Range	4.9-7.125GHz
Antenna Gain	18dBi Dual Linear
Azimuth Beam Width -6 db	90°
Elevation Beam Width -6 db	25°
Antenna Materials	Die-cast aluminum
RF connections	Internal
LEDs	1Power, 1SYS, 1*Wi-Fi
Power Supply	PoE 22-56V, or DC 12V
Power Consumption	<16W
Surge suppression	8KV
Weatherproof Enclosure	IP67
Antenna Size	503410cm
Weight	2.5kg
Temperature	-30°C to 60°C
Working mode	AP WDS、Client WDS
Network Mode	Bridge/Router
Firewall	Port Forwarding ,DMZ,ACL Filtering
Wireless Security	WPA-PSK，WPA2-PSK,WPA/WPA2-PSK（AES/TKIP）
VLAN	802.1Q
DHCP	DHCP Server、DHCP Client
SNMP	√
TR069	√
PoE	included

LibreNMS is an open-source network monitoring tool that can monitor a wide range of network devices and also different operating systems such as Linux, Windows as well and pretty much anything that supports SNMP polling.

The top features of LibreNMS monitoring tool:

Automatic Discovery – It will automatically discover your entire network using CDP, FDP, LLDP, OSPF, BGP, SNMP, and ARP.
Customizable Alerting – Supports a customizable alerting system to send notifications through email, IRC, slack, and more.
Customizable Dashboards – It has a mobile-friendly Web UI, with customizable dashboards.
Integration Support – Supports integration with NfSen, collected, SmokePing, RANCID, and Oxidized.
Multiple Authentication Methods – Supports multiple authentication methods such as MySQL, HTTP, LDAP, Radius, and Active Directory.
Billing system – Easily generate bandwidth bills for ports on your network based on usage or transfer.
API Access – Supports an API for managing, graphing, and retrieving data from your system.
Automatic Updates – With LibreNMS you get to stay up to date automatically with new features and bug fixes.
