D56

Wi-Fi 6 / Wi-Fi 6e Diplexers
5GHz Low Passband
4900MHz- 5850MHz
Isolation
>35dBi@5925-7125MHz
Insertion loss
<1dBi
VSWR
<1.4
5GHz Low Passband
5925MHz-7125MHz
Isolation
>35dBi@4900-5850MHz
Connectors
N Female
Operating temperature range
-20°C to +65°C
Dimensions
185*166*27mm
Weight
0.8kg
  • D56
  • D56
  • D56
  • D56
  • D56
  • Features

  • Specification

  • Downloads

Product Overview

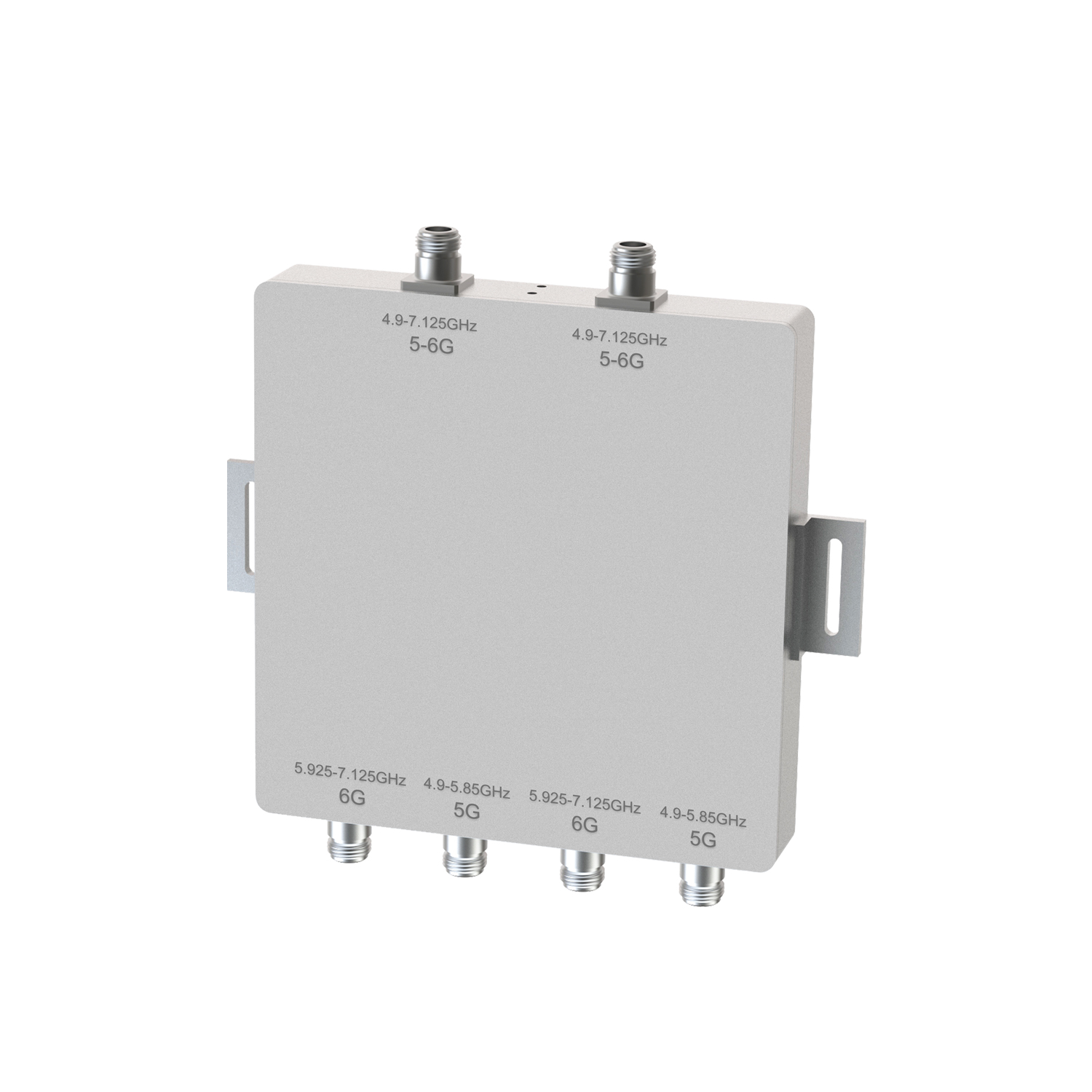

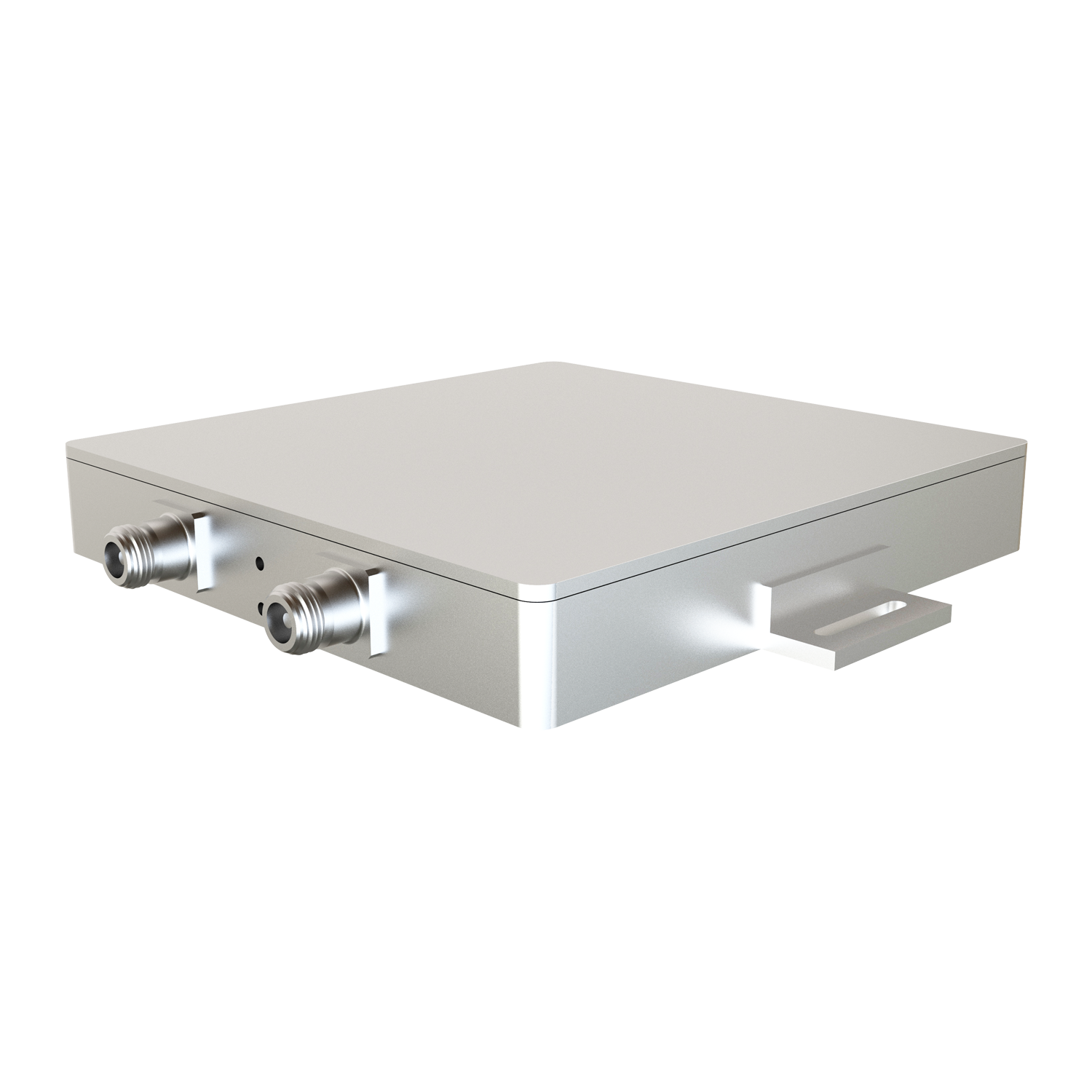

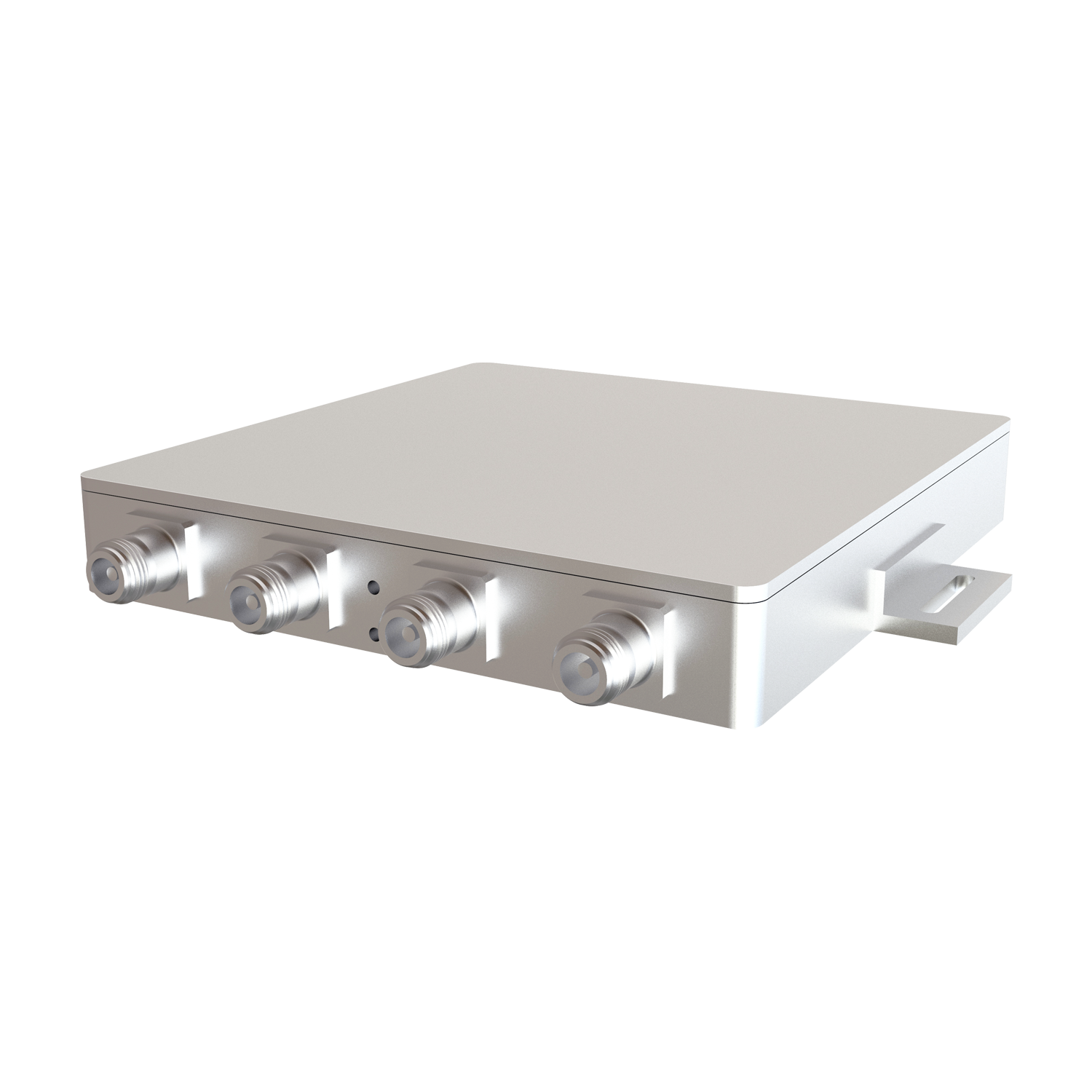

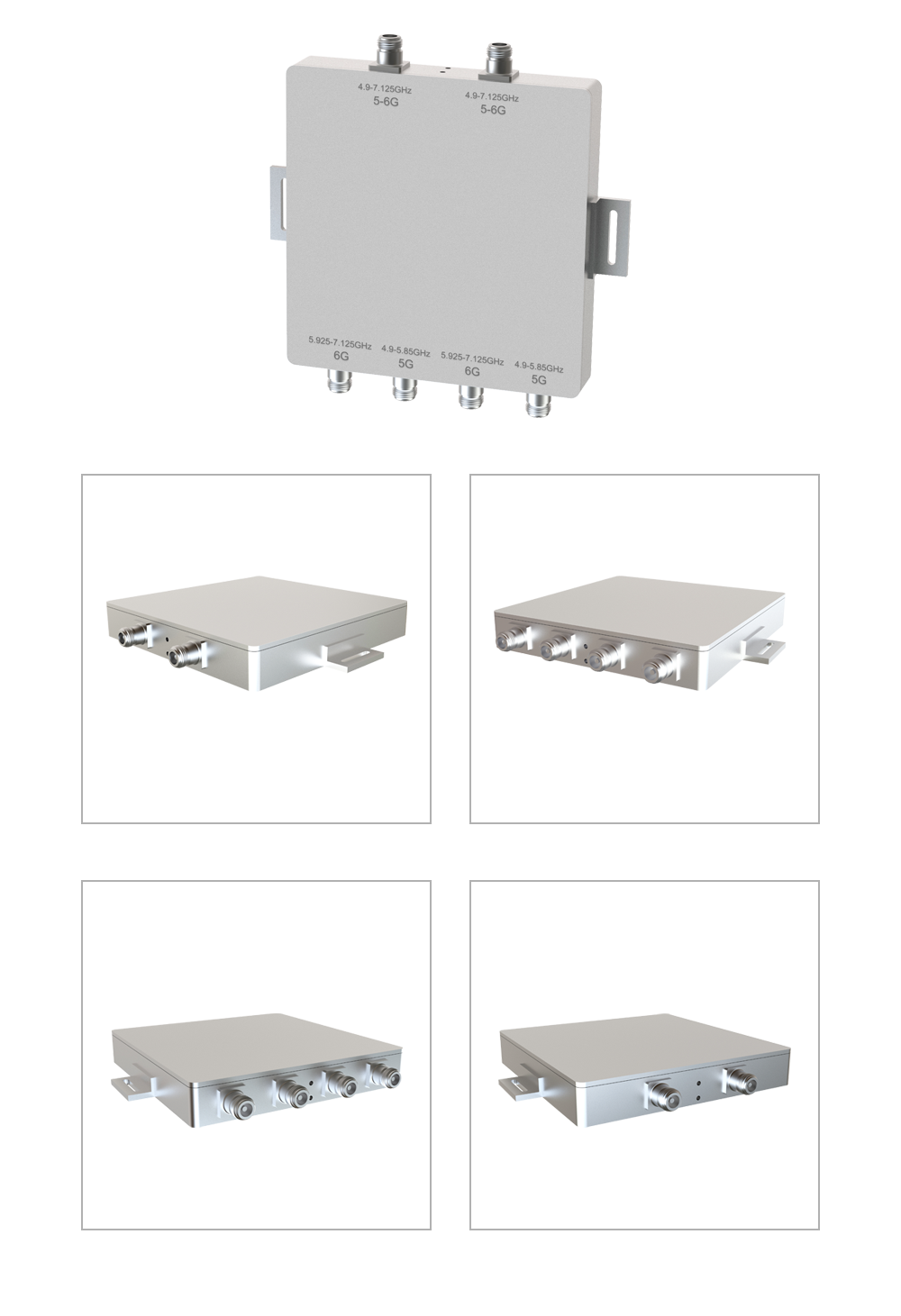

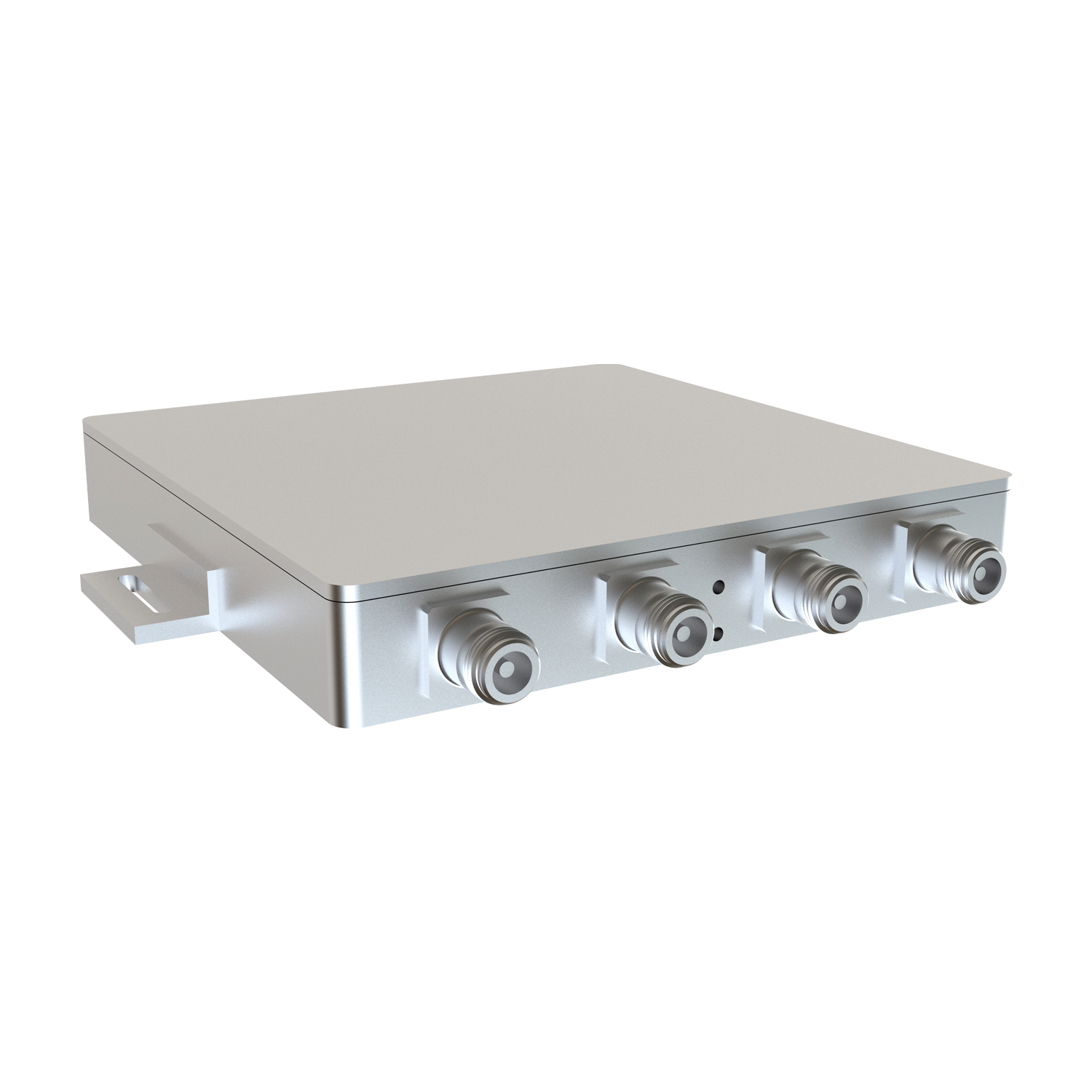

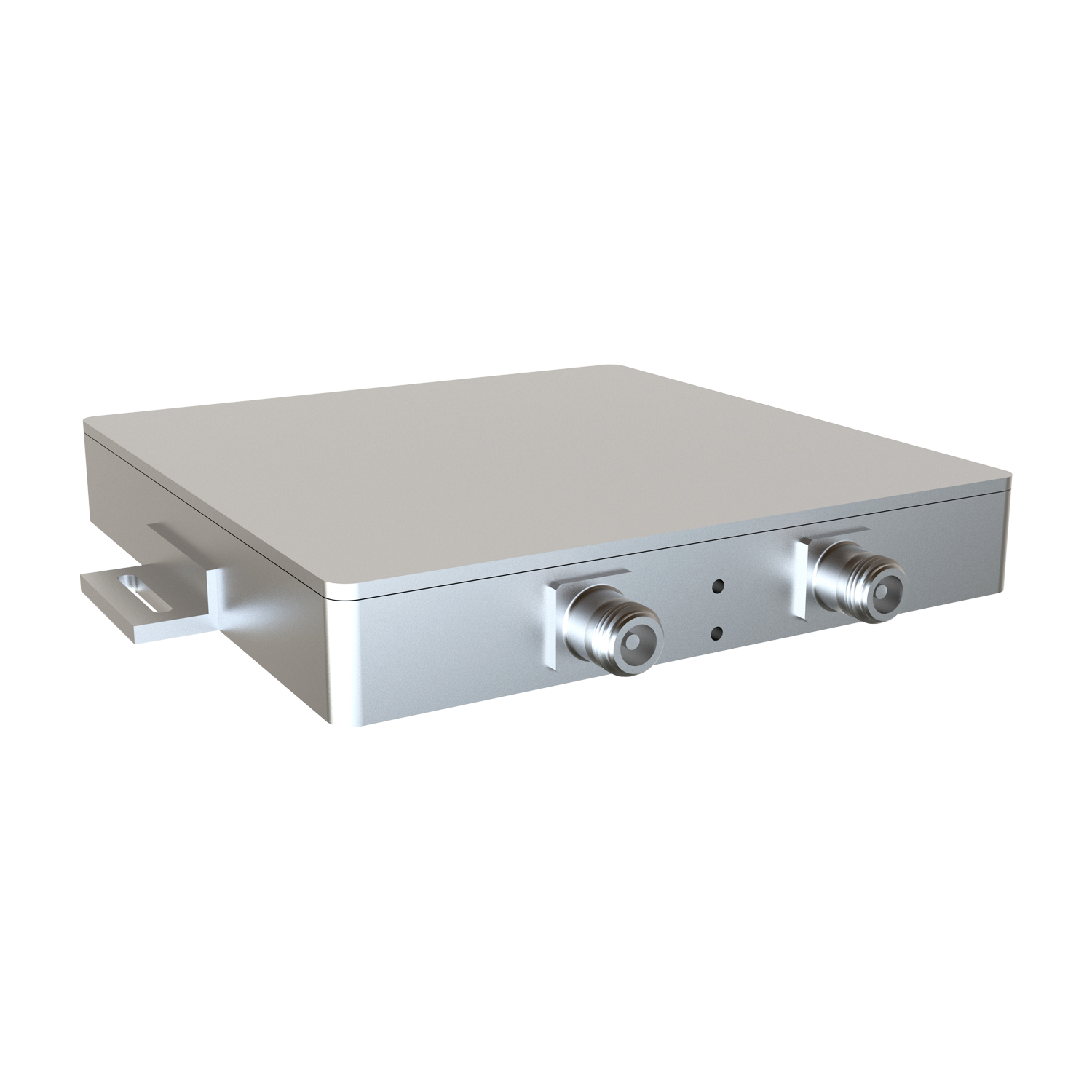

Outdoor High Performance Diplexer for 5GHz / 6GHz

The D56 Diplexer multiplexes a 5GHz and a 6GHz signal onto one cable. The D56 can also be used to split 5GHz and
6GHz from a single radio feed to separate 5GHz and 6GHz antennas. The D56 features exceptionally low insertion
loss and high isolation. This is ideal for sharing an expensive low- loss coax cable when running two separate radios.




5GHz Low Passband: 4900MHz- 5850MHz
Isolation >35dBi@5925-7125MHz Input Power 50W
Insertion loss <1dBi Impedance Impedance
VSWR <1.4
5GHz Low Passband: 5925MHz-7125MHz
Isolation >35dBi@4900-5850MHz Input Power 50W
Insertion loss <1dBi Impedance 50ohm
VSWR <1.4
Connectors N Female
Operating temperature range -20°C to +65°C
Weatherproof Enclosure IP67
Dimensions 185*166*27mm
Weight 0.8kg
