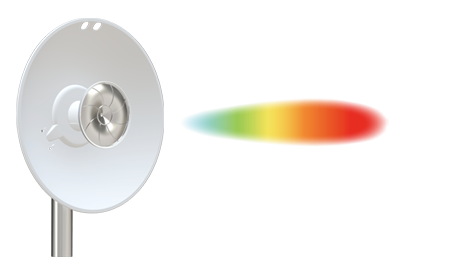

D525AX is a 1201Mbps 2*2 MIMO Hi-Power outdoor wireless dish bridge based on 802.11ax technology.
It is industry die-cast IP65 design with high performance, cost-effective and dedicated to long distance wireless network solutions.
Featuring the revolutionary Mu-Mimo technology, D525AX is fully compatible with Wisnetworks base station and
CPE thus greatly improving the network scalability in throughput and latency. With 25dBi dual-polarized dish antenna,
a pair of D525AX can easily build 10km+ long range wireless connection and keep a high speed rate.

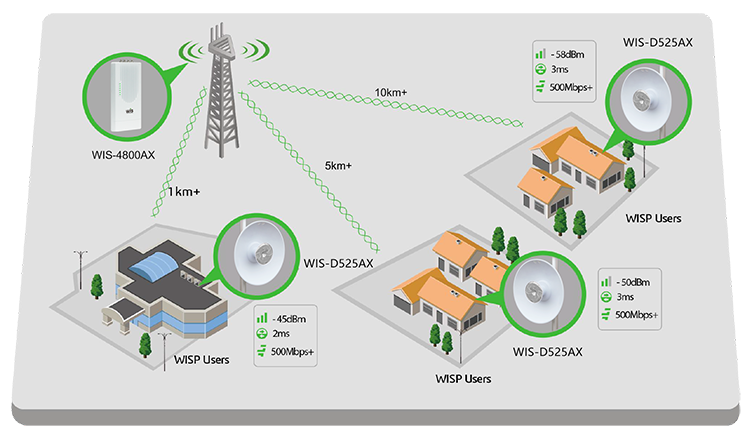

D525AX is best applied to rural wireless Internet, wireless backhaul and other industrial wireless solutions.

Incredible Long Range
●  Up to 27dBm Tx Power
●  25dBi MIMO Dish antenna
●  Wireless Speed up to 1201Mbps
●  Narrower Beamwidth for noise immunity

Wireless Solutions for Surveillance

●  Cost-effective passive PoE
●  IP65 Waterproof
●  Multiple mounting methods
●  Extremely Amazing Performance

Full Feature & Performance

●  Full WisOS TDMA Support
●  Auto-Distance Adjust
●  10km+ Availability

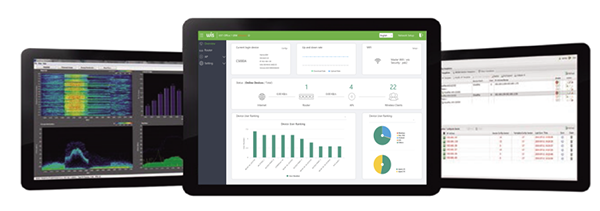

●  Fully Managed by WiController

Features and Benefifits
25dBi dish antenna to build robust wireless PtP link
Compliant with 802.11acx Wireless speed up to 1201Mbps
Wireless Solutions for Surveillance
5 kilometers throughput 300Mbps+
160/80/40/20MHz selectable for channel bandwidth
Easy deployment and adjustment with provided mounting kits
Passive POE(24VDC) for flflexible deployment
Weather-proof design for outdoor environment
Up to16kV ESD protection

Radio	802.11a/n/ac/ax radio Wireless Speed up to 1201Mbps Frequency Range: 5.150-5.250GHz 5.250-5.350GHz（Support DFS） 5.470-5.725GHz(Support DFS) 5.725-5.825GHz Tx Power up to 27dbm Rx Sensitivity 300M:-71dBm@10% PER 54M:-75dBm@10% PER 1M:-95dBm@10% PER
Antenna	25dBi dish antenna Beamwidth(HPBW) Horizontal:11°，Vertical:11° Open space 5-15KM
Power	24VDC, 0.75A Power Consuption: 6W
Security	Integrated Firewall WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP;
Interfaces	1x 10/100 Base-T Ethernet (Gigabit LAN with Passive PoE)
LED	Power：On/Off LAN:On/Off/Flashing WLAN:On/Off/Flashing RSSI Signal:1,2,3
Certifification	CE, RoHS
Package content	D525AX Radio 25dBi Dish Quick Setup Guide Power Adapter with Passive PoE Mounting bracket & kits
Dimension	Φ400mm
Wight	2.6kg
Enclosure	Aluminum (Dish)
ESD Protection	16kV
Working Temp	-40 ~ 70°C
Storage Temp	-40 ~85°C
Working Humidity	10%〜95% non-condensing
