Integrated Radio Design

WIS integrated antenna technology integrates the radio into the dish of an antenna, so there is no need for cables to connect the radio to the antenna.
This improves performance because it eliminates cable losses.

Strong antenna reflector

WIS-D525AC is highly hard with die-cast aluminum reflector

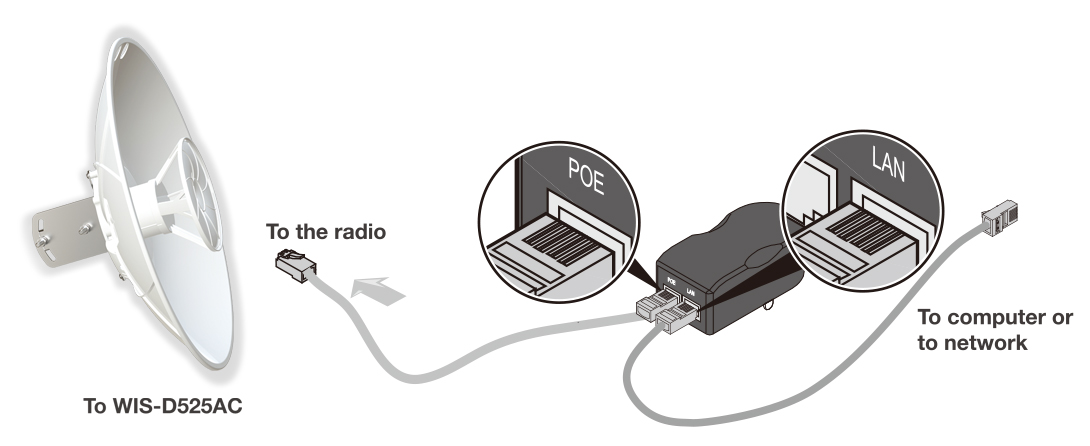

Flexible Passive PoE

The WIS-D525AC is able to be supplied power by a power injector using passive PoE technology which is more cost-effective and make it more flexible
to deploy the device in outdoor environment. The PoE length is up to 200 feet.

Radio	802.11a/n/ac radio Wireless Speed up to 867Mbps Frequency Range: 5.150-5.250GHz 5.250-5.350GHz（Support DFS） 5.470-5.725GHz(Support DFS) 5.725-5.825GHz Tx Power up to 26dbm Rx Sensitivity 300M:-71dBm@10% PER 54M:-75dBm@10% PER 1M:-95dBm@10% PER

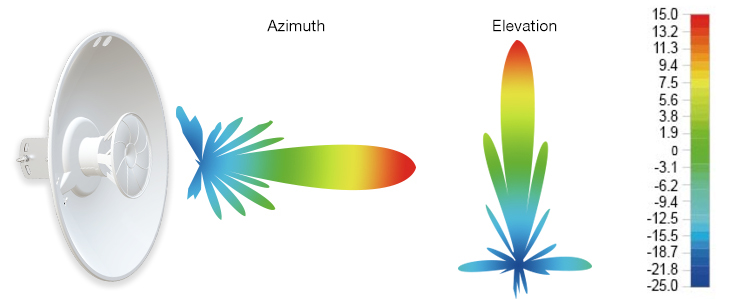

Antenna	25dBi dish antenna Beamwidth(HPBW) Horizontal:11°，Vertical:11° Open space 5-15KM
Power	24VDC, 0.75A Power Consuption: 6W
Security	Integrated Firewall WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP;
Interfaces	1x 10/100 Base-T Ethernet (Gigabit LAN with Passive PoE)
LED	Power：On/Off LAN:On/Off/Flashing WLAN:On/Off/Flashing RSSI Signal:1,2,3
Certifification	CE, RoHS
Package content	D525AC Radio 25dBi Dish Quick Setup Guide Power Adapter with Passive PoE Mounting bracket & kits
Dimension	Φ400mm
Wight	2.6kg
Enclosure	Aluminum (Dish)
ESD Protection	16kV
Working Temp	-40 ~ 70°C
Storage Temp	-40 ~85°C
Working Humidity	10%〜95% non-condensing
