Product Overview

With 25dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the D525 provides excellent beam directivity,
improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 25dBi Outdoor
D525 an ideal choice and cost effective solution for outdoor wireless networking applications.

Incredible Long Range
●  Up to 27dBm Tx Power
●  25dBi MIMO Dish antenna
●  Wireless Speed up to 300Mbps
●  Narrower Beamwidth for noise immunity

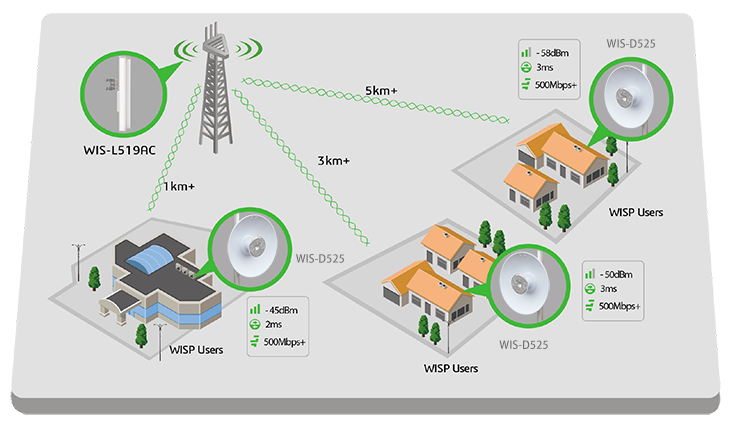

Wireless Solutions for Surveillance

●  Cost-effective passive PoE
●  IP65 Waterproof
●  Multiple mounting methods
●  Extremely Amazing Performance

Full Feature & Performance

●  Full WisOS TDMA Support
●  Auto-Distance Adjust
●  15km+ Availability
●  Fully Managed by WiController

Features and Benefifits

Up to 300Mbps on 5GHz wireless data rates 25dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector,
ideal for long-distance application Excellent beam directivity, improved latency and noise cancellation
Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps D525 stable even in
strong winds Durable IP65 weatherproof enclosure along with 15 kV ESD and
6 kV lightning protection ensures all-weather suitability
TDMA technology improves throughput, capacity and latency performance
Passive PoE supports to allow flexible deployment and convenient installation

Radio	802.11a/n radio Wireless Speed up to 867Mbps Frequency Range: 5.150-5.250GHz 5.250-5.350GHz（Support DFS） 5.470-5.725GHz(Support DFS) 5.725-5.825GHz Tx Power up to 26dbm Rx Sensitivity 300M:-71dBm@10% PER 54M:-75dBm@10% PER 1M:-95dBm@10% PER
Antenna	25dBi dish antenna Beamwidth(HPBW) Horizontal:11°，Vertical:11° Open space 5-15KM
Power	24VDC, 0.75A Power Consuption: 6W
Security	Integrated Firewall WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP;
Interfaces	1x 10/100 Base-T Ethernet (Gigabit LAN with Passive PoE)
LED	Power：On/Off LAN:On/Off/Flashing WLAN:On/Off/Flashing RSSI Signal:1,2,3
Certifification	CE, RoHS
Package content	D525 Radio 25dBi Dish Quick Setup Guide Power Adapter with Passive PoE Mounting bracket & kits
Dimension	Φ400mm
Wight	2.6kg
Enclosure	Aluminum (Dish)
ESD Protection	16kV
Working Temp	-40 ~ 70°C
Storage Temp	-40 ~85°C
Working Humidity	10%〜95% non-condensing
