D523AC

5GHz AC 867Mbps 23dBi Outdoor CPE
CPU
Qualcomm QCA9531+QCN9886
Wireless Standards
802.11ac
Frequency
5150-5850MHz
Channel Width
20|40|80 MHz
Networking interface
1*Gigabit Ethernet
Antenna Gain
23dBi
Dimension
30*40cm
Weight
1.5kg
  • D523AC
  • D523AC
  • D523AC
  • D523AC
  • D523AC
  • D523AC
  • Features

  • Specification

  • In The Box

  • Downloads

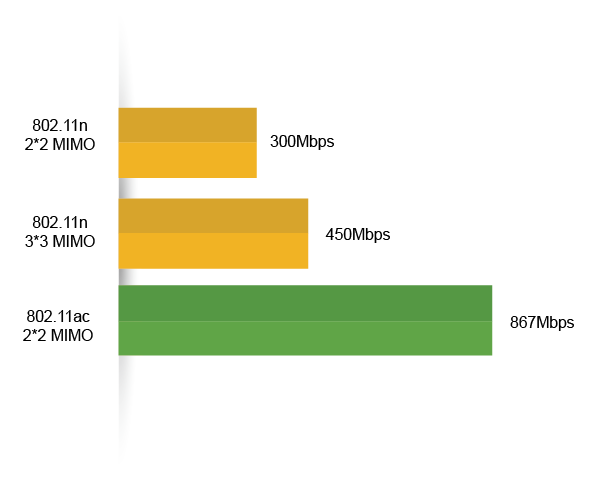

Extremely Amazing Performance
The integrated 2*2 MIMO technology for 867Mbps 5.1GHz makes it 3x speed than legacy 802.11n standard.
 The tx power is boosted up to 26dBm for incredible long distance.

All-in-One Design
The WIS-D523AC has successfully made it with high power radio integrated into a dish antenna feed horn. In this way the
whole system just eliminates the insertion loss from the RF cable and connectors,
making it a highly efficient system along
with extremely smart and powerful all-in-one design.

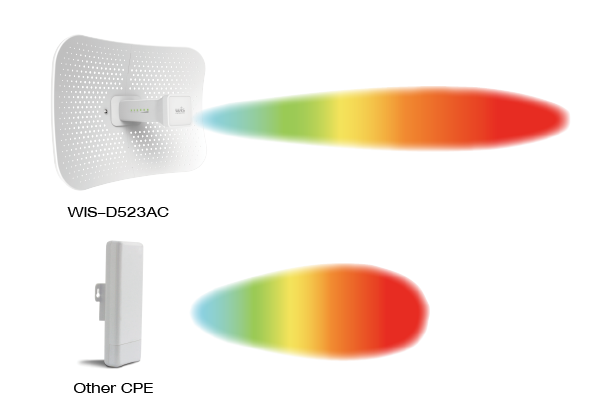

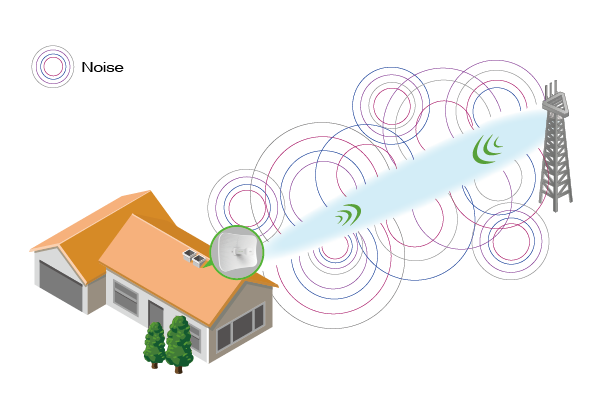

Best Noise Immunity CPE Yet
The dish antenna using in the radio system helps to provide extremely high gain and narrow beamwidth thus making
the signal easy to survive in long range propagation, and increasing system performance.

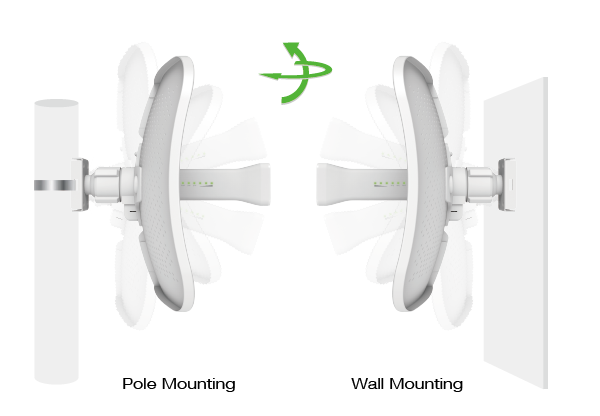

Effortless and Flexible Installations
The WIS-D523AC is using a new-designed mounting kits,
and it is all angles adjustment, effortless
to install on any pole mount or wall mount condition.

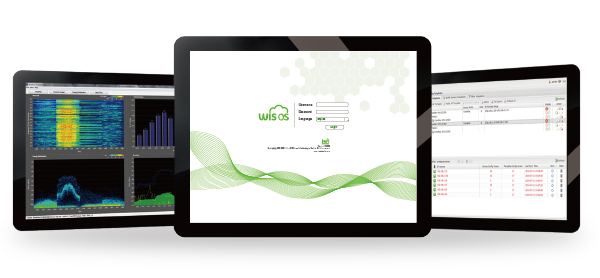

Full Feature & Performance
The 4-year-developed WisOS and intelligent tools provided will help you build a professional
and stable wireless network easily and quickly.




Radio

802.11ac/n/a radio (Atheros 775MHz)

Speed up to 867 Mbps

Frequency Range: 5.150-5.250GHz

5.250-5.350GHz

5.470-5.725GHz

5.725-5.825GHz

Tx Power 27dBm±2

Rx Sensitivity 867Mbps: -67dBm@10% PER

300M: -74dBm@10% PER

54M: -78dBm@10% PER

1M: -98dBm@10% PER

Antenna

23dBi dual-polarized dish antenna

Beamwidth(HPBW) Horizontal: 10°, Vertical: 10°

Open space up to 1~10km (dependent)

Power

24VDC, 0.75A

Power Consuption: 6W

Security

Integrated Firewall

WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP)

Encryption; 64/128-bit WEP;

Interfaces

1x 10/100/1000 Base-T Ethernet

(24VDC Passive PoE)

LED

Power:On/Off

LAN:On/Off/Flashing

WLAN:On/Off/Flashing

RSSI Signal: 1,2,3

Warranty

2 Year

Certifification

CE, RoHS

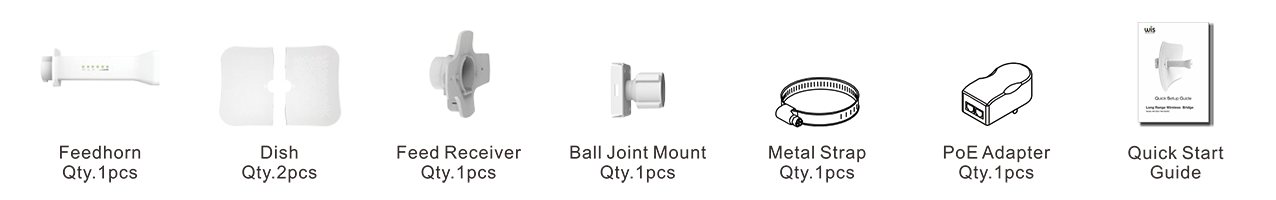

Package content

D523AC Feedhorn Radio

Feed Receiver

Quick Setup Guide

Power Adapter with Passive PoE

Mounting bracket & kits

Dimension

350*270*255mm

Wight

3kg

Feedhorn enclosure

ASA Weatherproof

ESD Protection

16kV

Working Temp

-40 ~ 70°C

Storage Temp

-40 ~85°C

Working Humidity

10%~95% non-condensing
