D523

5GHz AC 433Mbps 23dBi Outdoor CPE
CPU
Qualcomm QCA9531+QCN9887
Wireless Standards
802.11ac
Frequency
5150-5850MHz
Channel Width
20|40|80 MHz
Networking interface
1*10/100Base-T Ethernet
Antenna Gain
23dBi
Dimension
30*40cm
Weight
1.5kg
  • D523
  • D523
  • D523
  • D523
  • D523
  • D523
  • Features

  • Specification

  • In The Box

  • Downloads

Product Overview
WIS-D523 is a 433Mbps outdoor wireless dish bridge for long range point-to-point and point-to-multi-point solutions.
It is the most cost-effective and ultimate solution for WISP CPE, which provides incredible long range much better than any other vendors solution.

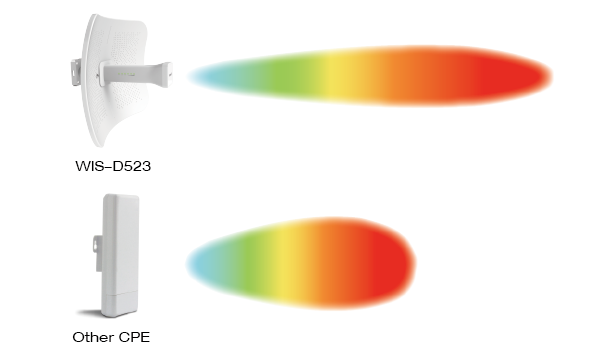

Incredible Long Range

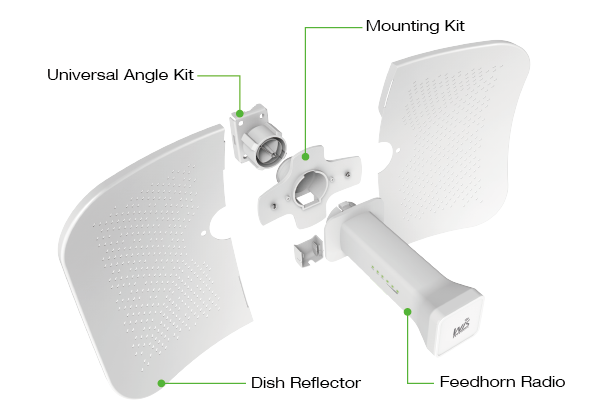

The WIS-D523 has successfully made it with high power radio integrated into a dish antenna feed horn.
In this way the whole system just eliminates
the insertion loss from the RF cable and connectors,
making it a highly efficient system along with extremely smart and powerful all-in-one design.

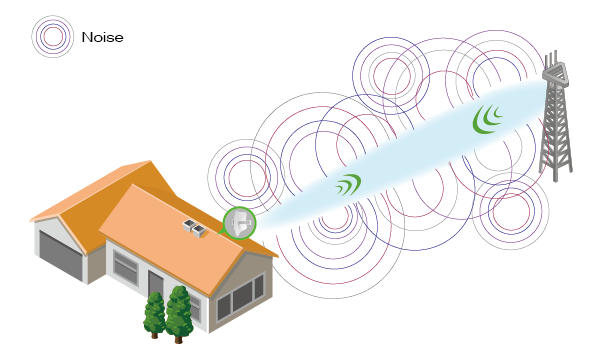

Best Noise Immunity CPE Yet
The dish antenna using in the radio system helps to provide extremely high gain and narrow beamwidth thus making
the signal easy to survive in long range propagation, and increasing system performance.

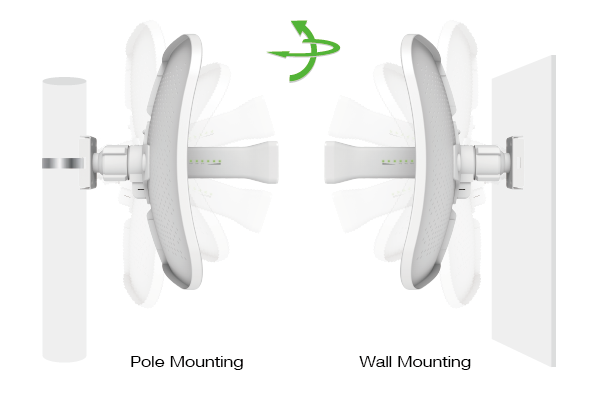

Effortless and Flexible Installations
The WIS-D523 is using a new-designed mounting kits, and it is all angles adjustment,
effortless to install on any pole mount or wall mount condition.

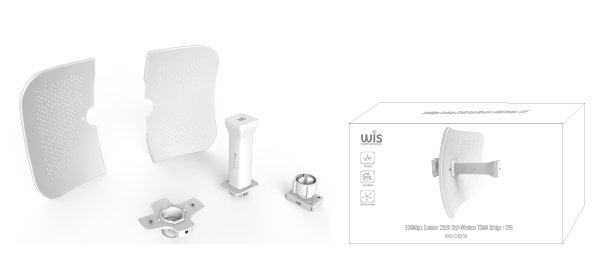

Ingenious Package Design
Color box, small package design like CPEs, the lowest cost for transportation, we think
those are everything you need for a best cost-effective radio.

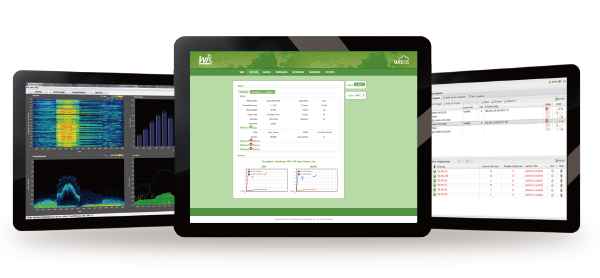

Full Feature & Performance
The 4-year-developed WisOS and intelligent tools provided will help you build a professional and stable wireless network easily and quickly.






Hardware

Wireless standards : 802.11ac/n/a

Wireless Speed up to 433Mbps

CPU: QCA9531+QCA9887

RAM: 64MB

Flash: 16MB

Ethernet:10/100Mbps

Tx Power up to 23dbm

24V Passive PoE

Antenna

23dBi dish antenna

Beamwidth(HPBW) Horizontal:12,Vertical:12°

Open space 5-10KM

Interfaces

1x 10/100 Base-T Ethernet

( LAN with Passive PoE)

Security

Integrated Firewall
WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP)

 Encryption; 64/128-bit WEP;

LED

Power:On/Off
LAN:On/Off/Flashing
WLAN:On/Off/Flashing
RSSI Signal:1,2,3

Power

24VDC, 0.75A

Power Consuption: 8W

Certifification

CE, RoHS

Package content Power Adapter with Passive PoE
Mounting bracket & kits

Dimension

300*400mm

Wight

1.5kg

ESD Protection

8kV

Working Temp

-20 ~ 50°C

Storage Temp

-30 ~60°C

Working Humidity

10%〜95% non-condensing
