AX3000B-5G

5G Indoor CPE
CPU
Qualcomm Snapdragon X62 5G modem Cortex-A53@1.0GHz, Quad-core IPQ5018
Wireless Standards
3GPP Release 16
Frequency
5G SA: 2.4Gbps DL, 900Mbps UL 5G NSA: 3.2Gbps DL, 600Mbps UL 4G DL Cat19 / UL Cat18: 1600Mbps DL, 200Mbps UL
Channel Width
20/40/80/160MHz
Networking interface
1*SIM card slot, 4*Gigabit Ethernet ports 1* Reset
Antenna Gain
2*5dBi
Dimensions
168x85x167mm (not Included Antenna)
Weight
500g
  • AX3000B-5G
  • AX3000B-5G
  • AX3000B-5G
  • AX3000B-5G
  • AX3000B-5G
  • AX3000B-5G
  • Features

  • Specification

  • In The Box

  • Downloads

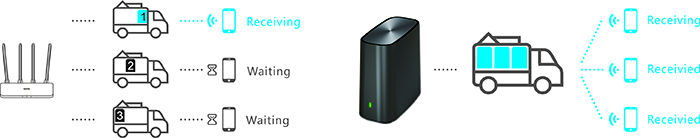

OFDMA + MU-MIMO


A smooth multi-device user experience
OFDMA technology allows data transmission to up to 16 devices simultaneously with low latency,
 for more enjoyable group voice chats or multi-player gaming! MU-MIMO technology enables more
devices to send and receive data at the same time, for lightning-fast speeds whether you're
browsing the web or watching videos online!

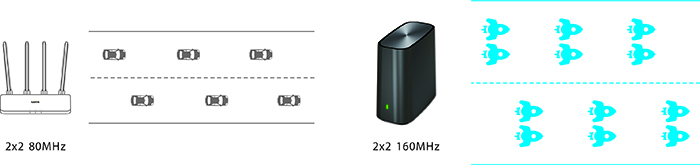

High 160MHz bandwidth

Double the bandwidth, double the speed
If bandwidth is like a motorway, then conventional 80MHz bandwidth is often congested with heavy
traffic.With 160MHz bandwidth, the width of every lane and the theoretical speed are both doubled.
This keeps the motorway from getting congested and gives you a smoother online experience when
downloading games or surfing the Internet.




Accelerate Your Business in Most Environment
Using 5G to bring better broadband to more people

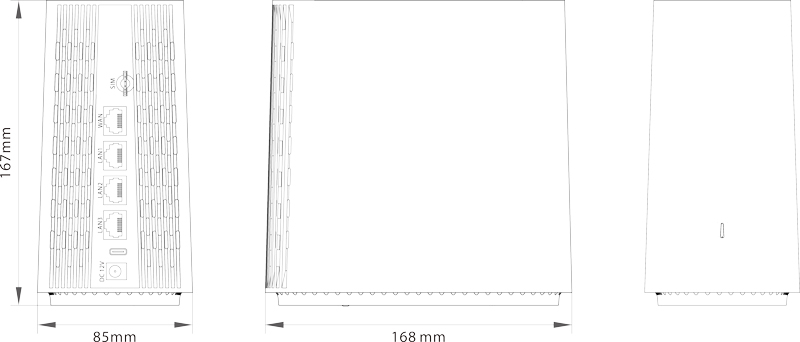

Dimensions (mm)

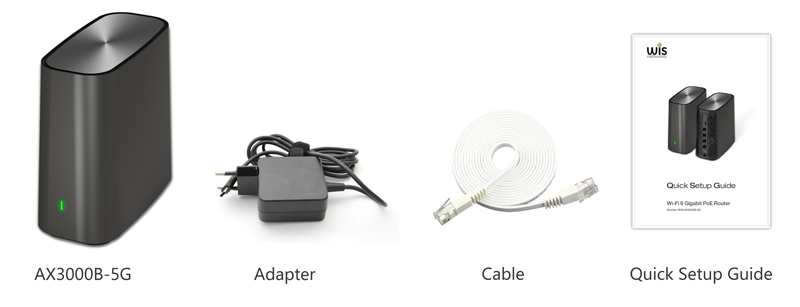

Accessories


Hardware

5G Modem

Qualcomm Snapdragon X62 5G modem

Main Chipset

Cortex-A53@1.0GHz, Quad-core  IPQ5018

Communication Standard

3GPP Release 16

Access mode

5G SA/NSA

4G LTE TDD/FDD

Celluar Data rate

5G SA: 2.4Gbps DL, 900Mbps UL

5G NSA: 3.2Gbps DL, 600Mbps UL

4G DL Cat19 / UL Cat18: 1600Mbps DL, 200Mbps UL

MIMO

4*4

Led Indicator

1pcs

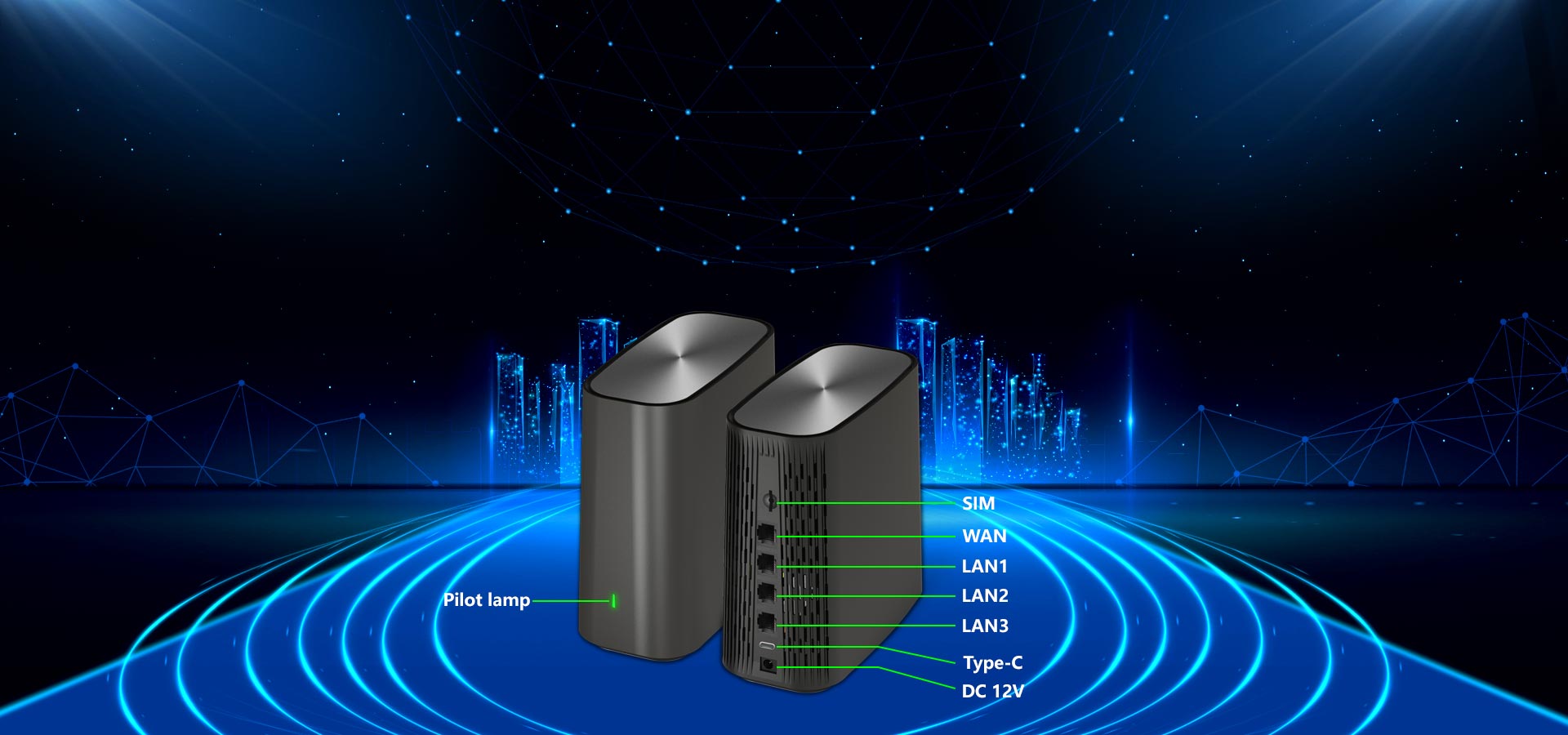

Ports

1*SIM card slot,  4*Gigabit Ethernet ports  1* Reset

Reset button

x 1

WPS button

x 1

Power Supply

12VDC / 2A

Environment

Operating temperature: 0℃ ~ 40℃

Storage temperature: -20℃ ~ 70℃

Humidity: 5% ~ 95% (non-condensing)

Wi-Fi Specification

Wi-Fi CPU

QCN6102

WLAN standard

IEEE 802.11a/n/ac/ax

2.4GHz Wi-Fi

2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 574Mbps)

5GHz Wi-Fi

2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)

Dual-band

2.4GHz, 5GHz

Channel Bandwidth

20MHz, 40MHz, 80MHz, 160MHz

Modulation

11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)

11a/g:OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps), 4QAM(48/54Mbps)

11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.256QAM.

11ac:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.

11ax:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM

Antenna Gain

2*5dBi

Physical Properties

Product color

Black

Dimensions

167x168x85mm

Weight

500g

Operating Temperature

0~+40℃

Storage Temperature

-20~+70℃

Humidity

95% (No-condensing)


Software

Language

Chinese, English,Spanish,Korean,Russian,Portuguese,Hebrew

Network settings

Dynamic IP mode, PPPoE mode, static IP mode, default dynamic IP

Mobile connection

5G/4G/3G Mode, search operator,

local area network

DHCP settings, the default LAN address is 192.168.1.1/24

WiFi settings

WiFi switch, name, password, protocol, bandwidth, channel, hidden

Black and white list

Add (can be imported from user list), delete, move black and white list

WPS

PIN code access, PBC access

Band Lock

Lock 5G/LTE connect band

PCI Lock

Lock 5G/LTE connect cell

APN

The relevant information of APN will be automatically adapted according to the inserted SIM card

AT Command

WebGui integrated AT Command interface, you can query and configure module parameters by input AT Command

VPN client

There are two main types of VPN client configuration: PPTP and L2TP

SMS

Plug in a usable SIM card, you can realize the functions of sending short messages and receiving short messages

Port Mapping

Open the local port service so that users can access the internal private network from the Internet

MAC filtering

Set access and forwarding rules based on MAC

IP filtering

Set access and forwarding rules based on IP

DDNS

DDNS maps a user's dynamic IP address to a fixed domain name resolution service, so that users can directly access it through the domain name

SMNP

Managed device through SNMP. Support SNMPV1,SNMPV2

TR069

The management server in the network management model defined by the TR069 protocol is called an automatic configuration server (ACS), and is responsible for the management of user terminal equipment (CPE). The ACS server can restart, reset, and upgrade CPE according to the TR069 protocol, which can realize the function of managing multiple routers

change Password

Change the login Password

Backup, upgrade

Download the backed up configuration, upload the backed up configuration,

upgrade firmware

Reboot, Reset

Contains immediate reboot and reset to factory
