Hardware |
|
|
Modem |
Qualcomm Snapdragon X62 5G modem |
|
CPU |
Cortex-A53@1.0GHz, Quad-core IPQ5018 |
|
Applicable Network |
5G/4G |
|
Standard |
3GPP Release 16 |
|
Network Mode |
NSA&SA |
|
MAX Download Rate |
3.4 Gbps |
|
Antenna Frequency |
698-3800MHz |
|
Antenna Gain |
5dBi |
|
MIMO |
4*4 |
|
Led Indicator |
1xWiFi ,4xSignal strength |
|

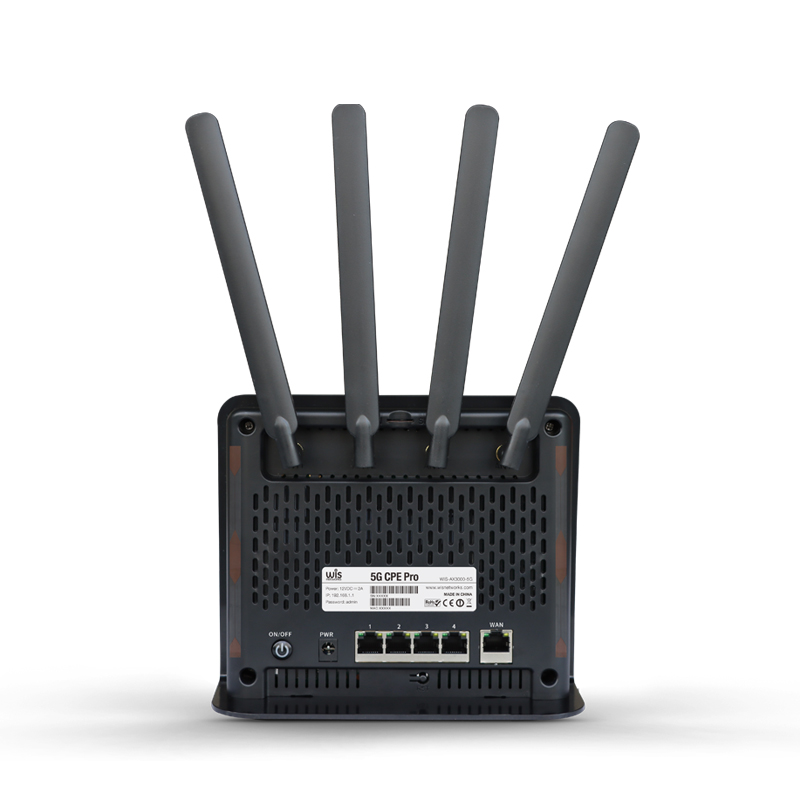

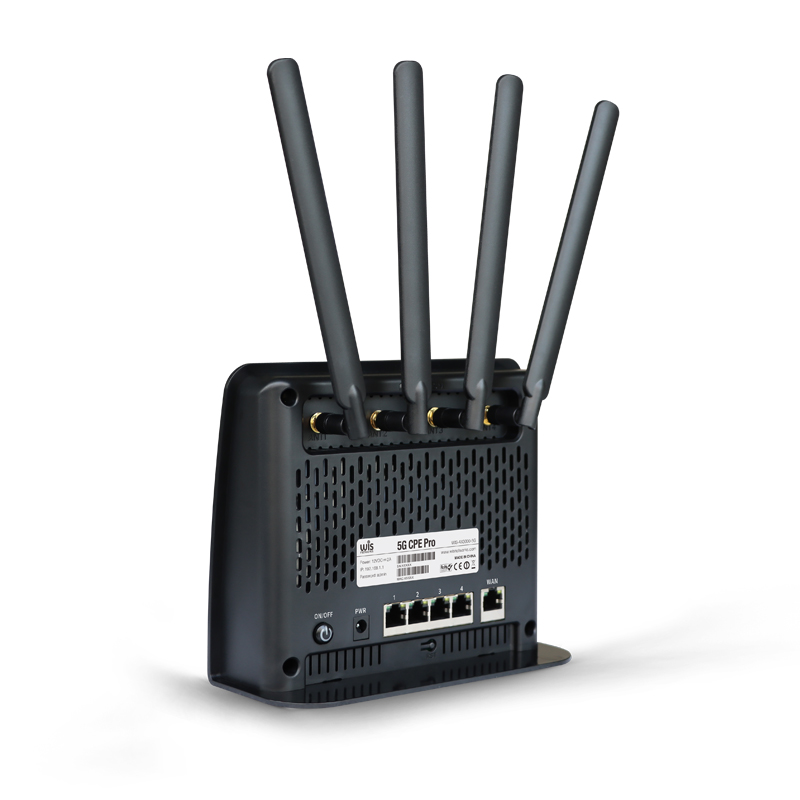

Ports |
1*SIM card slot, 1*2.5 Gigabit +4*Gigabit Ethernet ports 1* Reset |
|
Power Supply |
12VDC / 2A |
|
Environment |
Operating temperature: 0℃ ~ 40℃ Storage temperature: -20℃ ~ 70℃ Humidity: 5% ~ 95% (non-condensing) |
|
Wi-Fi Specification |
|
|
Wi-Fi CPU |
QCN6102 |
|
WIFI Protocol |
IEEE802.11 a/b/g/n/ac/ax |
|
Frequency |
2.4GHz+5GHz |
|
Theoretical Maximum Bandwidth |
2.4GHz 2x2MIMO 11ax,574 Mbps 5GHz 2x2 MIMO 11ax,2402Mbps |
|
Channel Bandwidth |
20MHz, 40MHz, 80MHz, 160MHz |
|
Antenna Gain |
2*5dBi |
|
Physical Properties |
|
|
Shell |
ABS Material |
|
Dimensions |
184x70x152mm (not Included Antenna) |
|
Weight |
500g |
|
Operating Temperature |
0~+40℃ |
|
Storage Temperature |
-20~+70℃ |
|
Humidity |
95% (No-condensing) |
Modem Information
|
Model |
AX3000-5G(EU) |
AX3000-5G(GL) |
|
Suitable area |
EMEA,Australia,Japan,Korea |
Global |
|
Frequency Band |
5G SA&NSA: N1/3/5/7/8/20/28/38/40/41/71/77/78/79 LTE-FDD: B1/3/5/7/8/18/19/20/28/32 LTE-TDD: B34/38/39/40/41/42 WCDMA: B1/5/8 |
5G SA&NSA: N1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 LTE-FDD：B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/26/ 28/ 29/ 30/ 32/ 66/ 71 LTE-TDD：B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 LAA：B46 WCDMA：B1/ 2/ 4/ 5/ 8/ 19 |
Order Model
|
Models |
Description |
|
AX3000-5G (EU Version) |
Cellular (5G NR), AX3000 WIFI, 1*SIM+1*2.5 Gigabit +4*Gigabit Ethernet ports |
|
AX3000-5G (Global Version) |
Cellular (5G NR), AX3000 WIFI, 1*SIM+1*2.5 Gigabit +4*Gigabit Ethernet ports |
