Product Overview

The WIS-AC1200-POE is a 2.4/5GHz 1200Mbps 4x4 MIMO PoE Router based on 802.11 ab/g/n/ac technology,
its 4*5dBi High gain antennas design wall penetration Wi-Fi. Its WAN port support 24V Passive PoE Output.

The router provides PoE power to outdoor devices through the Ethernet connection,
thus the outdoor device needn't separate power connection or adaptor .

Features

● 1000 Mbps WAN with 24V PoE output

● 2*1000 Mbps LAN port

● IEEE 802.11b/g/n/ac Wi-Fi

● dual-band 2.4 GHz and 5 GHz

● 4*5dBi High gain antennas
● Switch: Off/Router/POE

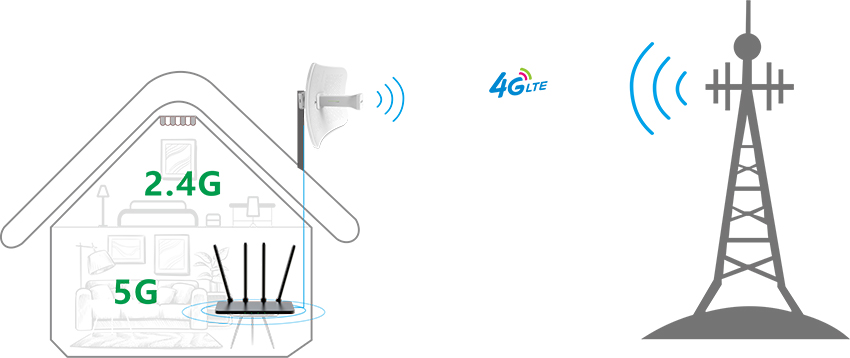

Typical Applications

Model	AC1200-POE	AC1200
Processor	MT7621
Standard	IEEE 802.11b/g/n/ac
Memory	128MB
Flash	16MB
Frequency	2.4 GHz and 5 GHz dual-band
Channel Bandwidth	20 MHz, 40 or 20 MHz, 40 MHz, 80 MHz
WAN Port	1*10/100/1000 auto-sensing, auto-MDX
PoE Output	24V DC PoE / 1A
LAN Port	2*10/100/1000 auto-sensing, auto-MDX
Power Supply	Input: Universal range 100V-240V AC
Switch	Off/Router/POE
Reset Button	Press for 10 seconds to restore the router to its factory settings
LEDs	Power/SYS/POE
Peak Rate	802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 300 Mbps 802.11ac: 866 Mbps
Sensitivity	-64 dBm @ 65 Mbps, typical for 802.11n/ac -65 dBm @ 54 Mbps, typical for 802.11g -76 dBm @ 11 Mbps, typical for 802.11b
Transmit Power	20±3 dBm
Antenna	Internal 5dBi omni, 4T4R
Active Users	64
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certification	CE, RoHS
